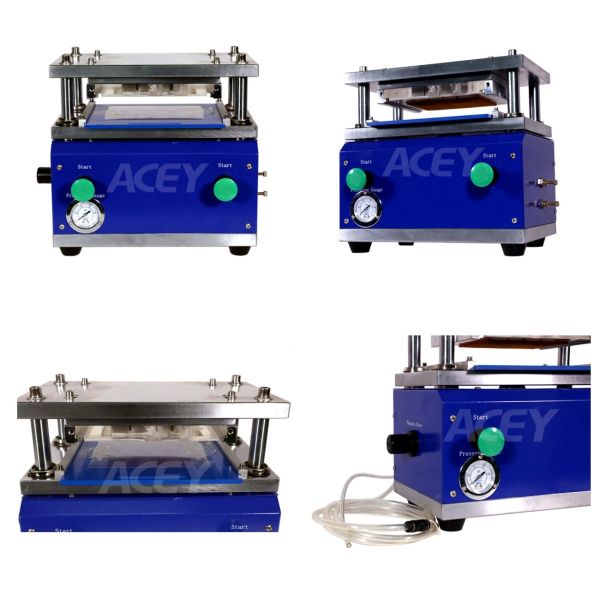

Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine
Specifications
Model Number :
ACEY-HDC-1
Price :
USD 1970~2053/Set
Punching size :
L85mmxW65mm（customized）
Punching accuracy :
±0.1 mm
Pressure :
Max. 1T
Die cutting stroke :
35mm
Dimensions :
L350mm*W230mm*H300mm
Equipment weight :
About 32KG
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

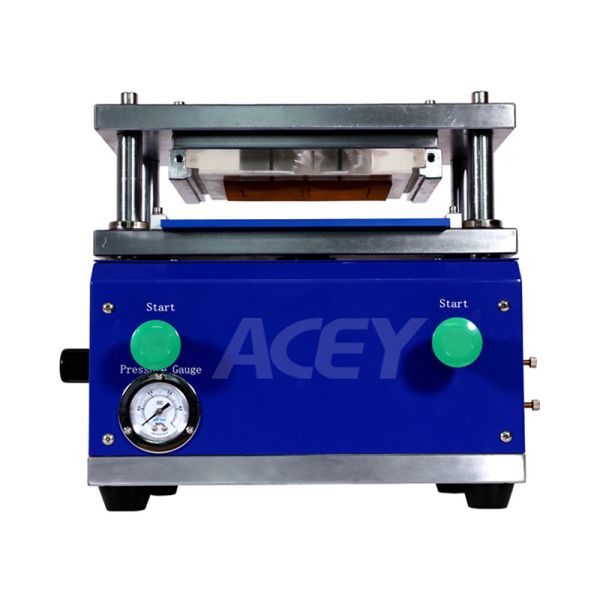

Pneumatic Lithium Battery Electrode Sheet Die Cutter Cutting Machine

Product Description

ACEY-PDC-1 die cutting machine is suitable for die-cutting and forming of battery positive and negative plates. The single-piece die-cutting of the plate-type pole piece is pneumatically used, and it can be placed in a glove box for use.

Features

*Slice-type pole piece feeding, the knife template realizes die cutting, can be used in the glove box;
*It is convenient and quick to change the knife mold;
* Long tool life, normal use ≥ 30,000 times;
* There are no quality defects such as burrs, powder falling, and indentation;
*Using four guide pillar structure, sliding up and down smoothly and high precision;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*Easy to operate, safe and reliable, small size;
*Vertical burr≤12μm, horizontal burr≤20μm
*Long tool life, normal use ≥ 30,000 times;

Specification

Punching size: L85mmxW65mm (can be customized according to customer requirements);
Punching accuracy: ±0.1 mm
Punching pressure: Max. 1T (0.5MPa compressed air), the recommended pressure for punching battery pole pieces is 500Kg;
Die cutting stroke: 35mm;
Compressed air: 0.5MPa compressed air, if put in the glove box, the gas used is the same as the glove box;
Dimensions: L350mm*W230mm*H300mm;
Equipment weight: 32kg
