Specifications
Brand Name :
ACEY
Model Number :
ACEY-SM200
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3400~3545/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Hot pressing area :
200mmx200mm
Power :
1.5 KW
Working voltage :
AC220V/50Hz
Pressure :
1T pressure adjustable
Body size :
L350xW320xH550mm
weight :
About 80Kg
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

Electric Li Ion Battery Heat Pressing Shaping Machine For Pouch Cell

Product Description

ACEY-SM200 the equipment is mainly designed for the hot‑pressing and shaping of wound battery cells before casing. The wound cell is placed on a template where pressure and heat are applied to achieve uniform thickness, reduce elasticity, lower the risk of internal short circuits, and ensure consistent final cell dimensions.

Product Features

*The temperature of the work surface can be adjusted by the temperature controller panel button. The current value and the set value of the set temperature can be displayed on the LCD display, which is intuitive and clear, high temperature control accuracy, and easy to operate;
*The pressure of the upper and lower working table can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;
*This machine adopts a single station structure, the upper and lower worktable panels are highly parallel, and the structure is stable and reliable;
*The work surface is made of high-quality materials, with good heat transfer effect, saving power consumption and improving work efficiency;
*Use light curtain protection device, safe to use;
*This machine has a temperature abnormal alarm function;
*Heat pressing time, temperature and pressure can be adjusted;
*This machine adopts automatic and semi-automatic control, easy to operate;
*Small size, can save space;
*Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*Electric control can be used for automatic operation during operation, and manual function can be used during debugging;

Product Parameter

Power supply AC220V/50Hz;
Power 1.5 KW;
Air source 0.5Mpa～0.8Mpa
Hot pressing area 200mmx200mm
Pressure 1T pressure adjustable;
Temperature control accuracy ±2℃;
Heating temperature adjustable from room temperature to 250℃;
The plane parallelism of the two pressure plates within 0.05
Equipment weight about 80Kg
Dimensions L350xW320xH550mm

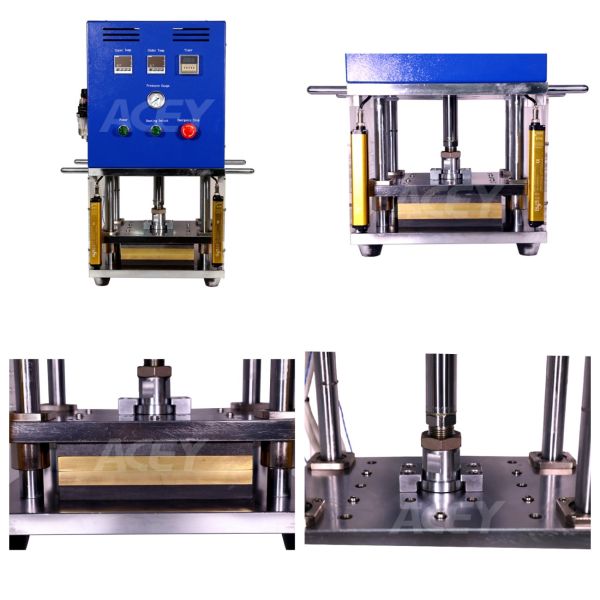

Product Display
