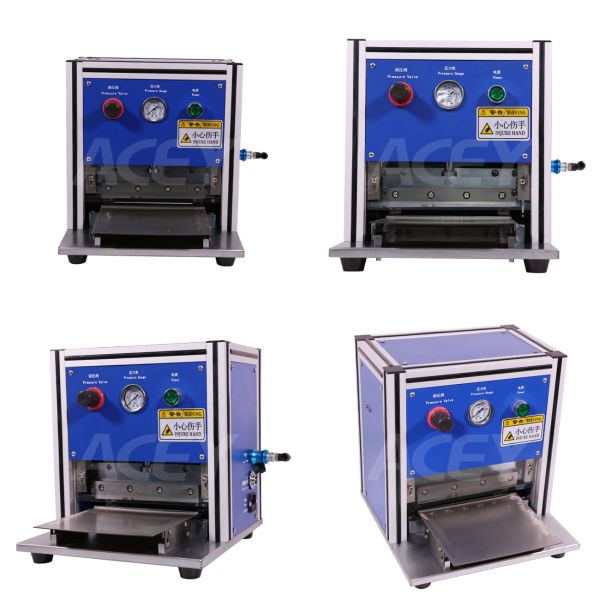

Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
Specifications
Model Number :
ACEY-PCM200
Price :
USD 1450~1511/Set
Cutter length :
300mm
Cutting width :
2～10mm margin can be adjusted
Speed :
Air pressure 600 times/hour
Power supply :
AC220V/50Hz
Dimensions :
L325x W200x H350mm
Weight :
45kg
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine

Product Description

ACEY-PCM200 The equipment is primarily designed for trimming and shaping the aluminum‑plastic film used in soft‑pack lithium‑ion batteries, and can also be applied to cutting other flexible materials.

Product Features

*Shangyin linear slide rail group is used for guiding, with high guiding precision to ensure zero clearance between upper and lower cutters and long service life;
*The upper and lower cutters are made of high-speed steel, with sharp blades;
*Built-in pressure gauge, can observe and accurately control the size of trimming pressure;
*The cylinder controls the cutter to trim the battery edge, which is easy to be automated, and the trimming width can be adjusted;
*The trimming air pressure and speed can be set and adjusted;
*Set the product positioning tray to facilitate the positioning and placement of the battery;
*Adopt foot pedal operation switch, which is reliable, convenient and fast;
*The frame is assembled with profiles and baking varnish sealing plates, the equipment structure is simple, compact, and the appearance is exquisite and beautiful;

Product Parameter

Cutter length:

300mm

Cutting width:

2～10mm margin can be adjusted

Cutter life:

10 million times/grinding

Speed:

Air pressure 600 times/hour

Power:

AC220V/50Hz

Power:

100W

Air compressed air source:

0.5Mpa～0.7Mpa

Dimensions:

L325x W200x H350mm

Equipment weight:

45Kg

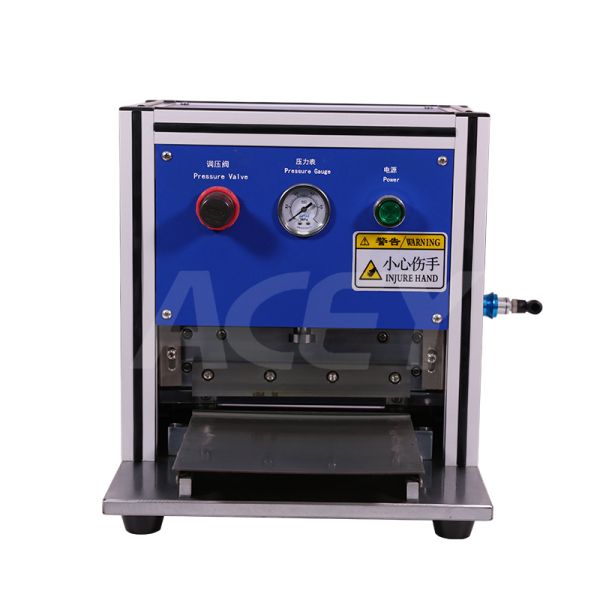

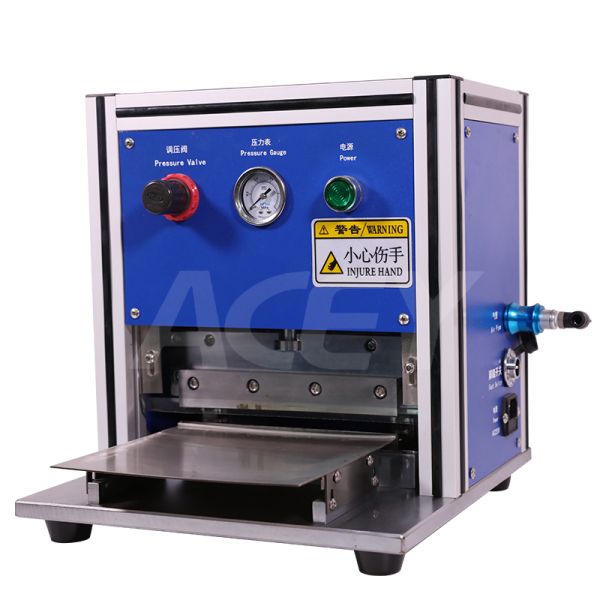

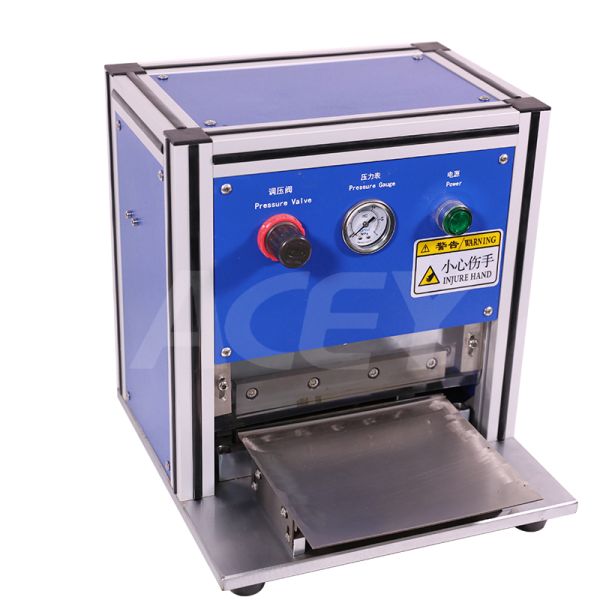

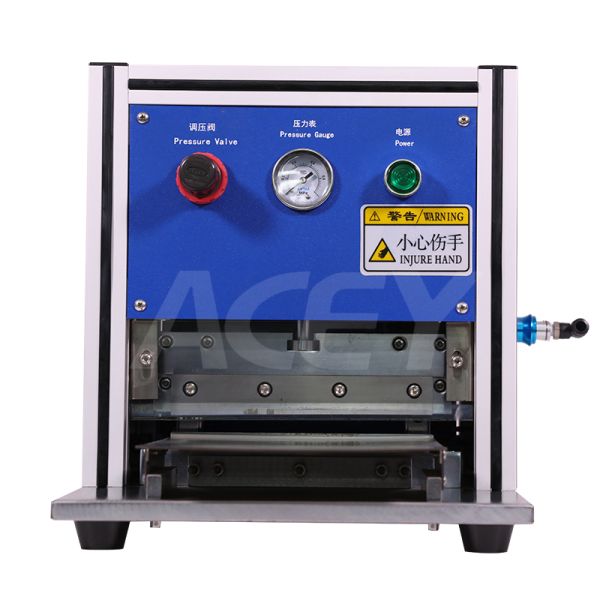

Product Display

Pneumatic Pouch Cell Aluminum Plastic Film Edge Cutting Trimming Machine
