Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-HS200-1
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 1450~1511/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
seal length :
200mm
Seal width :
standard 5mm
sealing thickness :
60～300um
Heat sealing temperature :
room temperature ~ 250℃
size :
L435x W335x H485mm
weight :
About 40Kg
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

Lithium Battery Heat Sealer Pouch Cell Top&Side Sealing Machine

Product Description

ACEY-HS200-1 the equipment is mainly used in heating type sealing equipment on the top and side of soft packaging lithium-ion batteries. The device uses resistance heating to seal the head, so that the aluminum-plastic film can be melted under a set pressure.

Product Features

*Unique safety protection and anti-scalding design, the temperature of the upper and lower irons can be adjusted through the button on the thermostat panel;
*The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;
*The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;
* The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately to ensure the parallelism requirements of the product after edge sealing;
*It can be applied to the product batteries of different specifications, and the adjustment is simple and convenient, without adjustment and replacement of the seal head;
*The frame is made of aluminum profile, which has a beautiful appearance; the sheet metal adopts three-dimensional geometric design, which is simple and beautiful;
*Small size, smooth and even seal marks, beautiful appearance of the edge seal; soft package heat sealing machine equipment

Product Parameter

The longest seal length 200mm
Air bag side width 15~90mm
Seal width standard 5mm±0 4 (3～10mm optional), the sealing knife can be replaced to seal other widths
Side sealing thickness 60～300um (depending on the thickness of aluminum plastic film)
The sealing thickness of the top pole ear 200～700um (depending on the thickness of the aluminum plastic film)
Heat sealing temperature room temperature ~ 250℃ (temperature can be set freely)
Temperature control accuracy ± 2℃
Main body to heat sealing edge 1~5±0 4mm adjustable
Packing time standard 2S-3S (0-99s adjustable)
Seal thickness accuracy (mm) package thickness difference between any two points <15um
operation functions automatic and manual
Compressed air 5～8kg/cm2
Pneumatic working speed ≥400 times/hour
Power AC220V/50Hz Power 0 5KW
Dimensions L435x W335x H485mm
Equipment weight 40Kg

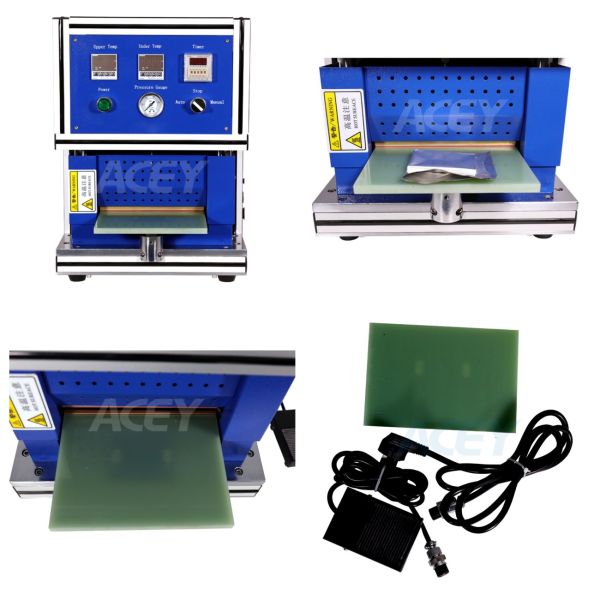

Product Display

Lithium Battery Heat Sealer Pouch Cell Top Side Sealing Machine
