100V 30A Charge 300A Discharge Lithium Ion Battery Comprehensive Tester Performance Analysis System

Product Description

ACEY-BIT100-30A300A can be used to test Battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharging current, continuous discharging voltage, charging overcurrent protection current, discharging overcurrent protection current, short circuit protection time, overcurrent delay time, post-test voltage.The device uses infrared scan barcode input (SN) to start the test or detects voltage to start the test automatically. Application:All li-ion battery with the port of CH+ P+ CH- P- .

Testing items

1.Voltage: No-load voltage and Short circuit protection voltage after the test is completed, Range:0-100V
2.Internal Resistance: ACIR1000hz, Range: 0-4000mΩ
3.Charging overcurrent protection current, Range: 0-30A
4.Continuous charging current, Range: 0-30A
5.Continuous charging voltage monitoring, Range:0-100V
6.Discharge overcurrent protection current and delay time, Rang of current: 0-300A, Overcurrent maximum power 30KW.Overcurrent test mode: (1) Step test (2) quick test.

7.Continuous discharge current, Range: 0-300A
8.Continuous discharge voltage judgment, Range:0-100V
9.Short circuit protection time: ≤1000μ, Max Short circuit current about 5000A

10.Single cell voltage monitoring

11. Appreciation of charge and discharge voltage

12.During the working test, if the power supply is cut off and the MOS tube of the protection board is turned off, no inrush current will be generated, and the protection board of the lithium battery pack will not be damaged.

13.Support MES system

14. Database: The software comes with a database, which can generate excel tables.

15. Step-by-step mode: the test sequence can be adjusted automatically.

16. Support chassis expansion.

Tech Parameter

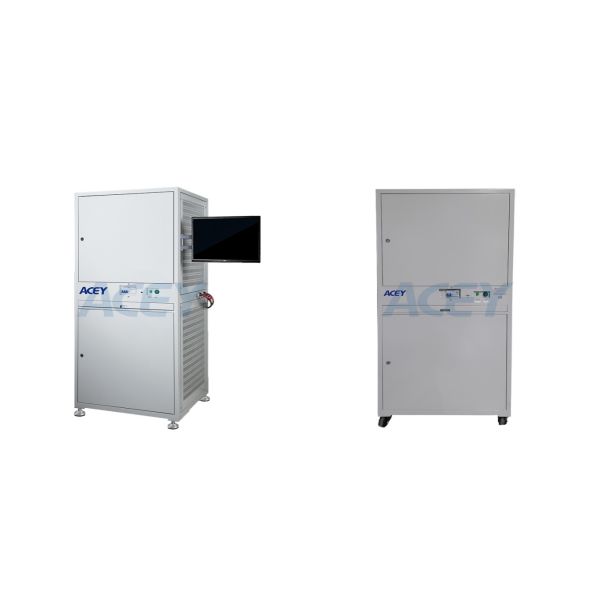

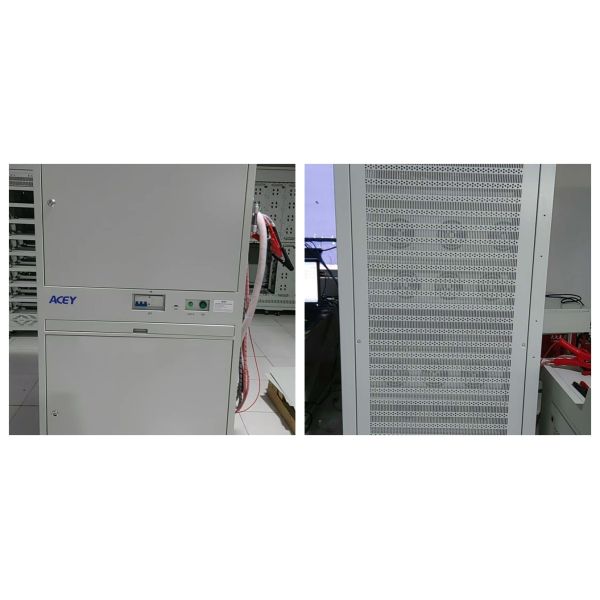

Product Display
