100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine
100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine
100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine
100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine
100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine
100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine
100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine
100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-BIT100-100A200A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2280~14580/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Voltage Range :
0~100V
Charging Current :
0~100A
Discharging Current :
0~200A
Current Resolution :
0.001A
Current Accuracy :
±(0.1% RD + 0.1 FS)
Input Power Supply :
AC 200~240V 50/60HZ
Description

100V 100A Charge 200A Discharge Lithium Battery Pack Comprehensive Testing Machine

Product Description

ACEY-BIT100-100A200A battery comprehensive testing machine is used for comprehensive performance inspection of lithium-ion battery packs during both in-process and final production stages. It is suitable for energy storage modules, electric vehicle batteries, scooter batteries, AGV batteries, and garden tool batteries, covering all series of power batteries equipped with CH+, P+, CH−, and P− terminals. The system can also operate as an electronic load, allowing long-duration current load testing of battery packs under stable and controlled conditions.

System Functions

1 Step-by-Step Test Mode Test functions can be freely rearranged to customize the test sequence.
2 Quick Test Mode Allows rapid editing and execution of test programs for fast testing.
3 Data Storage Test data can be stored according to customer requirements: by day, month, batch, individual data, or by test program, with flexible storage options.
4 MES System Support Compatible with customer MES systems for production data integration.
5 Test Start Conditions Tests can be started manually, automatically, or via barcode scanning.
6 Battery Model Storage Can save multiple battery model test programs for repeated use.

Test Items

  1. Voltage (0–100 V): Measures open-circuit voltage and post-test voltage, including after short-circuit protection.
  2. Internal Resistance (0–4000 mΩ): AC internal resistance measured at 1000 Hz.
  3. Charge Overcurrent Protection (0–100 A) & Delay (0–10 s): Checks battery’s automatic protection during overcurrent and measures activation time.
  4. Continuous Charge Current & Voltage Monitoring (0–100 A / 0–100 V): Maintains safe charging and monitors voltage limits.
  5. Discharge Overcurrent Protection (0–300 A) & Delay (0–10 s): Tests battery protection under excessive discharge current.
  6. Continuous Discharge Current & Voltage (0–200 A / 0–100 V): Verifies normal discharge performance and voltage limits.
  7. Short-Circuit Protection (up to 10 kA): Measures PCB response time to short circuits (typically <1000 μs).
  8. Individual Cell Voltage Monitoring (optional, up to 24S): Tracks each cell dynamically during charge/discharge.Charge/Discharge Voltage Rise & Drop (0–100 V): Calculates voltage changes during charge and discharge.
  9. Charge/Discharge DC Internal Resistance (0–4000 mΩ): Derived from voltage changes and set currents.
  10. Identification Resistor (0–100 kΩ): Measures ID and NTC resistor values.
  11. Secondary Discharge Overcurrent & Delay (0–200 A / 0–10 s): Additional protection verification.
  12. Communication Test (optional): Supports RS485, RS232, CAN, and other protocols.
  13. Insulation & Withstand Voltage Test (optional): Checks battery insulation and dielectric strength.

Main Technical Parameter

Voltage Total Voltage 0–100 V 0.1 mV ±0.1% RD + 0.1% FS
Internal Resistance AC Internal Resistance 0–4000 mΩ 0.001 mΩ ±0.1% RD + 0.1% FS
DC Charge Internal Resistance 0–4000 mΩ 0.001 mΩ ±0.1% RD + 0.1% FS
DC Discharge Internal Resistance 0–4000 mΩ 0.001 mΩ ±0.1% RD + 0.1% FS
Charge Static Voltage 0–100 V 0.1 mV ±0.1% RD + 0.1% FS
Charge Current 0–100 A 0.001 A ±0.1% RD + 0.1% FS
Charge Time 10 s – –
Charge Voltage 0–100 V 0.1 mV ±0.1% RD + 0.1% FS
Charge Delay 0–10 s 1 ms ±0.1% RD + 0.1% FS
Charge Power 10 kW – –
Discharge Static Voltage 0–100 V 0.1 mV ±0.1% RD + 0.1% FS
Loaded Voltage 0–100 V 0.1 mV ±0.1% RD + 0.1% FS
Discharge Current 0–200 A 0.001 A ±0.1% RD + 0.1% FS
Discharge Time (200 A) 10 s – –
Overcurrent Delay 0–10 s 1 ms ±0.1% RD + 0.1% FS
Discharge Power 20 kW – –
Short-Circuit Short-Circuit Time 0–2000 μs 1 μs ±0.1% RD + 0.1% FS
Resistance NTC 0–100 kΩ 0.001 kΩ ±0.1% RD + 0.1% FS
Identification Resistor 0–100 kΩ 0.001 kΩ ±0.1% RD + 0.1% FS

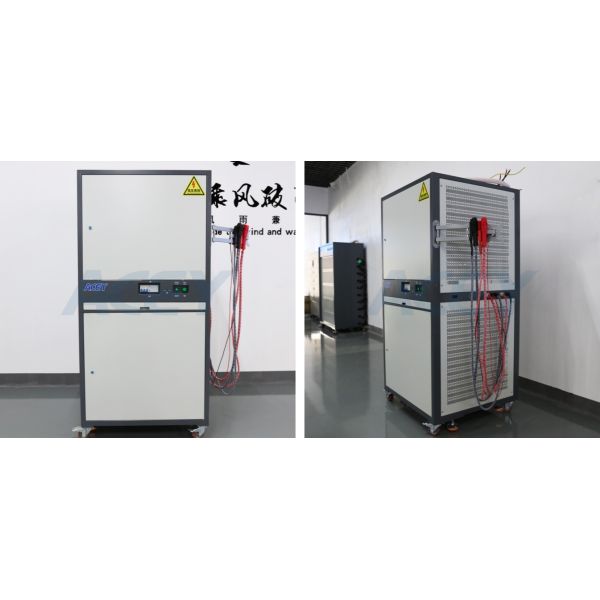

Product Display
