Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Specifications
Packaging Details :
Plywood Case
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union
The operating force of the hand rocker :
less than 6kg
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Structural material :
high-strength chromium steel
Place of Origin :
China
Model Number :
ACEY-CBS-1
Brand Name :
ACEY
Certification :
CE
Price :
USD 2150 /Set
Supply Ability :
200 Sets/Month
Drive method :
Using hydraulic drive
The pressure gauge of the normal cylindrical battery packaging pressure :
80～100kg/cm2
Warranty :
1 Year Warranty With Lifetime Support
Description
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Product Overview

The ACEY-CBS-1 is primarily designed for research sealing of cylindrical batteries and capacitors during sample preparation in laboratory material R&D, and it also supports small-scale trial production in factory settings.

Product Features
  • Built-in safety overflow oil valve allows pressure adjustment as needed, with upper pressure limit setting to prevent damage from excessive pressure
  • Built-in pressure gauge enables observation and precise control of sealing pressure
  • Hydraulic drive provides up to 8T pressure, ensuring vibration-free and leak-free battery sealing
  • Specially designed hydraulic structure makes operation labor-saving
  • Precision mold design ensures accurate and reliable sealing formation with solid steel structure for stable, safe use
  • Compact size and user-friendly design allows placement and operation inside a glove box
  • Additional benefits include attractive appearance, easy maintenance, small footprint, convenient operation, and accurate forming results
Technical Parameters
The operating force of the hand rocker less than 6kg
The pressure gauge of the normal cylindrical battery packaging pressure The machine has been set at about 80～100kg/cm² before leaving the factory. For special circumstances requiring more pressure (pressure 200kg/cm² is about 8 Tons of pressure), adjustment can only be made after consulting the manufacturer.
Mold material imported from Japan
Structural material High-strength chromium steel, the surface will never rust after environmental protection plating and spraying
Dimensions 240mm * 195mm * 265mm
Weight 50kg

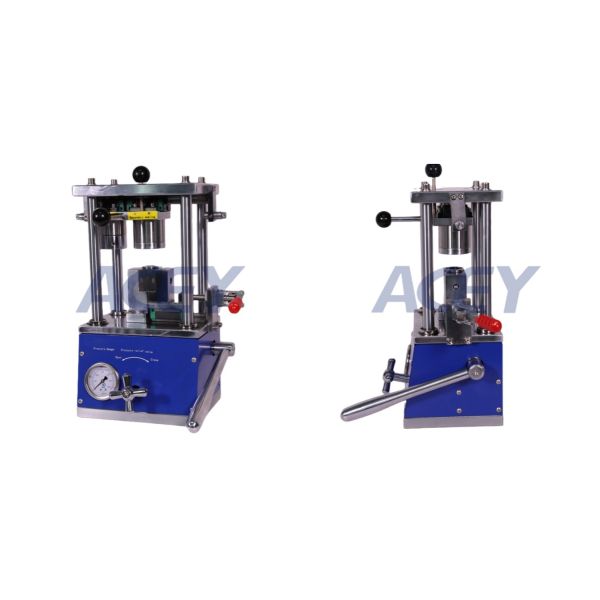

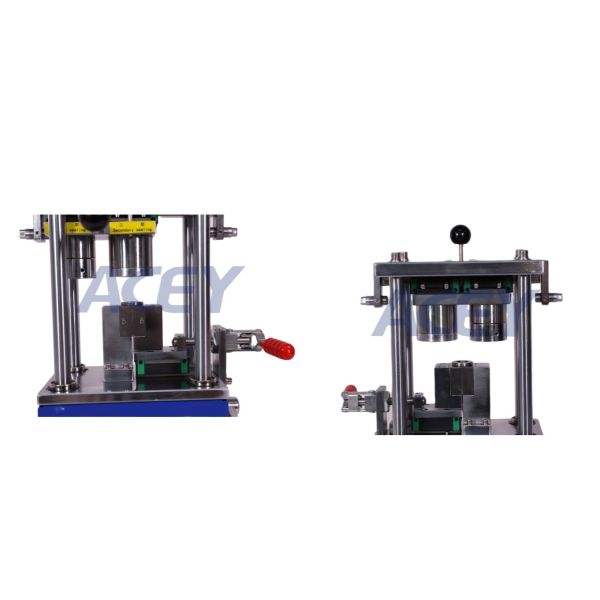

Product Display
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
Compact Manual Hydraulic Battery Sealer For 18650 21700 Cylindrical Cells
