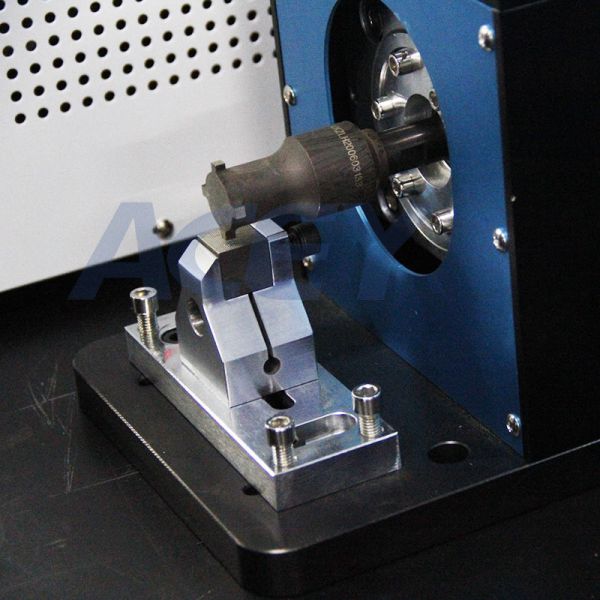

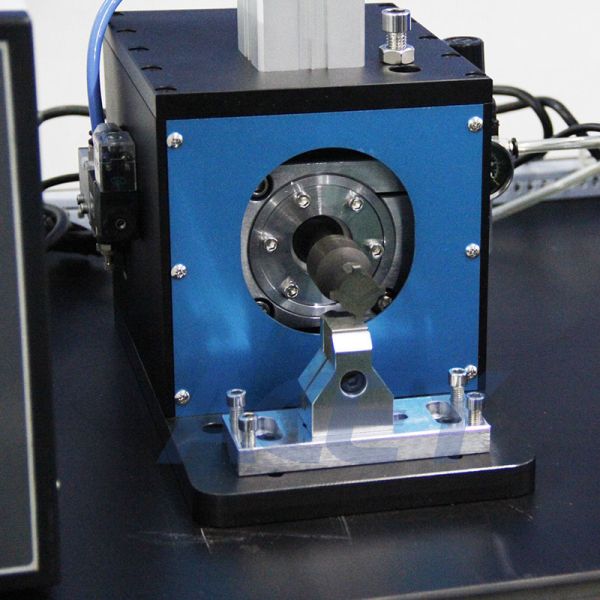

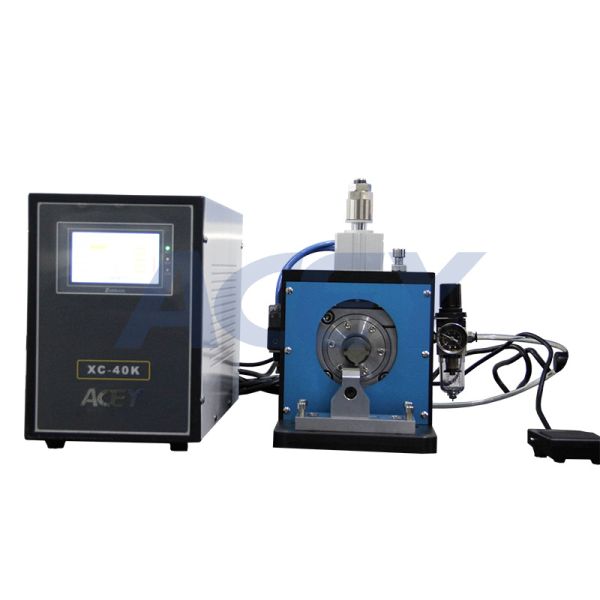

Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Specifications
Model Number :
ACEY-USW-1
Ultrasonic frequency :
40KHz (automatic tracking)
Certification :
CE
Delivery Time :
7~35 Days
Warranty :
1 Year Warranty With Lifetime Support
Payment Terms :
T/T,PayPal,L/C,Western Union
After-sales Service :
24/7 Technical Support
Packaging Details :
Plywood Case
weight :
About 60Kg
Working voltage :
AC220V/50Hz
Price :
USD 4800~5420/Set
Drive form :
Pneumatic
Brand Name :
ACEY
Supply Ability :
200 Sets/Month
Place of Origin :
China
MOQ :
1 Set
Control box size :
L360×W480×H200mm
Welding time :
0~1S
Description
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
Product Overview

Designed for welding metal tabs in winding and metal lamination applications, the Metal Ultrasonic Spot Welder combines a small footprint with an elegant exterior. It is easy to operate, built with a reliable structure, and delivers stable, secure performance.

Key Features
  • Intuitive touch screen interface with automatic frequency tracking
  • No oxidation traces – ultrasonic cleaning enables perfect welding without surface treatment, even with stains or oxides present
  • All workpieces weld without pre-processing, requiring no soldering tin or oil additives
  • Wear-resistant welding head materials for long-lasting durability
  • Very low internal resistance at solder joints with excellent conductivity
  • Rapid welding process completed within 0.01 to 2 seconds
Technical Specifications
Working voltage AC220V/50Hz
Working air pressure 0.5~0.7Mpa
Ultrasonic frequency 40KHz (automatic tracking)
Power 800W (adjustable)
Welding time 0~1S
Drive form pneumatic
Weight about 60Kg
Control box size L360×W480×H200mm
Generator size L200×W460×H270mm
Product Display
Laboratory Small Ultrasonic Pouch Cell Spot Welding Machine
