Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping
Specifications
Price :
USD 2980~3105/Set
Power supply :
220V/50Hz
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union
Weight :
About 27Kg
After-sales Service :
24/7 Technical Support
Certification :
CE
Packaging Details :
Plywood Case
Brand Name :
ACEY
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Place of Origin :
China
Air consumption :
about 480ml
Sealing stroke :
30mm
Model Number :
ACEY-ACS-1
Dimensions :
About L465mm*W355mm*H345mm
Warranty :
1 Year Warranty With Lifetime Support
sealing mold :
standard 18650 series
Description

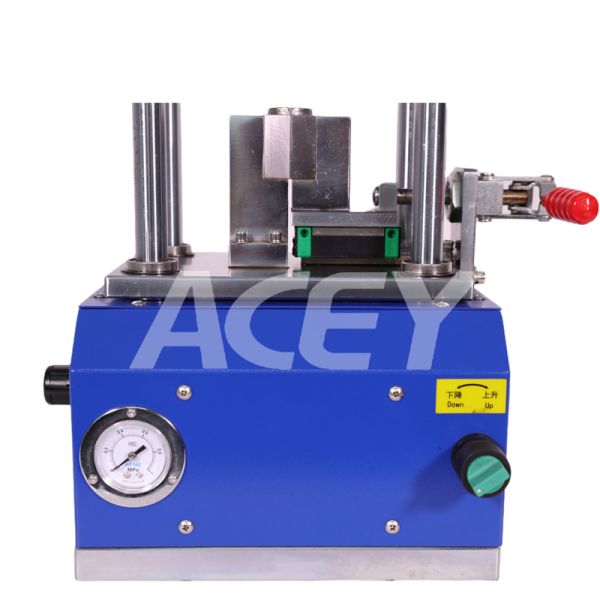

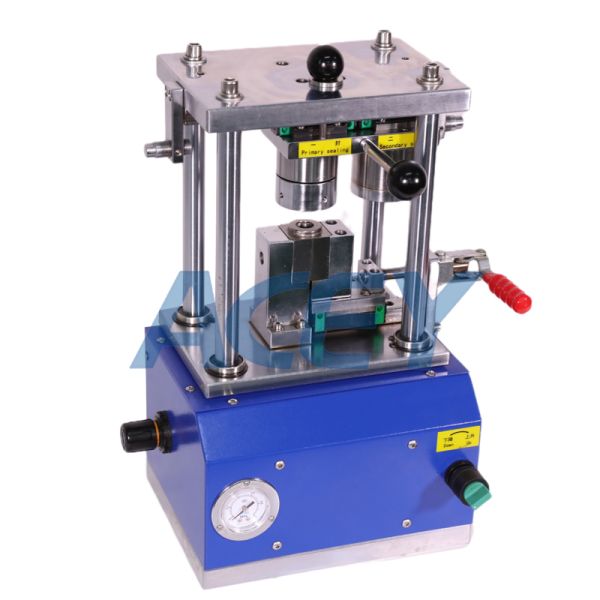

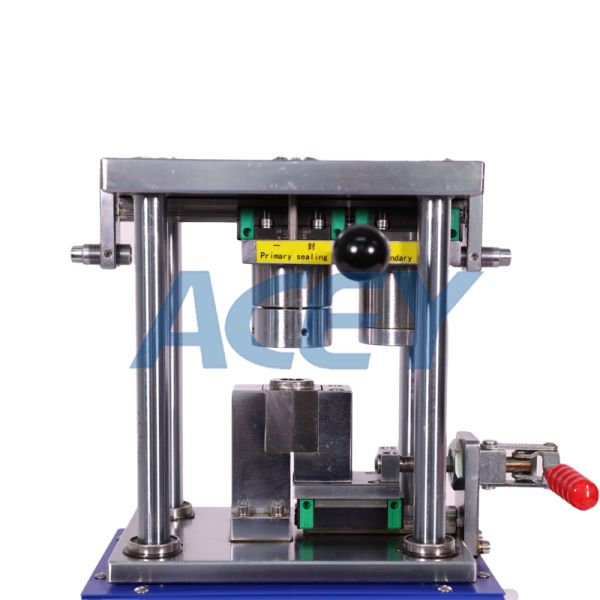

Pneumatic Cylindrical Battery Sealing Machine For Lab Cell Crimping

Ideal for both laboratory R&D and small‑batch factory production, this battery sealing machine is used for research sealing of cylindrical batteries and capacitors during sample preparation. Its pneumatic control ensures convenient, labor‑saving operation.

Product Features
  • Pure pneumatic operation requires no electricity, making it convenient and easy to use

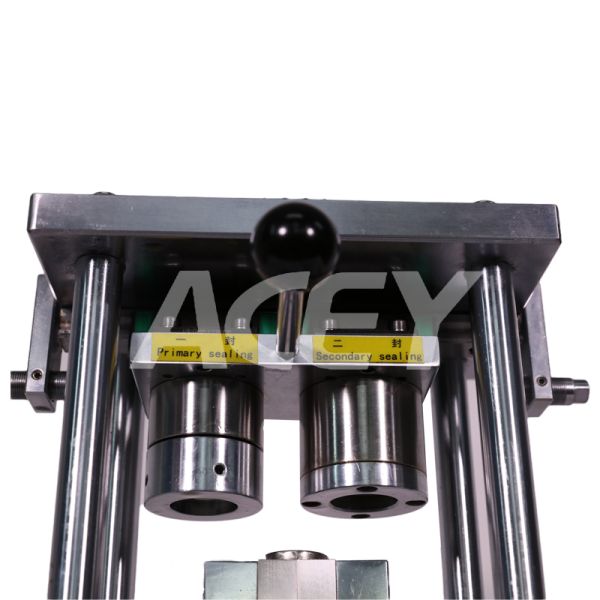

  • Two-station sealing provides better sealing performance and effect
  • Precision mold design ensures accurate and reliable sealing formation, while the solid steel structure offers stable and safe operation
  • Additional features include attractive appearance, easy maintenance, compact size, convenient handling, and accurate molding results
  • The system is powered by compressed air or inert gas cylinders, with the exhaust from compressed air properly connected to prevent damage to the glove box atmosphere
  • A built-in function prevents short circuits during battery sealing
Product Parameters
Air source 0.6～0.8MPa argon, nitrogen gas cylinder, or compressed air (compressed air is not recommended in the glove box)
Exhaust design Specially designed exhaust port, which can be connected externally through KF40 and other devices
Air consumption About 480ml of air consumption for a single seal
Sealing pressure Manual control valve control, pressure 1MPa, recommended pressure 0.7MPa
Sealing stroke 30mm
Dimensions L290mm*W205mm*H330mm
Weight 27Kg
Sealing mold Standard 18650 series packaging mold, optional or additional specifications
Structural material High-strength chrome steel, the surface will never rust after environmental protection plating and spraying treatment
