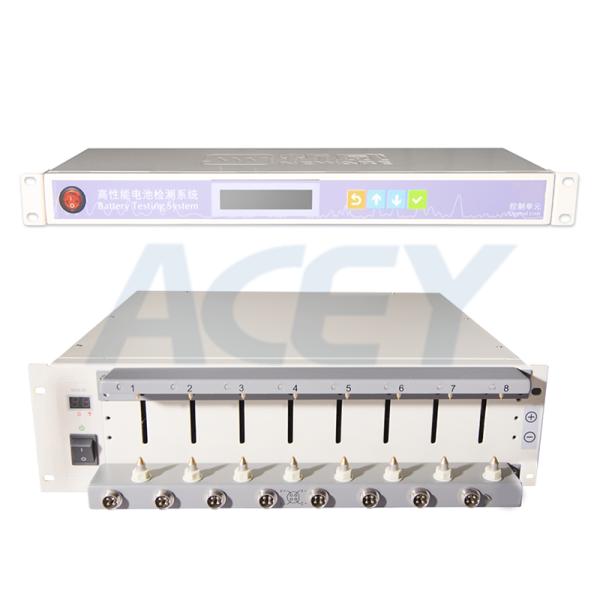

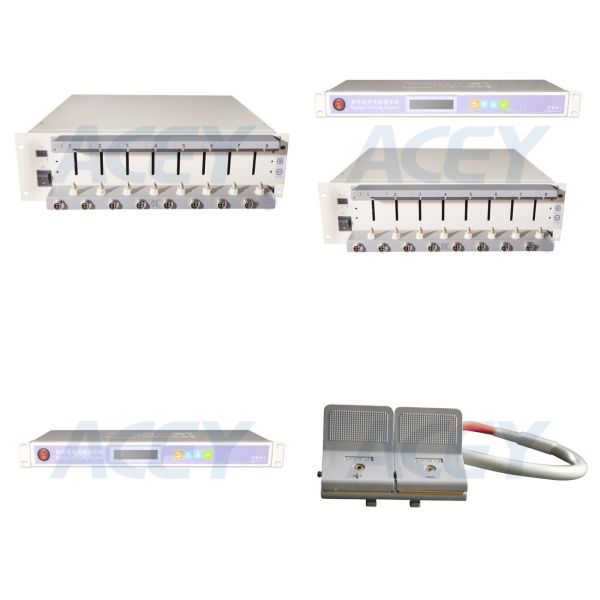

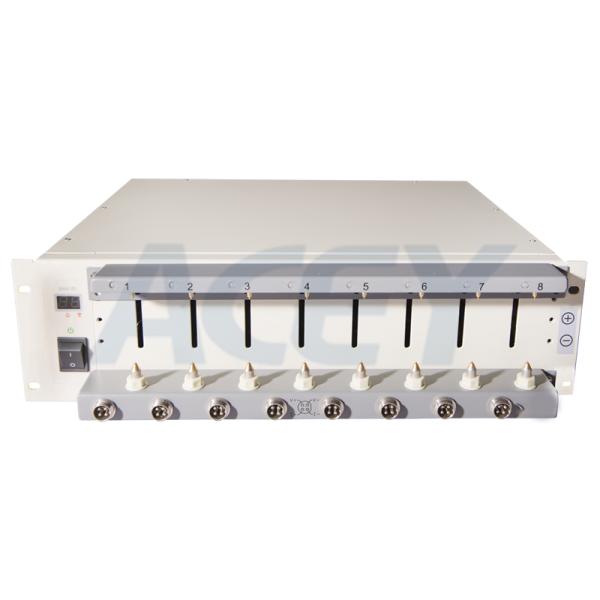

Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Specifications
Brand Name :
ACEY
Model Number :
ACEY-BT-5V12A
MOQ :
1 Set
Price :
USD 1350~1407/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Input power :
AC 220V ±10% / 50Hz
Per Channel Voltage Range :
25mV~5V
Input active power :
425W
Channel Control Mode :
Independent Control
Channels :
8
Dimensions :
W*D*H：480*380*130（mm）
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Description
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
Product Overview

ACEY-BT-5V12A is an eight-channel battery analyzer designed for testing polymer and cylindrical batteries with currents ranging from 12.0 mA to 12000 mA and voltages up to 5V. This system supports a wide range of battery testing applications, including electrode materials research, battery performance evaluation, small-scale battery formation, capacity grading, and battery pack testing.

Technical Specifications
Parameter Specification
Product Name Battery Testing Equipment 5V12A
Model No. ACEY-BT-5V12A
Input Power AC 220V ±10% / 50Hz
Input Active Power 826W
Input Resistance ≥1MΩ
Resolution AD:16bit; DA:16bit
Voltage Range 25mV~5V per channel
Discharge Min Voltage 2V
Voltage Accuracy ± 0.05% of FS
Current Range Range one: 0.5mA~1A; Range two: 1A~6A; Range three: 6A~12A
Current Accuracy ± 0.05% of FS
Output Power 60W per channel
Working Temperature 0℃~40℃
Dimensions 3U2F, W*D*H: 480*400*130(mm)
Product Details
Multi-Channel Lithium Battery Cell Capacity Tester For Pouch Cell
