Supermarket NFC Barcode Reader RS232 RS485 Access Control QR Code Reader
Supermarket NFC Barcode Reader RS232 RS485 Access Control QR Code Reader
Supermarket NFC Barcode Reader RS232 RS485 Access Control QR Code Reader
Supermarket NFC Barcode Reader RS232 RS485 Access Control QR Code Reader
Supermarket NFC Barcode Reader RS232 RS485 Access Control QR Code Reader
Supermarket NFC Barcode Reader RS232 RS485 Access Control QR Code Reader
Supermarket NFC Barcode Reader RS232 RS485 Access Control QR Code Reader
Supermarket NFC Barcode Reader RS232 RS485 Access Control QR Code Reader
Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES220N
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
$55
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
NFC Barcode Reader
Identification accuracy :
2 D ≥7.5 mil, 1 D ≥5 mil
Keywords :
2d Barcode Qr Code Scanner
Selling units :
Single item
Single package size :
8.3X7.7X4.7 cm
Single gross weight :
0.050 kg
Description

Qr Code NFC Scanner Access Control Gates Lockers Qr 2d Barcode Scanner Supermarket Barcode Reader Rs232 Rs485 Card Reader

Parameter

Capability
Collection method
Image type, CMOS Sensor
Picking rate
1 / 60 Seconds
Field of view Angle
Diagonal 84°, 72° horizontal, and 54° vertical
Ability to read
Identification accuracy
2 D ≥7.5 mil, 1 D ≥5 mil
Read the way
Close and close to reading, 0-30cm (according to different bar codes)
Scan depth of field
test condition
depth of field
Code 128 10mil 18bytes Paper copy code
40~150mm
Code 128 18bytes Mobile phone code
40~160mm
QR 10mil 160bytes Paper copy code
30~100mm
DM 15mil 100bytes Paper copy code
30~120mm
QR 18bytes Mobile phone code
30~200mm
Scan the Angle
Turning angle: 360°, elevation angle ± 55°, bias angle ± 55°




Support code system
In line with the international and domestic general QR code standards:
QRCode, Data Matrix, PDF417, Hanxin code, etc., comply with the international and domestic general one-dimensional code standards:
UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128,
ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5,
Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI / MSI PLESSEY, GS1 DataBar, et al
Print contrast
Minimum 25% of the reflection difference
LED
Fill-in light
white
NFC
Credit card support
Support for NFC credit card swiping
Support ID card, NFC mobile phone, contactless IC card, M1, induction card, etc
Radio frequency identification
ID card 00, Mifare_Ultra Light 01, Mifare_One (S50) 02, Mifare_One (S70) 03, Mifare_Pro (X) 04, Mifare_Desire 05, Mifare_Ultra Light, Mifare_One (S50), Mifare_One (S70), Mifare_Pro(X),Mifare_Desire

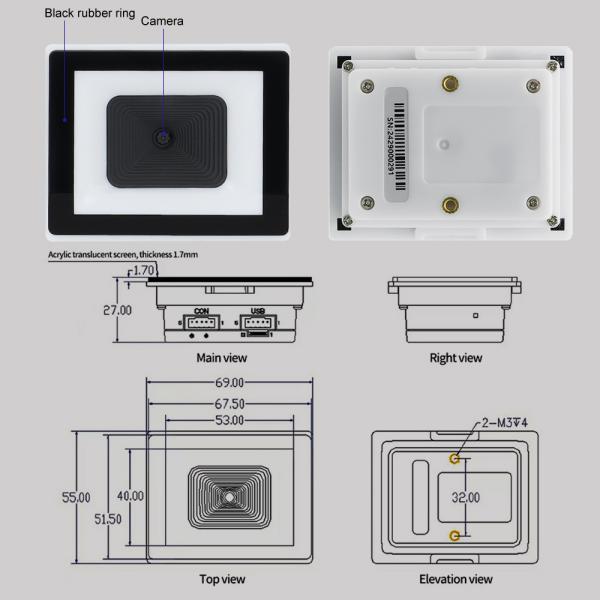

Physical parameters
Size (mm)
695527 (length, width and height)
Weight
<53g
Joggle



Socket interface
Dual 5 PIN socket, 2.0mm Pitch, POS industry general 12pin 0.5mm Pitch FPC socket, upper and lower compatible power supply is
3-3.6V or 3.6-16V configurable
A 5 PIN: USB serial port / USB KBW
A 5 PIN: 3 VTTL / 5 VTTL / RS232 / RS485 / ergen
A 12 PIN: 3 VTTL / 5 VTTL / RS232 / RS485 / ergen / USB
scan pattern
Command mode / induction mode / trigger mode
Read success tips
Green LED, and the buzzer
Data line (optional)
USB 2 M straight line, RS232 2 m straight line, customizable
enviromental parameter
Working temperature
-20℃ ~ 55℃
Storage temperature
-40℃ ~ 80℃
Humidity
Relative humidity: 5% ~ 95% (no condensation)
Ambient light
Max.100,000 Lux
Electrical parameters
Input voltage
5 Pin socket and 12Pin FPC socket inputs: 3-3.6V or 3.6-16V, configurable
Working current
Less than 200mA(3.3V input), less than 160 mA (5V input), less than 100 mA (10V input
The dormant current
About 5mA(3.3V input)
FAQ
Q:Can you send sample?
A:Yes, YJFIRST welcomes sample order to test. Please contact us for more details before placing sample order.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing,please contact us for more details.
Q:What's the shipping way?
A: There are DHL, Fedex, TNT, UPS. We also can ship the goods by your shipping account or other express agent you provided.
Q:What's the payment way?
A:We accept Alibaba online orders, PayPal ,T T, LC, Westem Union , MoneyGram.
Q:How about your product warranty?
A:Our oficiallyy promised warranty time is two years after delivery.
Q:How is your quality control?
A:Professional QC team and testing machine( Engine age testing, wire bending machine, switch life testing, shock resistance
testing). CE, FCC & ROHS certificated.
Q:If I come across any problem during product using, where I can get the support?
A:We support you technically 24h/7. Please send all your questions to us, and we will give the professional, patient, expliantion
by email or call in time.
