Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES220N
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
1 - 100 pieces $43 100 -500 pieces $42 500 -1000 pieces $41
Payment Terms :
T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
Embedded barcode reader
Size :
69mm*55mm*27mm
Weight :
About 50g
interface type :
RS485 , RS232, USB, USBCOM, TTL, wiegand
scan element type :
CMOS
Light source :
White LED
Features :
2d Barcode Qr Code Scanner
Image Sensor :
640x 480
Description

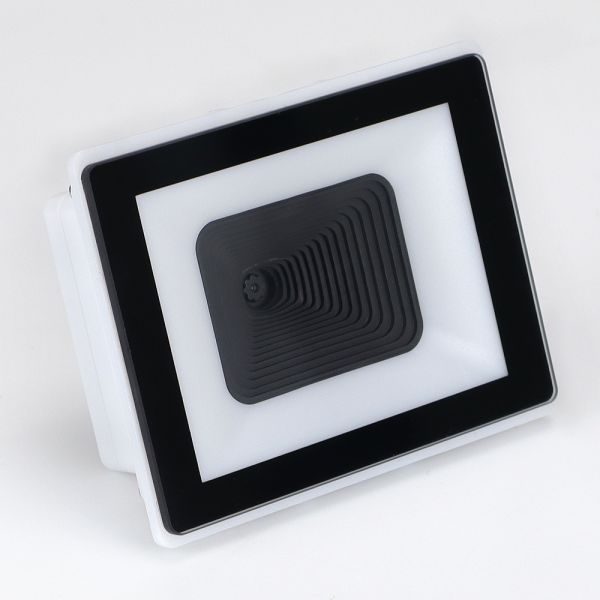

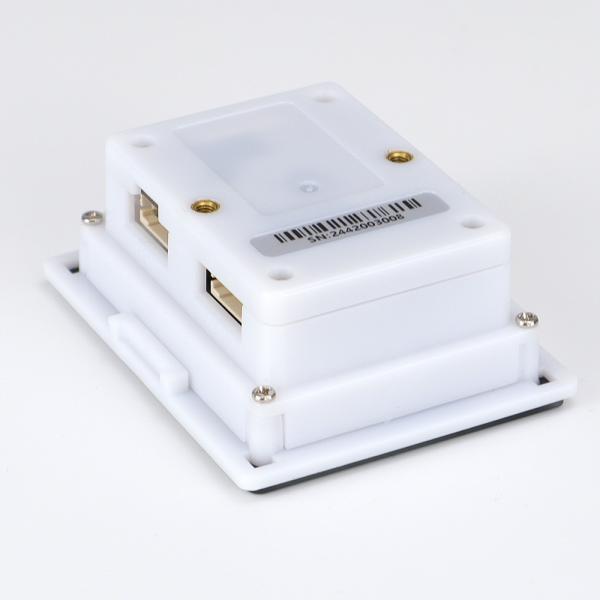

Compact QR Code Engine for Kiosks & Access Control Systems


Features of embedded code scanner

Compact Size – Designed with a small form factor to fit into tight spaces within devices or equipment.


High Integration – Easily embedded into existing systems (e.g., POS terminals, kiosks, production lines) via standardized

interfaces (USB, RS-232, etc.).


Fast Decoding Speed – Capable of quickly reading 1D, 2D, or QR codes, even from moving objects.


Versatile Application Ready–The perfect solution for a wide range of applications: Self-service kiosks, Ticket Vending Machines,

Point-of-Sale (POS) systems, Inventory Management Robots, and Healthcare devices.


Out-of-the-Box Functionality– Many models support plug-and-play operation, significantly reducing development time and

getting your product to market faster.


Application Scenario of Embedded Code Scanner


Retail and supermarkets – integrated into POS terminals for fast checkout.


Warehousing and logistics – mounted on conveyor belts or handheld devices for inventory tracking and package sorting.


Manufacturing – embedded in production lines for product identification and quality control.


Healthcare – used in hospitals and pharmacies for medication tracking and patient identification.


Transportation – installed at ticket gates for automated fare collection.


Self-service kiosks – enabling customers to scan tickets, coupons, or product codes independently.


Library systems – integrated into checkout stations for book borrowing and return processes.


Parameter


Capability
Collection method
Image type, CMOS Sensor
picking rate
1 / 30 seconds
Field of view Angle
Diagonal 84°, 72° horizontal, and 54° vertical
Ability to read
Identification accuracy
1D≥5 mil, (indoor version) 2D≥7.5 ml, (outdoor version) 2D≥10mil
Read the way
Close and close to reading, 0-30cm (according to different bar codes)
Scan the Angle
Turning angle 360°, elevation angle ± 55°, bias angle ± 55°
Print contrast
Minimum 20% of reflection difference
LED
Fill-in light
White
Physical parameters
Size (mm)
69×55×27(Long, width and height)
Weight
About 50g

Compact QR Code Engine for Kiosks & Access Control Systems

Compact QR Code Engine for Kiosks & Access Control Systems

Compact QR Code Engine for Kiosks & Access Control Systems

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.

Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing,
shock resistance testing). CE, FCC & ROHS certified.
