Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES220N
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
1 - 100 pieces $43 100 -500 pieces $42 500 -1000 pieces $41
Payment Terms :
T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
NFC Barcode Scanner
optical resolution :
5mil
scan speed :
300 times/sec
brand name :
YJFIRST
software development kit (sdk) :
Yes
color :
White
Interface :
USB/TTL-UART /RS232/RS485
Application :
Logistics Industry,door lock,warehouse,hospital
Description

Embedded NFC Barcode Scanner Camera Module PDF417 Barcode Reader Wiegand Scanner Qr Code Scanner


Features of Embedded NFC Scanners

*Leading Decoding 2D barcode scanner
*Available for various kinds of code reader
*Multiple interface: USB, USB COM,
TTL, RS232, RS485, wiegand etc.
*OCR & NFC barcode scanner module

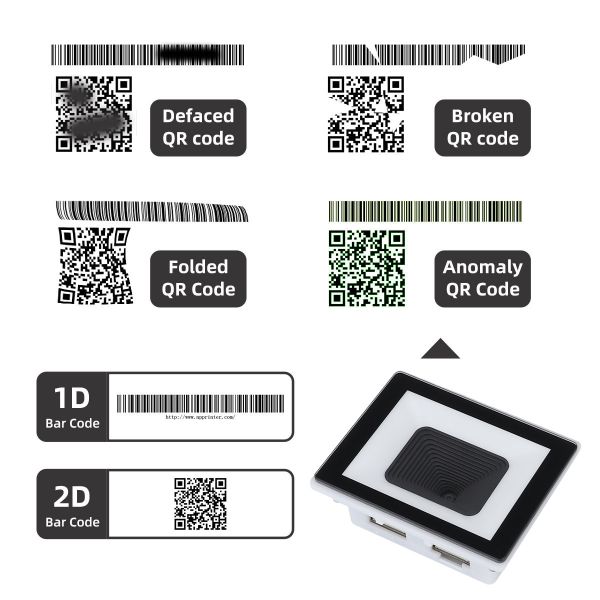

*Support for 1D & 2D qr code reader
*Customized kiosk barcode scanner
*High speed CMOS barcode scanner

Application scenarios of embedded NFC scanners

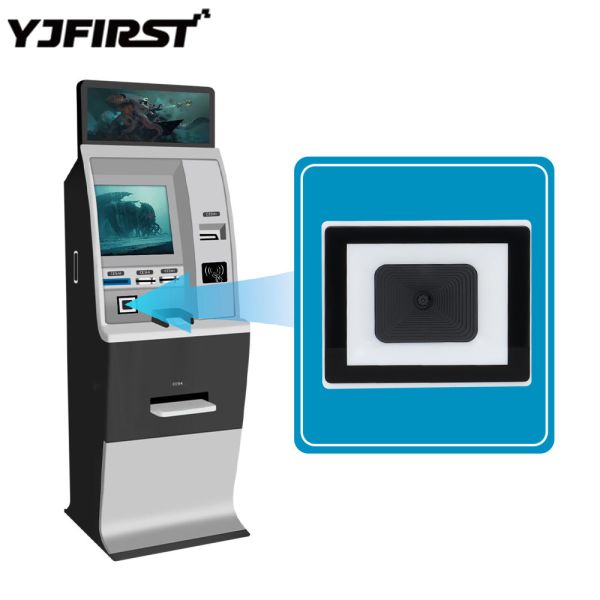

Widely embedded in various terminal equipment in the IoT ecosystem, including automated vending machines with smart

payment and inventory tracking functions, self-service inquiry terminals in public spaces such as airports, malls, and libraries,

intelligent logistics express cabinets with barcode scanning and card-swiping access control, queue management systems in

service centers and hospitals, self-service ticketing terminals for transportation, events, and entertainment, and POS payment

devices that support multiple payment modalities for enhanced customer convenience.


Technical Specifications of Embedded NFC Scanner


NFC
Credit card support
Support for NFC credit card swiping
Support ID card, NFC mobile phone, contactless IC card, M1, induction card, etc
Radio frequency identification
ID card 00, Mifare_Ultra Light 01, Mifare_One (S50) 02, Mifare_One (S70) 03, Mifare_Pro (X) 04, Mifare_Desire 05, Mifare_Ultra Light, Mifare_One (S50), Mifare_One (S70), Mifare_Pro(X),Mifare_Desire
Physical parameters
Size (mm)
695527 (length, width and height)
Weight
<53g
Joggle



Socket interface
Dual 5 PIN socket, 2.0mm Pitch, POS industry general 12pin 0.5mm Pitch FPC socket, upper and lower compatible power supply is
3-3.6V or 3.6-16V configurable
A 5 PIN: USB serial port / USB KBW
A 5 PIN: 3 VTTL / 5 VTTL / RS232 / RS485 / ergen
A 12 PIN: 3 VTTL / 5 VTTL / RS232 / RS485 / ergen / USB
scan pattern
Command mode / induction mode / trigger mode
Read success tips
Green LED, and the buzzer
Data line (optional)
USB 2 M straight line, RS232 2 m straight line, customizable
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White
Embedded NFC Barcode Scanner PDF417 Wiegand QR Code Reader White

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express
agents you provide.

Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
