XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
XT-CH001-3 Automatic Multiple Winding Machine , Precise Toroidal Core Winding Machine
Specifications
Brand Name :
Xingte
MOQ :
1
Name :
Multiple Winding Machine
Wire Diameter :
0.5-2.5mm
Wire Length :
500-1600mm
Min/Max O.D. Size :
15mm / 50mm
Description
XT-CH001-3 Automatic Multiple Winding Machine, Precise Toroidal Core Winding Machine
Product Overview

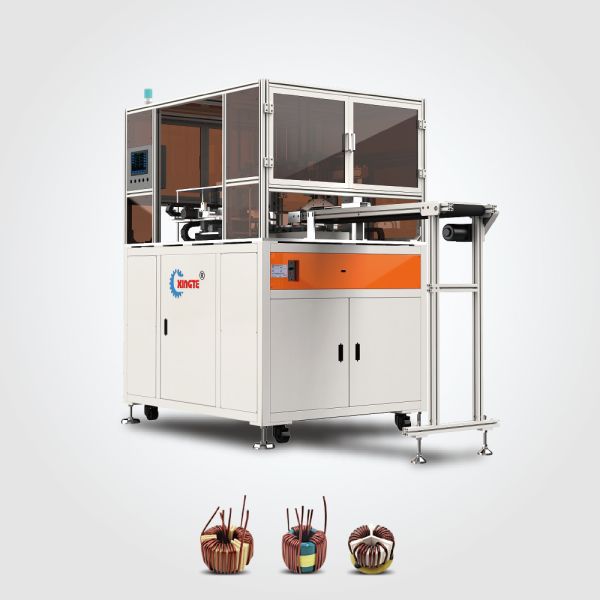

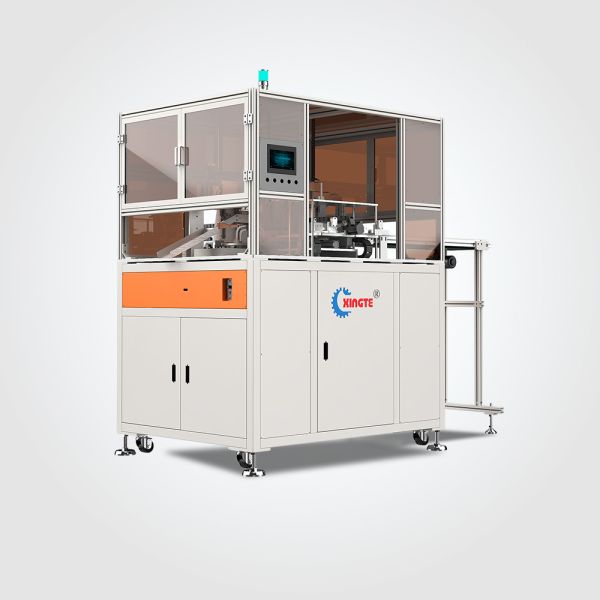

The XT-CH001-3 Automatic Multiple Windings Toroidal Core Winding Machine is engineered for manufacturing toroidal cores with 3 or 4 windings. This advanced system automates the complete winding process, delivering consistent and precise coil production for inductors, common-mode chokes, and transformers.

Key Features
  • Specialized for 3/4 windings toroidal cores
  • Handles wire diameters from 0.5-2.5mm (dual wire: 0.5-1.2mm)
  • Fully automatic loading/unloading & winding, reduces manual labor
  • High-precision control ensures stable and reliable production
  • Versatile for various production needs, easy specification changes
Technical Specifications
Parameter Value
Product Name Automatic Multiple Windings Toroidal Core Winding Machine
Model XT-CH001-3
Wire Diameter 0.5-2.5mm
Dual Wire Diameter 0.5-1.2mm
Wire Length 500-1600mm
Max Core Height 30mm
Min/Max O.D. Size 15mm / 50mm
Power Supply 220V±10% 50Hz
Air Pressure >0.6Mpa
Machine Size (L)1900×(W)1150×(H)2200mm
Applications

Ideal for producing multi-winding toroidal components used in:

  • Power transformers & inductors
  • Common-mode chokes
  • Power supply, data communication, and industrial electronics
Customization & Certification

Brand: XINGTE

MOQ: 1 unit

Certifications: CE, ISO9001, KC, ISO45001, ISO24001

Origin: China

Frequently Asked Questions
What is the model number?
XT-CH001-3
What windings does it support?
3 or 4 windings for toroidal cores
What is the wire diameter range?
0.5-2.5mm (dual wire up to 1.2mm)
