High Speed Toroidal Coil Winding Machine PLC Control Dual Station
High Speed Toroidal Coil Winding Machine PLC Control Dual Station
High Speed Toroidal Coil Winding Machine PLC Control Dual Station
High Speed Toroidal Coil Winding Machine PLC Control Dual Station
High Speed Toroidal Coil Winding Machine PLC Control Dual Station
High Speed Toroidal Coil Winding Machine PLC Control Dual Station
Specifications
Brand Name :
XINGTE
Model Number :
XT-CH001S
Certification :
CE / IOS 9001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
2.000 sets per year
Delivery Time :
30-40 working days
Packaging Details :
Wooden case
Name :
High Speed Toroidal Coil Winding Machine
Application :
Toroidal coil winding
Weight :
700KGS
Dimensions :
(L)1000 *(W)1700*(H)2100 mm
After-sales service provided :
engineers available to service machinery overseas, Online Video technical support
Voltage :
380v 50/60HZ
Warranty :
12 Monthes
Function :
Toroidal coil winding machines
speed :
0.6~1.2S/ Turn
Description
High Speed Toroidal Coil Winding Machine PLC Control Dual Station
High-speed toroidal coil winding machines with PLC control for automated and simplified operation. XT-CH001S is a fully automatic toroidal coil winding machine for various doughnut shape cores. It is the most versatile machine for wire diameters from 0.2-2.2mm, offering stable and durable performance.
Product Features
  • Advanced fibre optic sensors system combined with AC servo motor drive system for precise positioning
  • Intuitive and simple operation with 10" HMI to edit programs in dialogue mode
  • High precision tensioner (optional) to ensure winding quality
  • Automatic magnetic core uploading, wire feeding, winding, and unloading
  • 50 sets of programs can be stored with fast program switching
  • Hierarchical management and password storage function for security
  • Dual working station design for improved winding speed
  • Supports single layer, two layers reciprocating, three layers of wiring
  • Wide wire diameter compatibility from 0.5mm to 2.2mm
  • Automatic stop function for material shortage (magnetic core, copper wire)
  • Compatible with amorphous, iron powder core, iron-silicon-aluminum magnetic cores
  • Works with copper wire and aluminum wire
  • Adjustable speed with easy specification changes
Technical Specifications
Model Number XT-CH001S
Wire Diameter 0.5 - 2.2mm
Coil Outer Diameter 10-60mm
Coil Inner Diameter >8 mm
Wire Length 100-1600mm
Speed 0.6-1.2s/turn
Working Station 2 stations
Power 4.5KW
Power Supply AC 380V, 50/60Hz
Air Pressure > 0.6Mpa
Machine Dimension 1000×1700×2100mm
Gross Weight 700KGS
Applications and Uses
Toroidal coils are used for the reduction of electromagnetic interference in electronic circuits. They are employed in fluorescent tube lights for high voltage starting, and in conjunction with sensitive cables and connectors such as USB data cables and HDMI cables to reduce noise and interference. Audio frequency choke coils are used in subwoofers and other audio systems. These toroidal coils are also used in power supply circuits including inverter circuits, voltage regulators, and rectifier circuits.
Application Areas: Automotive electronics, medical device power supply, home appliance power supply, and other magnetic ring products including special wire thick wire, single wire, double wire, common mode, and multilateral winding.
About XINGTE

XINGTE was founded in 2007 and is headquartered in Shenzhen with a factory area of 30,000 square meters.

The company employs more than 600 staff, including 130+ engineers, a project team of 20+, and more than 230 after-sales service staff.

Xingte established a Suzhou branch in 2021, and Vietnam and Singapore branches in 2023.

The company focuses on manufacturing and R&D of precision coil winding equipment, non-standard automation equipment, and supporting automatic lines.

With nearly 20 years of development, Xingte has become a leading brand in the segmented industry, serving customers worldwide.

Machine Images

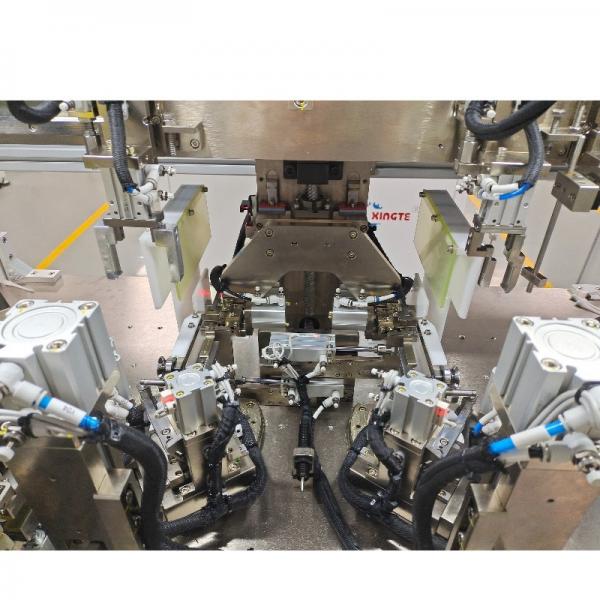

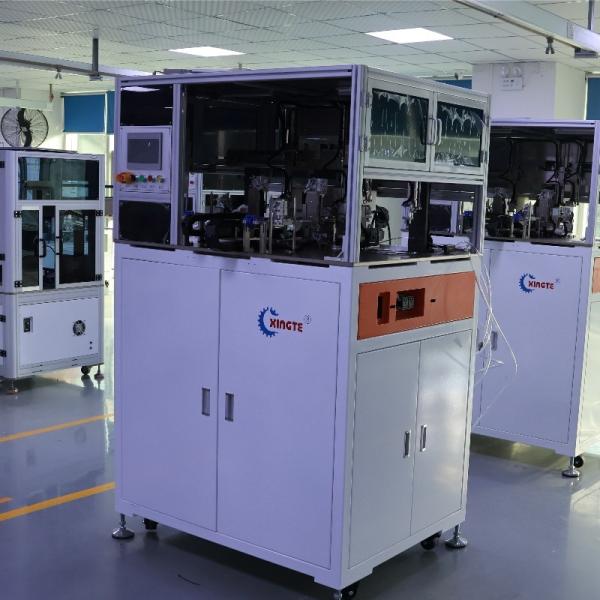

High Speed Toroidal Coil Winding Machine PLC Control Dual Station

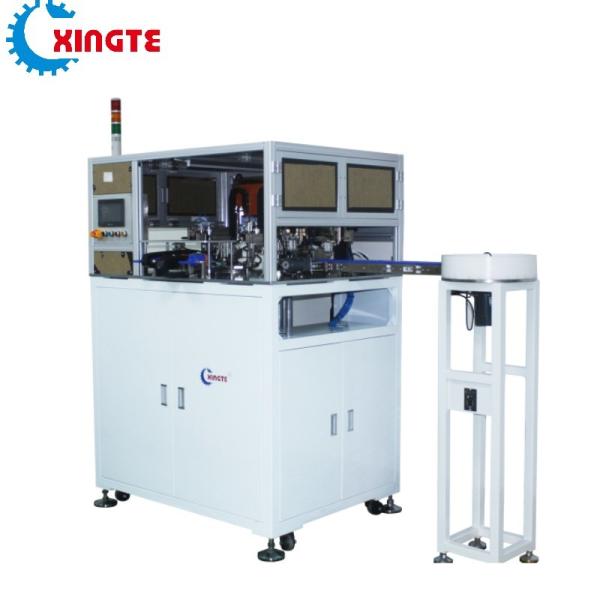

High Speed Toroidal Coil Winding Machine PLC Control Dual Station
