High Speed Toroidal Core Winding Machine With PLC Control Automated
High Speed Toroidal Core Winding Machine With PLC Control Automated
High Speed Toroidal Core Winding Machine With PLC Control Automated
High Speed Toroidal Core Winding Machine With PLC Control Automated
High Speed Toroidal Core Winding Machine With PLC Control Automated
High Speed Toroidal Core Winding Machine With PLC Control Automated
Specifications
Brand Name :
XINGTE
Model Number :
XT-CH001S
Certification :
CE / IOS 9001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
2.000 sets per year
Delivery Time :
30-40 working days
Packaging Details :
Wooden case
Application :
Toroidal core winding
Weight :
700KGS
Dimensions :
(L)1000 *(W)1700*(H)2100 mm
After-sales service provided :
engineers available to service machinery overseas, Online Video technical support
Voltage :
380v 50/60HZ
Name :
High speed Toroidal winding machines
Warranty :
12 Monthes
Function :
Toroidal coil winding machines
speed :
0.6~1.2S/ Turn
Description
High Speed Toroidal Core Winding Machine With PLC Control Automated

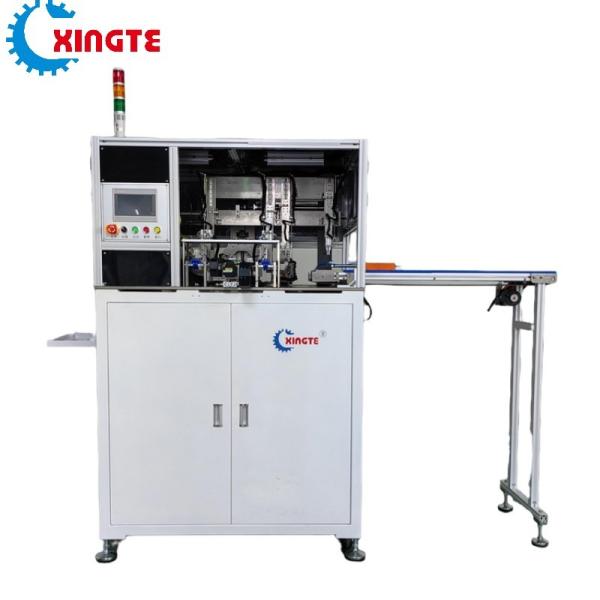

High-speed toroidal winding machines with PLC control for automated and simplified operation. XT-CH001S is a fully automatic toroidal coil winding machine for various doughnut shape cores. It is the most versatile machine for wire diameters from 0.2-2.2mm, offering stable and durable performance.
Product Features
  • Fully automatic magnetic ring winding machine designed for symmetrical winding method
  • Automatic magnetic core uploading, wire feeding, winding, and unloading
  • Dual working station design for improved winding speed
  • Capable of single layer, two layers reciprocating, and three layers of wiring
  • Precise wiring with high efficiency
  • Wide wire diameter compatibility from 0.5mm to 2.2mm
  • Fully automated operation - one person can operate multiple machines
  • Automatic stop function for material shortage (magnetic core, copper wire)
  • Compatible with amorphous, iron powder core, iron-silicon-aluminum, and other magnetic core materials
  • Works with copper wire and aluminum wire
  • Adjustable speed with fast specification changes
Product Parameters
Model number XT-CH001S
Wire Diameter 0.5 ~ 2.2mm
Coil O.D 10-60mm
Coil I.D >8 mm
Wire length 100-1600mm
Speed 0.6-1.2s/turn
Working station 2 stations
Power 4.5KW
Power supply AC 380V, 50/60Hz
Air pressure > 0.6Mpa
Machine dimension 1000*1700*2100mm
G.W 700KGS
Applications and Uses
Toroidal coils are used for the reduction of electromagnetic interference in electronic circuits. High voltage at the starting time can be produced as toroidal coils are used with fluorescent tube light. To reduce noise and other interference, toroidal coils are used in conjunction with sensitive cables and connectors such as USB data cables and HDMI cables. Audio frequency choke coils are used in subwoofers and other audio systems. These toroidal coils are also used in power supply circuits such as inverter circuits, voltage regulators, and rectifier circuits.
Application Areas
  • Automotive electronics
  • Medical device power supply
  • Home appliance power supply
  • Other magnetic ring products
  • Special wire thick wire single wire double wire
  • Common mode, multilateral winding
Our Machine Pictures
High Speed Toroidal Core Winding Machine With PLC Control Automated
High Speed Toroidal Core Winding Machine With PLC Control Automated
Toroidal Coil Samples
High Speed Toroidal Core Winding Machine With PLC Control Automated
Our Factory
High Speed Toroidal Core Winding Machine With PLC Control Automated
Delivery
High Speed Toroidal Core Winding Machine With PLC Control Automated
