Specifications
Brand Name :
XINGTE
Model Number :
XT-CH001S
Place of Origin :
CHINA
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
MOQ :
1
Delivery Time :
15-35 days
Payment Terms :
L/C,T/T
Supply Ability :
2000PCS/MONTH
Packaging Details :
Wooden case
Dimensions :
1000mm*1700mm*2100mm
Type :
Automatic
Winding Speed :
0.6-1.2S/TURN(Adjustable)
Frequency :
50Hz
Coil Height Range :
5mm-30mm
Wire Diameter Range :
0.5mm-2.2mm
Coil Diameter Range :
10mm-60mm
Voltage :
220V
Description
220V 50Hz Fully Automatic Coil Winding Machine, 2 Stations Toroidal Coil Winder
Product Overview

XINGTE XT-CH001S is a high-quality Toroidal Coil Winding Machine designed and manufactured in China. This automatic winding machine is suitable for various toroidal coils used in transformers, featuring a flexible coil diameter range of 10mm-60mm and wide wire diameter range of 0.5mm-2.2mm.

Key Features & Benefits
High Efficiency: Winding speed of 0.6-1.2S/TURN (adjustable) for quick and accurate coil winding
Easy Operation: User-friendly controls with simple interface for easy learning and operation
Stable Performance: High-quality materials and components ensure reliable performance and long lifespan
Advanced Technology: Fibre optic sensors combined with AC servo motor drive for precise positioning
Dual Station Design: Two working stations significantly improve winding speed and productivity
Program Storage: Stores up to 50 sets of programs for fast switching between different specifications
Technical Specifications
Model Number XT-CH001S
Wire Diameter 0.5 - 2.2mm
Coil Outer Diameter 10-60mm
Coil Inner Diameter >8mm
Wire Length 100-1600mm
Winding Speed 0.6-1.2s/turn
Working Stations 2 stations
Power 4.5KW
Power Supply AC 380V, 50/60Hz
Air Pressure > 0.6Mpa
Machine Dimensions 1000×1700×2100mm
Gross Weight 700KGS
Applications

Toroidal coils are widely used in various electronic applications including:

  • Reduction of electromagnetic interference in electronic circuits
  • Fluorescent tube lighting systems for high voltage starting
  • Noise reduction in sensitive cables and connectors (USB, HDMI)
  • Audio systems including subwoofers and audio frequency choke coils
  • Power supply circuits (inverters, voltage regulators, rectifiers)
Customization & Ordering Information
Brand Name XINGTE
Certifications CE, ISO9001, KC, ISO45001, ISO24001
Minimum Order Quantity 1 unit
Delivery Time 15-35 days
Payment Terms FOB, EXW
Supply Capacity 2000 units per month
Factory & Product Images

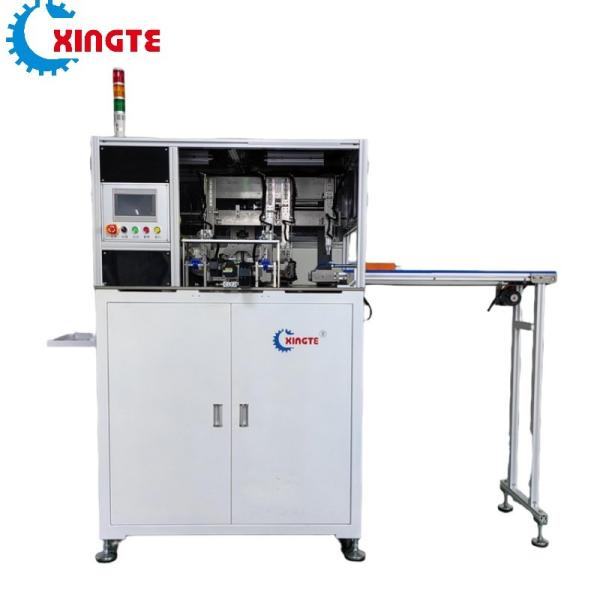

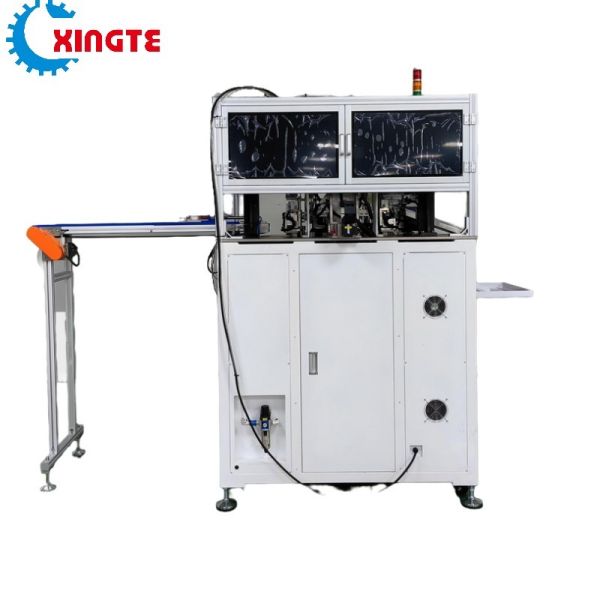

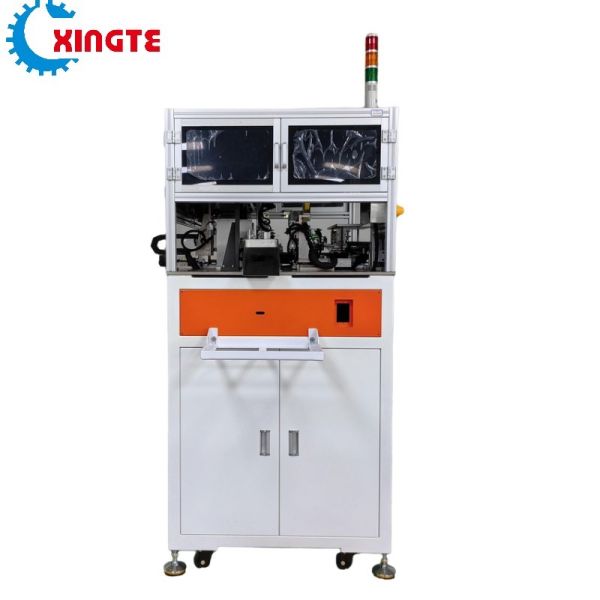

220V 50Hz Fully Automatic Coil Winding Machine , 2 Stations Toroidal Coil Winder 220V 50Hz Fully Automatic Coil Winding Machine , 2 Stations Toroidal Coil Winder 220V 50Hz Fully Automatic Coil Winding Machine , 2 Stations Toroidal Coil Winder 220V 50Hz Fully Automatic Coil Winding Machine , 2 Stations Toroidal Coil Winder 220V 50Hz Fully Automatic Coil Winding Machine , 2 Stations Toroidal Coil Winder
