Specifications
Model Number :
VR10 Pro
Working Current :
0.2A
MOQ :
Sample order accepted
Delivery Time :
3-7 working days
Product Dimensions (mm) :
107.5x73.2x18
Payment Terms :
T/T,Western Union,Ali Pay,D/P,D/A,L/C
Working Temperature :
-40℃ to 85℃
Certification :
CE
Antenna Gain :
10dBi
Place of Origin :
Shenzhen, China.
Interface :
Bluetooth, RS485, Relay
Supply Ability :
10,000 pcs per month
Protection Standard :
IP67
Price :
negotiable
Package Dimensions (mm) :
166x94x97
Brand Name :
SINOMATIC
Working Frequency :
79GHz
Packaging Details :
Carton
Description
ZKTeco VR10 Pro Advanced 79 GHz Radar Assistant System

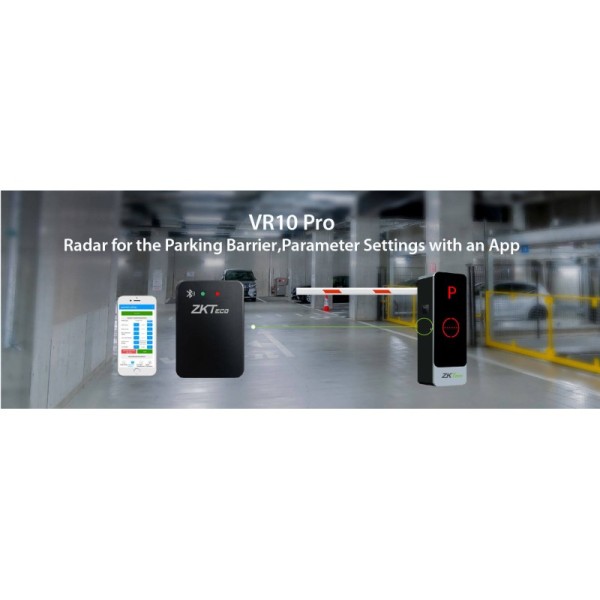

The ZKTeco VR10 Pro is a 79 GHz radar detector for parking and vehicle access barrier gates. Detects motorcycles, cars, trucks and pedestrians, with adjustable detection from 1 to 6 metres and IP67 weatherproofing. Connects to the barrier main board to prevent the boom from striking obstacles. Bluetooth and RS485 interfaces with mobile-app configuration via Radar Assistant.
Key Features
  • Vehicle and pedestrian detection: Detects motorcycles, cars, trucks and pedestrians near the gate
  • Adjustable detection: 1 to 6 metres detection range, tunable for the lane geometry
  • IP67 protection: Works under ambient outdoor weather conditions
  • Bluetooth setup: One-click pairing with the Radar Assistant mobile app on Android or iOS, 3 to 5 metres Bluetooth range
  • RS485 interface: Communication with the barrier main board and PC-side upgrade and debug
  • Flexible installation: Surface mount on the barrier housing or a nearby pole. Supports straight booms
Applications
  • Commercial carparks: Boom gates at office and apartment carparks where pedestrians and vehicles share the lane
  • Council and contractor yards: Vehicle gates with mixed truck, ute and foot traffic
  • Logistics and distribution sites: Truck movements through gated yards alongside forklifts and personnel
  • Hospital and emergency vehicle access: Ambulance bays where boom timing has to be reliable in any weather
  • School staff carparks: Boom-gated staff entry where students might cross the lane
Technical Specifications
Model VR10
Detection Distance 1m to 6m
Working Frequency 79GHz
Working Voltage DC 10V to 16V
Working Current 0.2A
Power Consumption ≤ 2.5W
Transmitter Power Output 12.5dBm
Antenna Gain 10dBi
Interface Bluetooth, RS485, Relay
Product Dimensions (mm) 107.5 * 73.2 * 18
Package Dimensions (mm) 166 * 94 * 97
Net Weight 228.4g
Working Temperature -40℃ to 85℃
Protection Standard IP67
Supported App Radar Assistant
Radar Assistant Mobile App
  • Compatible with Android and iOS systems
  • One-click Bluetooth connection to radar from mobile devices
  • Bluetooth communication range: 3m to 5m
  • Configure radar detection distance, background recording, radar status, reboot functions, and other parameters
  • Perform firmware upgrades via the app
