TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
Specifications
Operating temperature :
-20°C to +65°C
Model Number :
TLD-110
Output relays :
240V/5A
MOQ :
Sample order accepted
Delivery Time :
2-5 working days after payment received
Output method :
Relay
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Sensitivity :
Three levels of adjustable
Supply Ability :
30, 000 pcs per month
Frequency range :
20 kHz to 170 kHz
Certification :
CE/ ISO
Reaction time :
100ms
Place of Origin :
Shenzhen, China.
Dimension :
78*40*116mm
Price :
negotiable
Power Consumption :
4.5VA
Brand Name :
SINOMATIC
Packaging Details :
Carton
Description
TLD-110 Single Channel Loop Detector
The TLD-110 Toll Gate Vehicle Loop Detector features relay output compatibility with 220V/110V/24V/12V power systems. This single-channel inductive loop detector operates by detecting changes in loop inductance caused by vehicle metallic components, with automatic calibration upon power application.
Application Scope
  • Parking lot entrance vehicle detection systems
  • Parking space information acquisition systems
  • Electronic traffic light snapshot systems
  • Traffic monitoring and control systems

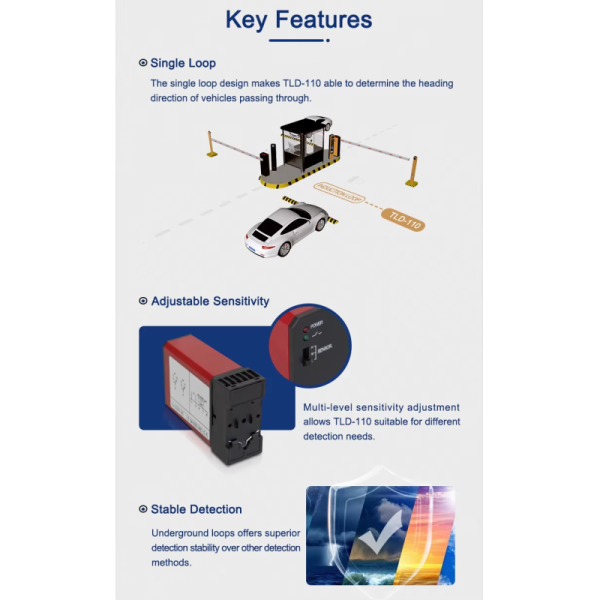

Features & Functions
It utilizes microprocessor technology to evaluate inductance changes within detection loops. Features include automatic calibration when operating voltage is applied, ensuring ease of use and reliable performance.
Technical Specifications
Model TLD-110
Loop Channel Single
Input Power AC 80V ~ 240V
Rated Power 4.5 W
Output Relay 240V / 5A
Operating Temperature -20°C ~ 65°C
Work Frequency 20 ~ 170 kHz
Reaction Time 10 ms
Sensitivity 3 Levels
Input Interface Digital Signal Input
Product Dimensions 75*37*110 mm (L x W x H)
Loop Connection Wiring Maximum length 20 meters
TLD-110 Single Channel Loop Detector with Automatic Calibration and Relay Output for Vehicle Detection
Company Advantages
  • Low MOQ: Samples available for quality verification
  • High Quality: Ensures market reputation and repeat orders
  • Professional Service: Comprehensive pre-sale and after-sale support
  • Competitive Pricing
  • Fast & Cost-Effective Delivery
  • OEM Services Welcome
