79GHz Bluetooth Communication Barrier Gate Radar Detector with IP67 Protection for Vehicles and Pedestrians
79GHz Bluetooth Communication Barrier Gate Radar Detector with IP67 Protection for Vehicles and Pedestrians
79GHz Bluetooth Communication Barrier Gate Radar Detector with IP67 Protection for Vehicles and Pedestrians
79GHz Bluetooth Communication Barrier Gate Radar Detector with IP67 Protection for Vehicles and Pedestrians
Specifications
Model Number :
VR10 Pro
Detection distance :
1m to 6m
MOQ :
Sample order accepted
Delivery Time :
3-7 working days
Power Consumption :
≤ 2.5W
Payment Terms :
T/T,Western Union,Ali Pay,D/P,D/A,L/C
Antenna Gain :
10dBi
Certification :
CE
Working Frequency :
79GHz
Place of Origin :
Shenzhen, China.
Working Current :
0.2A
Supply Ability :
10,000 pcs per month
Interface :
Bluetooth, RS485, Relay
Price :
negotiable
Transmitter Power Output :
12.5dBm
Brand Name :
SINOMATIC
Protection rate :
IP67
Packaging Details :
Carton
Description

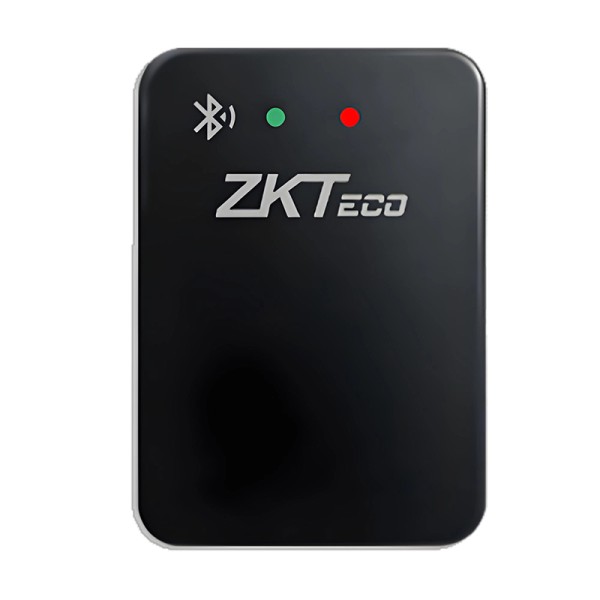

Bluetooth RS485 Communication ZKTeco 79GHz Barrier Gate Radar Detector VR10 Pro
The VR10 Pro is ZKTeco's second-generation radar system designed to detect and identify various vehicles (motorcycles, cars, trucks, etc.) and pedestrians near barrier gates. Through integration with barrier gate control boards, the VR10 Pro helps prevent vehicle collisions with obstacles and protects property and pedestrians while enabling automatic boom closing. Compared to traditional loop detectors, it offers flexible installation and reduced labor costs. Parameters can be configured via mobile app (Radar Assistant) using Bluetooth connectivity.
Key Features
  • Vehicles and pedestrians detection
  • Bluetooth communication support for upgrades and debugging via mobile app (Radar Assistant)
  • RS485 communication support for upgrades and debugging via PC
  • Flexible installation options
  • Operates reliably under various weather conditions (IP67 rated)
  • Adjustable detection distance from 1m to 6m
  • Supports straight boom configurations
79GHz Bluetooth Communication Barrier Gate Radar Detector with IP67 Protection for Vehicles and Pedestrians
Radar Assistant Mobile App
  • Compatible with Android and iOS systems
  • One-click Bluetooth connection to radar from mobile devices
  • Bluetooth communication range: 3m to 5m
  • Configure radar detection distance, background recording, radar status, reboot functions, and other parameters
  • Perform firmware upgrades via the app
Technical Specifications
Model VR10
Detection Distance 1m to 6m
Working Frequency 79GHz
Working Voltage DC 10V to 16V
Working Current 0.2A
Power Consumption ≤ 2.5W
Transmitter Power Output 12.5dBm
Antenna Gain 10dBi
Interface Bluetooth, RS485, Relay

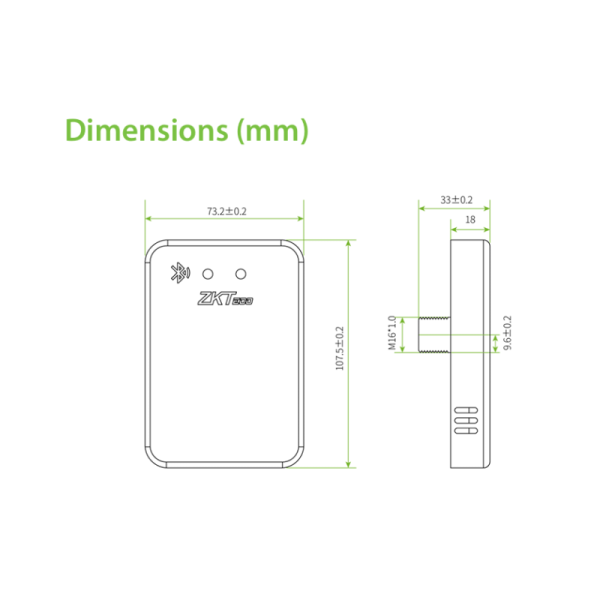

Product Dimensions (mm) 107.5 × 73.2 × 18
Package Dimensions (mm) 166 × 94 × 97
Net Weight 228.4g
Working Temperature -40℃ to 85℃
Protection Standard IP67
Supported App Radar Assistant
