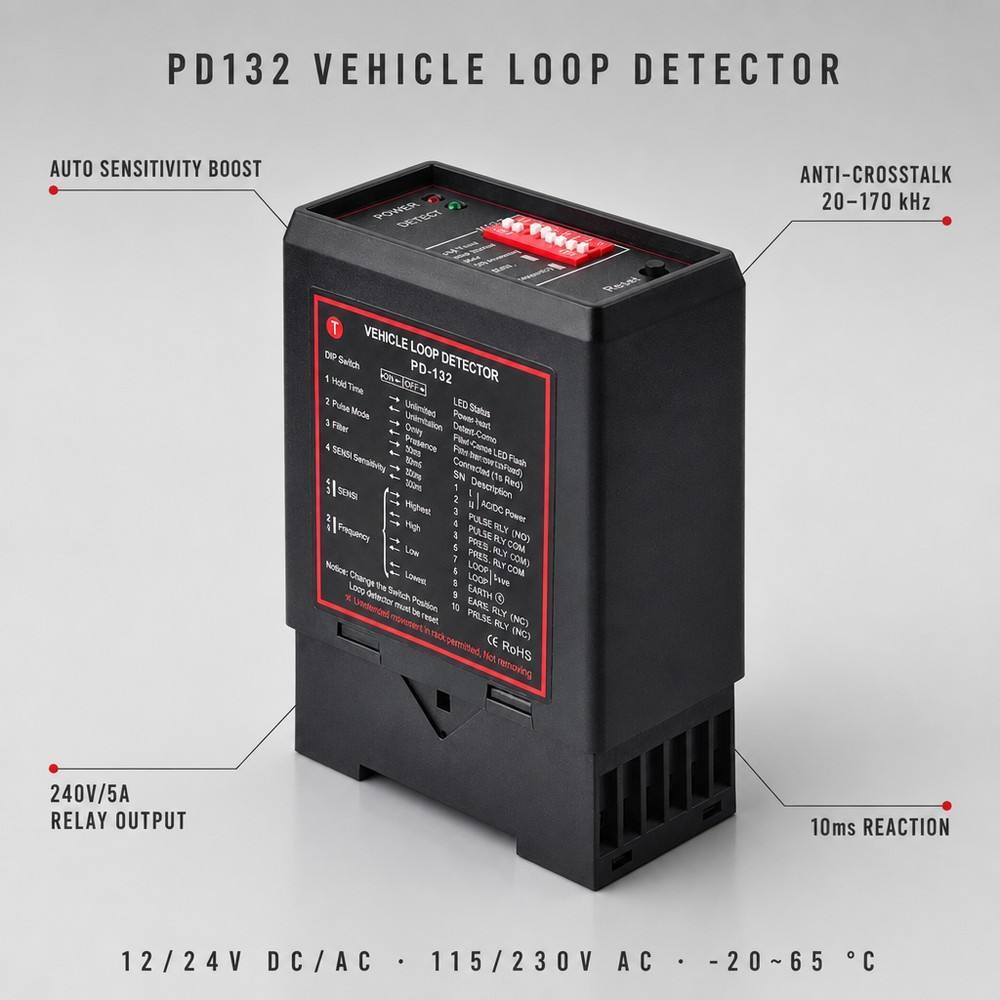

220V/110V Single Channel Vehicle Loop Detector with 10ms Reaction Time for Parking Access Control
220V/110V Single Channel Vehicle Loop Detector with 10ms Reaction Time for Parking Access Control
220V/110V Single Channel Vehicle Loop Detector with 10ms Reaction Time for Parking Access Control
220V/110V Single Channel Vehicle Loop Detector with 10ms Reaction Time for Parking Access Control
Specifications
Model Number :
PD132
Weight :
0.3Kg
Certification :
CE/ ISO
Operating temperature :
-20°C to +65°C
MOQ :
Sample order accepted
Delivery Time :
2-5 working days after payment received
Voltage Available :
220V, 110V, 12V24V/AC/DC
Price :
negotiable
Detection Object :
vehicle
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Packing :
Carton box
Place of Origin :
Shenzhen, China.
Colour :
Black
Supply Ability :
3,0000pcs per month
Application :
Traffic Monitoring, Parking Management
Brand Name :
SINOMATIC
Channel :
Single Channe
Packaging Details :
Carton/Plywood box/Pallet
Description
Fast Ship AC220V/110V Single Loop Detector Car Parking Access Control System Sensor

Professional inductive vehicle single loop detector designed for car parking systems and automatic barrier gate operations. Engineered for reliable vehicle detection in access control applications.

Applications
  • Automatic Gate Systems
  • Traffic Light Control
  • Gate Drive Mechanisms
  • Operating Barriers
  • Parking Guidance Systems
  • Card Dispenser Activation
Technical Specifications
Parameter Specification
Model PD132
Brand SINOMATIC
Color Black
Power Supply 230V AC, 115V AC, 24V DC/AC, 12V DC/AC
Frequency Range 20KHz ~ 170KHz
Sensitivity Adjustable in 4 increments
Reaction Time 10ms
Channel Single
Operating Temperature -40ºC ~ +80ºC
Relative Humidity <90%
Environmental Compensation Automatic drift compensation
Output Mode Electric relay
Loop Inductance Ideal is 100μH to 300μH (Connection included)
Housing Size 78x40x108 mm (L x W x H)
220V/110V Single Channel Vehicle Loop Detector with 10ms Reaction Time for Parking Access Control
Key Features
  • Industrial engineering design concept
  • Standard industrial guide installation
  • Strong anti-jamming ability and stability
  • Variety of output interfaces for different applications
  • Multiple shape options to meet diverse requirements
  • High temperature stability
  • Automatic environmental drift compensation
  • Coil automatic fault detection function
  • Self-detection during DIP switch configuration
  • ABS alignment for compact pillar integration
  • Adjustable presence output time
  • Configurable work mode via DIP switch
  • Adjustable pulse or permanent output modes
