Durable PC+ABS Engineering Plastics Inductive Loop Traffic Detector with 20 kHz to 170 kHz Frequency Range and 100ms Reaction Time
Durable PC+ABS Engineering Plastics Inductive Loop Traffic Detector with 20 kHz to 170 kHz Frequency Range and 100ms Reaction Time
Durable PC+ABS Engineering Plastics Inductive Loop Traffic Detector with 20 kHz to 170 kHz Frequency Range and 100ms Reaction Time
Durable PC+ABS Engineering Plastics Inductive Loop Traffic Detector with 20 kHz to 170 kHz Frequency Range and 100ms Reaction Time
Durable PC+ABS Engineering Plastics Inductive Loop Traffic Detector with 20 kHz to 170 kHz Frequency Range and 100ms Reaction Time
Durable PC+ABS Engineering Plastics Inductive Loop Traffic Detector with 20 kHz to 170 kHz Frequency Range and 100ms Reaction Time
Specifications
Brand Name :
SINOMATIC
Model Number :
LD-110
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,
Supply Ability :
3,0000pcs per month
Delivery Time :
2-5 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Case Material :
PC+ABS engingeering plastics
Installation :
Din rail
Power Consumption :
4.5VA
Operating temperature :
-20°C to +65°C
Frequency range :
20 kHz to 170 kHz
Reaction time :
100ms
Description

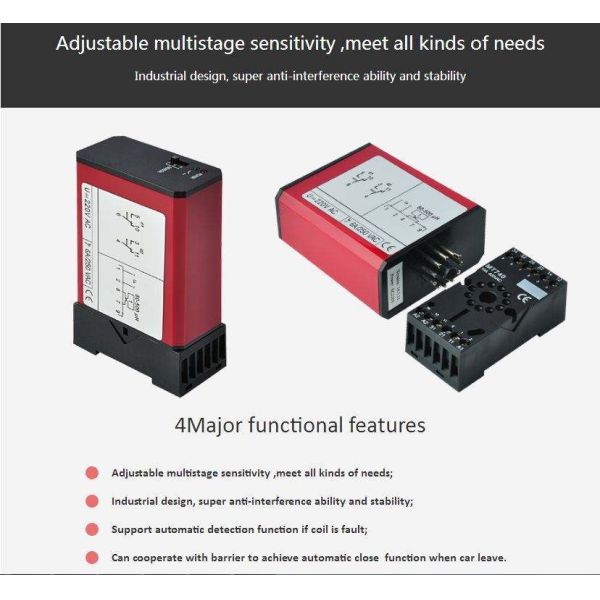

Durable Red Inductive Loop Traffic Detector Matching Traffic Boom Barrier
This durable red inductive loop traffic detector is specifically designed to work with traffic boom barrier systems, providing reliable vehicle detection for access control and traffic management applications.
Application
Vehicle loop detectors detect vehicles when they pass over or occupy designated roadway areas. These detectors monitor and secure access points, count vehicles, and provide output signals for controlling door and gate mechanisms, operating barriers, directing traffic light systems, or activating card dispensers in parking facilities. Utilizing advanced microprocessor technology, they perform reliably in diverse environmental conditions.
Function & Features
The LD-110 is a single-channel inductive loop detector that operates on the principle of inductance changes caused by metallic vehicle components passing over the loop. These changes are detected and processed by a microprocessor. The unit features automatic calibration upon power application for ease of use.
Technical Parameters
Parameter Specification
Operation Voltage AC 220V± 10%
Power Consumption 5W
Output Relay output
Frequency Range 20 kHz~170 kHz (2 grades adjustable)
Reaction Time 10ms
Signal Hold Time Unlimited/limited existence for 10 minutes when loop is temporarily covered
Sensitivity Adjusting 8 grades
Loop Inductance Ideal 100uH~300uH (include connecting wiring)
Max 50uH~1000uH (include connecting wiring)
Loop Connection Wiring Recommend down-lead not more than 10 meters, twist 20 times at least per meter for the loop, total resistance ≤ 10 Ohm
Automatic Calibration Time 1s~2s
Operation Temperature -20~65°C
Storage Temperature -40~85°C
Relative Humidity ≤ 95%
Dimensions 78*40*108mm (include base socket)
Weight 300g (include base socket)
Durable PC+ABS Engineering Plastics Inductive Loop Traffic Detector with 20 kHz to 170 kHz Frequency Range and 100ms Reaction Time
Our Advantages
  • Low MOQ: Samples available for quality verification
  • High Quality: Ensures market reputation and repeat orders
  • Professional Service: Comprehensive pre-sale and after-sale support
  • Competitive Pricing
  • Fast & Cost-Effective Delivery
  • OEM Services Welcome
