LD-600 Traffic Loop Detector with 4 Relays and 200m Loop Wiring for Parking Management System
LD-600 Traffic Loop Detector with 4 Relays and 200m Loop Wiring for Parking Management System
LD-600 Traffic Loop Detector with 4 Relays and 200m Loop Wiring for Parking Management System
LD-600 Traffic Loop Detector with 4 Relays and 200m Loop Wiring for Parking Management System
Specifications
Brand Name :
SINOMATIC
Model Number :
LD-600
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union,
Supply Ability :
3,0000pcs per month
Delivery Time :
2-5 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Model :
LD-600
Output relays :
240V/5A
Warranty :
1 year
Power consumption :
less than 5W
Loop connection wiring :
Maximum length 200 meters Twisted at least 20 times per meter
Output :
4 relays
Description
LD-600 Traffic Loop Detector With 4 Relays In Parking Management System
The LD-600 Traffic Loop Detector is designed for vehicle detection applications including access monitoring, security systems, and vehicle counting. The output signals control door drive mechanisms, operate barriers, activate card dispensers, and more.
Loop Installation Guide
After determining the loop geometry, cut a groove (5-8 mm wide, 30-50 mm deep) in the floor. We recommend cutting inclined grooves (45° angle) at corners to protect the wire from excessive wear. Clean the groove thoroughly, avoiding moisture, and run the loop wire tightly along the bottom. Use commercial copper strand (flexible, insulated, 1.5 mm diameter).
Application Scope
  • Parking lot entrance vehicle detection
  • Parking space information acquisition systems
  • Electronic traffic light snapshot systems
  • Traffic monitoring systems
Technical Specifications
TypeTLD-600 (double channel)
Operating Temperature-30°C to +75°C
Storage Temperature-40°C to +85°C
Relative Humidity≤95%
Shell MaterialPC + ABS engineering plastics
InstallationDIN rail
Dimensions110×60×100 mm (L×W×H)
Net Weight400g
Operating VoltageAC220V±10%
Power Consumption<5W
Relay OutputDC24V / 3A
Frequency Range20kHz to 170kHz
Reaction Time10 ms
Sensitivity10 grades adjustable
Loop InductanceIdeal 100µH-300µH, Max 50µH-1000µH

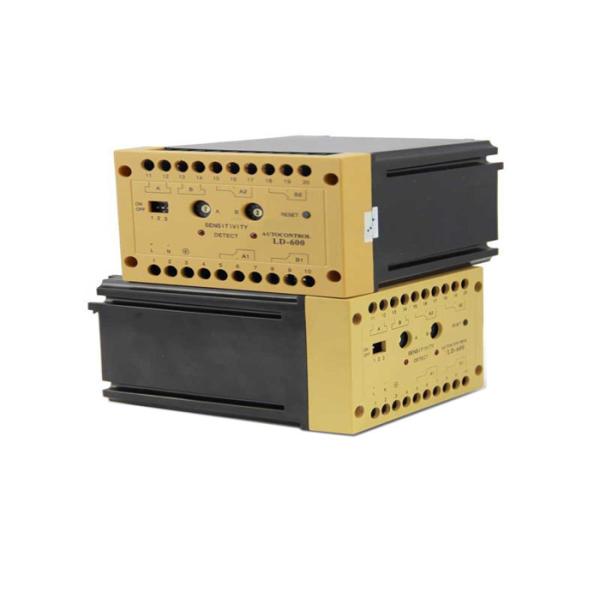

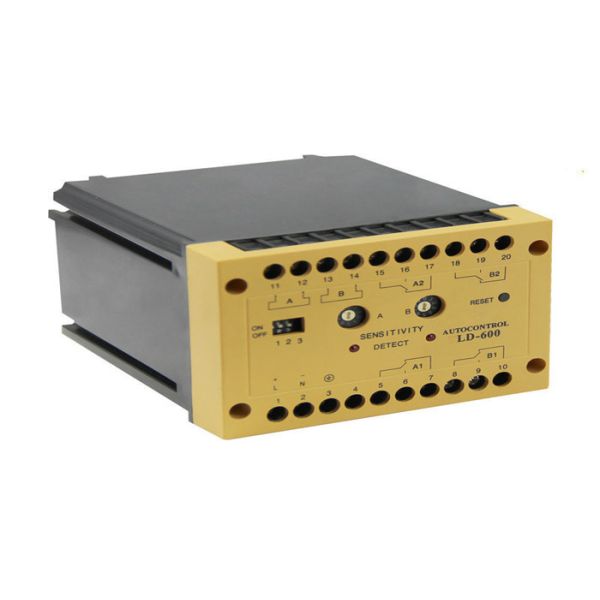

Product Display
LD-600 Traffic Loop Detector with 4 Relays and 200m Loop Wiring for Parking Management System
Product Flow and Packaging
LD-600 Traffic Loop Detector with 4 Relays and 200m Loop Wiring for Parking Management System LD-600 Traffic Loop Detector with 4 Relays and 200m Loop Wiring for Parking Management System
