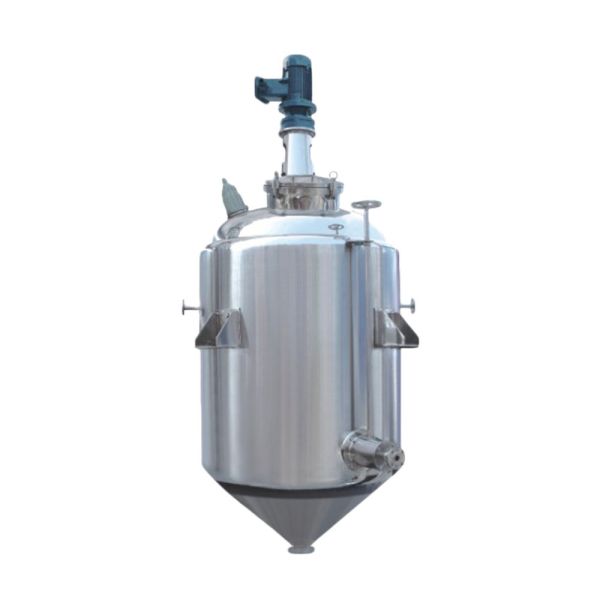

ODM Stainless Steel Steam Jacketed Tank Reactor

_{Product Application}

The ODM Stainless Steel Steam Jacketed Tank Reactor is one of the reaction equipment commonly used in medicine, chemical industry, etc. It is a kind of equipment that mixes two kinds (or more kinds) of liquids and solids of certain volume and promotes their chemical reaction by using the mixer under certain temperature and pressure. It is often accompanied by heat effect. The heat exchanger is used to input the heat required or move the heat produced out. The mixing forms include multi-purpose anchor type or frame type, so as to ensure even mixing of materials within a short period of time.

The mixing rotation speed adopts variable frequency speed adjustment. It is provided with temperature display or control.

To ensure that the material can be in the condition of asepsis, it is designed to be completely closed. The end plate cover (taper shape) has adopted rotating-pressure machining, according with GMP.

Main Parameters

Main Features

1) It adopts stainless steel 316L or 304, internal surface mechanical polishing, external wall adopt 304 full-steel welding structure insulation, external surface adopt mirror or matte treatment.

2) Jacket Type: adopt full jacket, semi-coil jacket, or dimple jacket

3) Insulation: adopt aluminum silicate, polyurethane, pearl wool, or rock wool.

4) Agitation System: adopt top centre-entry agitator or side-entry agitator.

Agitator Type: frame, anchor, paddle, turbine, propeller, etc.

Agitation Speed: 10~120r/min, or frequency speed.

5) Liquid Level Gauge: tubular glass level meter, or ball float type level meter.

6) Equipment Accessories: quick-open manhole, sight glass, inspection light, thermometer, sample nozzle, air breathing apparatus, CIP cleaning system, cleaning ball, liquid inlet/outlet nozzle, spare nozzle, cooling/hot solvent inlet/outlet nozzle

7) Vessel sterizing: online steam sterilizing (121℃)

8)Can be customized according to customers requirement and product processing.
