Industrial 1 SC Fiber 10 Gigabit Ethernet Switch 1 SC Fiber Port 10 RJ45 Ports
Industrial 1 SC Fiber 10 Gigabit Ethernet Switch 1 SC Fiber Port 10 RJ45 Ports
Industrial 1 SC Fiber 10 Gigabit Ethernet Switch 1 SC Fiber Port 10 RJ45 Ports
Industrial 1 SC Fiber 10 Gigabit Ethernet Switch 1 SC Fiber Port 10 RJ45 Ports
Industrial 1 SC Fiber 10 Gigabit Ethernet Switch 1 SC Fiber Port 10 RJ45 Ports
Industrial 1 SC Fiber 10 Gigabit Ethernet Switch 1 SC Fiber Port 10 RJ45 Ports
Specifications
Flow Control :
Full Duplex, Half duplex
Payment Terms :
T/T
Protection level :
IP40
Ethernet Port :
10*1000Mbps RJ45
Packaging Details :
1pcs/box
Power supply :
9-57V DC
Supply Ability :
10000pcs/Month
Delivery Time :
5-7 days
Operatingtemperature :
-40°C to 75°C
Enclosure material :
Aluminum Alloy
Description

Industrial Gigabit 1 SC Fiber 10 Ethernet Switch 1 SC Fiber Port + 10 RJ45 Ports DIN-Rail Industrial Fiber Optic Ethernet Switch

Product Overview

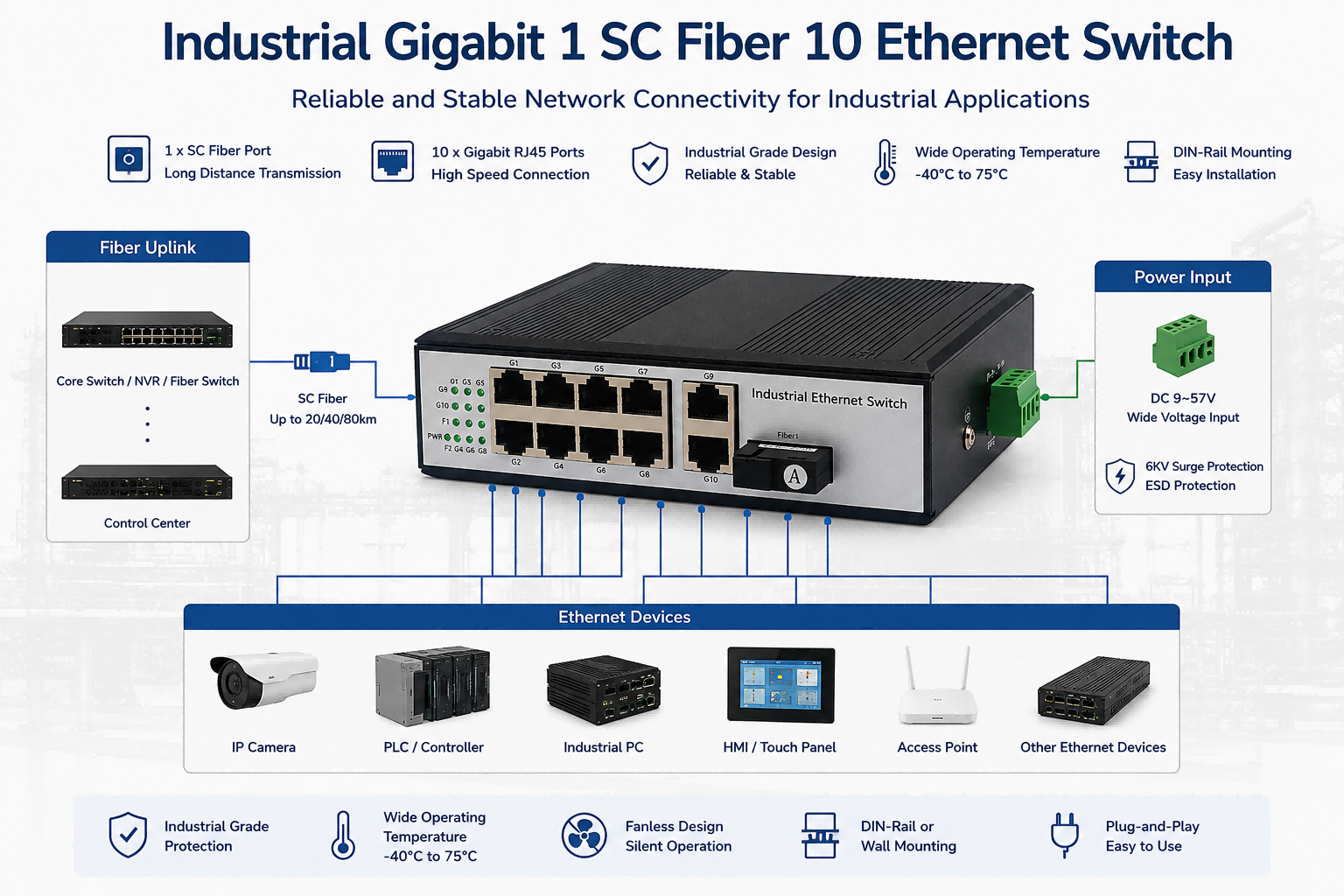

The Industrial Gigabit 1 SC Fiber 10 Ethernet Switch is designed for stable and long-distance industrial network communication. Featuring 1 Gigabit SC fiber uplink port and 10 Gigabit RJ45 Ethernet ports, this industrial fiber switch provides high-speed and reliable data transmission for industrial automation, security surveillance, intelligent transportation, and industrial IoT applications.

With industrial-grade protection, rugged metal housing, wide voltage input, and fanless cooling design, the switch ensures reliable operation in harsh industrial environments with extreme temperatures, vibration, dust, and electromagnetic interference.

Product Description

This Industrial Gigabit Fiber Ethernet Switch combines fiber optic transmission and Ethernet switching functionality in a compact industrial-grade design. Equipped with 1 x Gigabit SC fiber port and 10 x 10/100/1000Mbps RJ45 Ethernet ports, the switch supports high-speed data communication and long-distance fiber transmission.

The SC fiber interface provides stable optical connectivity for industrial backbone networks, helping extend network distance while maintaining reliable performance. Built with industrial-grade components and advanced EMC protection technology, the switch ensures continuous operation in demanding industrial applications.

Its fanless cooling structure, wide voltage DC power input, and DIN-rail mounting support make it ideal for factory automation, IP surveillance systems, power substations, smart transportation, and outdoor industrial networking projects.

Product Features

  • 1 x Gigabit SC Fiber Port
  • 10 x 10/100/1000Mbps RJ45 Ethernet Ports
  • Supports long-distance optical fiber transmission
  • Industrial-grade switching chipset for stable performance
  • Wide voltage DC power input (9V~57V DC)
  • 6KV surge protection and ESD protection
  • Rugged IP40 aluminum alloy housing
  • Fanless cooling design for silent operation
  • Supports DIN-rail and wall mounting installation
  • Wide operating temperature: -40°C to +75°C
  • Plug-and-play design for easy deployment
  • Reliable industrial Ethernet transmission

Product Specifications

Item Specification
Product Type Industrial Gigabit Fiber Ethernet Switch
Fiber Port 1 x Gigabit SC Fiber Port
Ethernet Ports 10 x 10/100/1000Mbps RJ45 Ports
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Transmission Mode Full/Half Duplex, Auto Negotiation
Switching Capacity 22Gbps
Packet Forwarding Rate 16.36Mpps
MAC Address Table 4K
Fiber Type Single-mode / Multi-mode Optional
Fiber Distance Up to 20km / 40km / 80km Optional
Optical Connector SC Connector
Power Input DC 9~57V Wide Voltage Input
Power Consumption < 10W
Surge Protection 6KV
ESD Protection ±8KV Contact / ±15KV Air
Housing Material Industrial Aluminum Alloy
Cooling Method Fanless Cooling
Installation DIN-Rail / Wall Mount
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Humidity 5%~95% Non-Condensing
Protection Level IP40
Certification CE, FCC, RoHS
MTBF >100,000 Hours
Warranty 3 Years
