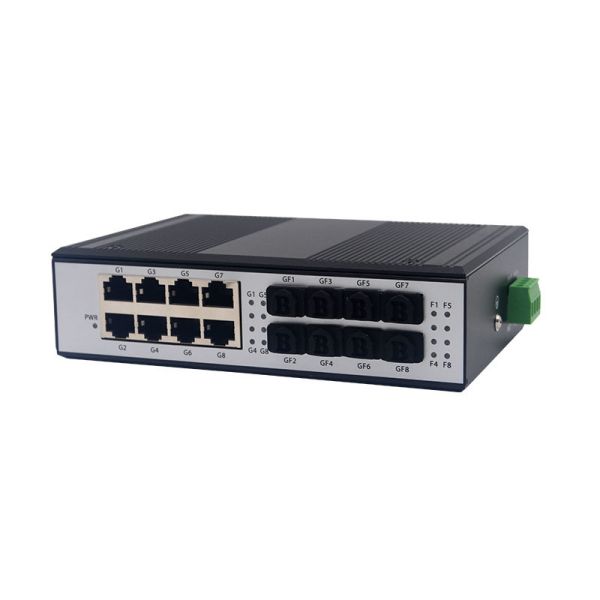

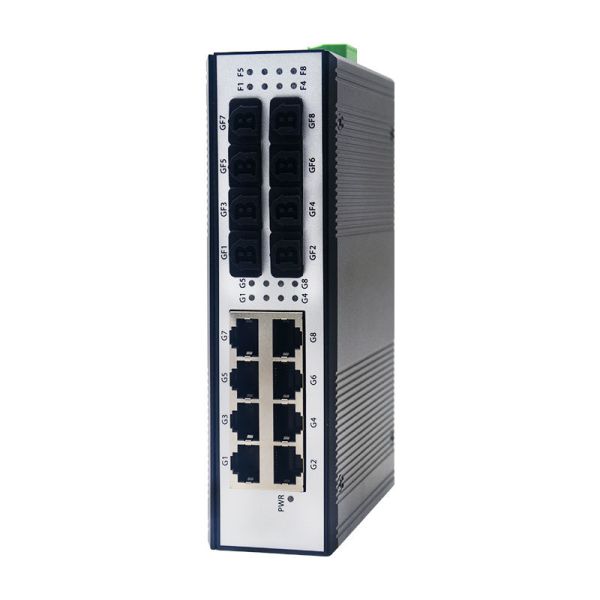

DC 9-57V Industrial Fiber Switch Gigabit 8 SFP Fiber Ports 8 RJ45 Ethernet Ports
DC 9-57V Industrial Fiber Switch Gigabit 8 SFP Fiber Ports 8 RJ45 Ethernet Ports
DC 9-57V Industrial Fiber Switch Gigabit 8 SFP Fiber Ports 8 RJ45 Ethernet Ports
DC 9-57V Industrial Fiber Switch Gigabit 8 SFP Fiber Ports 8 RJ45 Ethernet Ports
DC 9-57V Industrial Fiber Switch Gigabit 8 SFP Fiber Ports 8 RJ45 Ethernet Ports
DC 9-57V Industrial Fiber Switch Gigabit 8 SFP Fiber Ports 8 RJ45 Ethernet Ports
Specifications
Mounting Type :
DIN Rail/Wall Mount
Led Indicators :
Power, Link, Activity
Port Speed :
10/100/1000 Mbps
Fiber Port :
8*SFP
Power Supply :
DC 9-57V
Supply Ability :
10000pcs/Month
Payment Terms :
T/T
Packaging Details :
1pcs/box
Ethernet Port :
8*Gigabit RJ45
Model Number :
ATD-IDS8F8G-SFP
Flow Control :
Full Duplex, Half duplex
Warranty :
3 Years
Delivery Time :
5-7 days
Place of Origin :
CHINA
Description

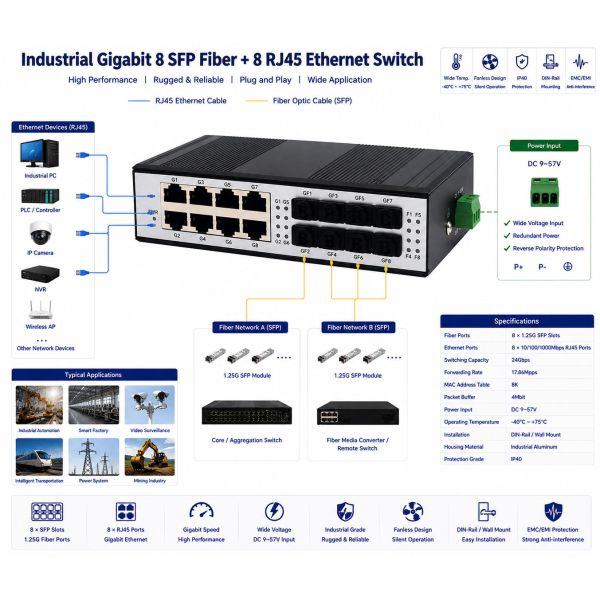

Industrial Switch Gigabit 8 SFP Fiber Ports 8 RJ45 Ethernet Ports

Product Overview

This industrial-grade Gigabit switch features 8 SFP fiber uplink ports and 8 RJ45 Ethernet interfaces, delivering stable and high-speed network performance. With a robust metal chassis, fanless cooling, and DC 9-57V wide voltage support, it is ideal for automation, surveillance, transportation, and industrial IoT systems.

Product Description

The Industrial Gigabit 8 SFP + 8 RJ45 Fiber Ethernet Switch is engineered for demanding industrial environments requiring high-performance, reliable network connectivity with extended fiber reach. Equipped with eight SFP optical interfaces and eight adaptive Gigabit Ethernet ports, it ensures efficient data transfer and long-distance optical communication.

Constructed with rugged aluminum alloy housing and a passive cooling system, the switch operates reliably under harsh conditions such as temperature extremes, vibration, dust, and electromagnetic interference. Its compact design allows DIN-rail or wall-mounted installation, offering flexible deployment in industrial cabinets, factory automation, and smart industrial facilities.

With wide-range DC 9-57V input and industrial-grade protection, this switch is widely applied in intelligent transportation, industrial automation, smart manufacturing, video surveillance, energy monitoring, and industrial IoT infrastructures.

Product Features

  • 8 × Gigabit SFP fiber uplink ports for long-distance optical connections
  • 8 × 10/100/1000Mbps adaptive RJ45 Ethernet interfaces
  • Modular SFP transceiver support
  • Industrial fanless cooling for silent and efficient operation
  • Wide DC 9-57V power input with redundant protection
  • Rugged industrial aluminum housing
  • DIN-rail and wall-mount installation supported
  • High resistance to EMI/EMC interference
  • Stable networking under harsh environmental conditions
  • Compact industrial form factor
  • Reverse polarity and overload protection
  • Suitable for automation, security, transportation, and IoT applications

Product Specifications

Specification Item Details
Device Type Industrial Gigabit Fiber Ethernet Switch
Fiber Ports 8 × 1.25G SFP Slots
Ethernet Ports 8 × 10/100/1000Mbps RJ45 Ports
Switching Mode Store-and-Forward
Total Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer 4Mbit
Network Standards IEEE 802.3 / 802.3u / 802.3ab / 802.3z
Fiber Transmission Distance Dependent on SFP Module
Power Input DC 9-57V
Power Protection Reverse Polarity & Overload Protection
Cooling System Passive Fanless
Housing Material Industrial Aluminum Alloy
Mounting Options DIN-Rail / Wall Mount
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Humidity 5%~95% Non-condensing
Protection Rating IP40
Device Dimensions Approx. 185 × 130 × 45mm

Typical Applications

  • Industrial automation systems
  • Smart factory and manufacturing networks
  • Video surveillance and security networks
  • Intelligent transportation systems
  • Energy and utility communication
  • Industrial IoT and edge networking
  • Mining and outdoor industrial deployments
  • Fiber backbone aggregation and remote connectivity
