DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
Specifications
Packaging Details :
1pcs/box
Working Distance :
20KM
Rate :
10/100/1000M
Place of Origin :
CHINA
Certification :
CE ROSH FCC ISO
Product name :
Industrial Fiber Switch
Model Number :
ATD-IDS1F2G-SC
Protectionlevel :
IP40
Operating temperature range :
-40°C to 85°C
Payment Terms :
T/T
Brand Name :
OEM
Delivery Time :
5-7 days
Supply Ability :
20000pcs/Month
Housing material :
Aluminum Alloy Metal
Description

Industrial Switch 1 SC Fiber Port 2 RJ45 Ports DIN-Rail Industrial Fiber Optic Ethernet Switch

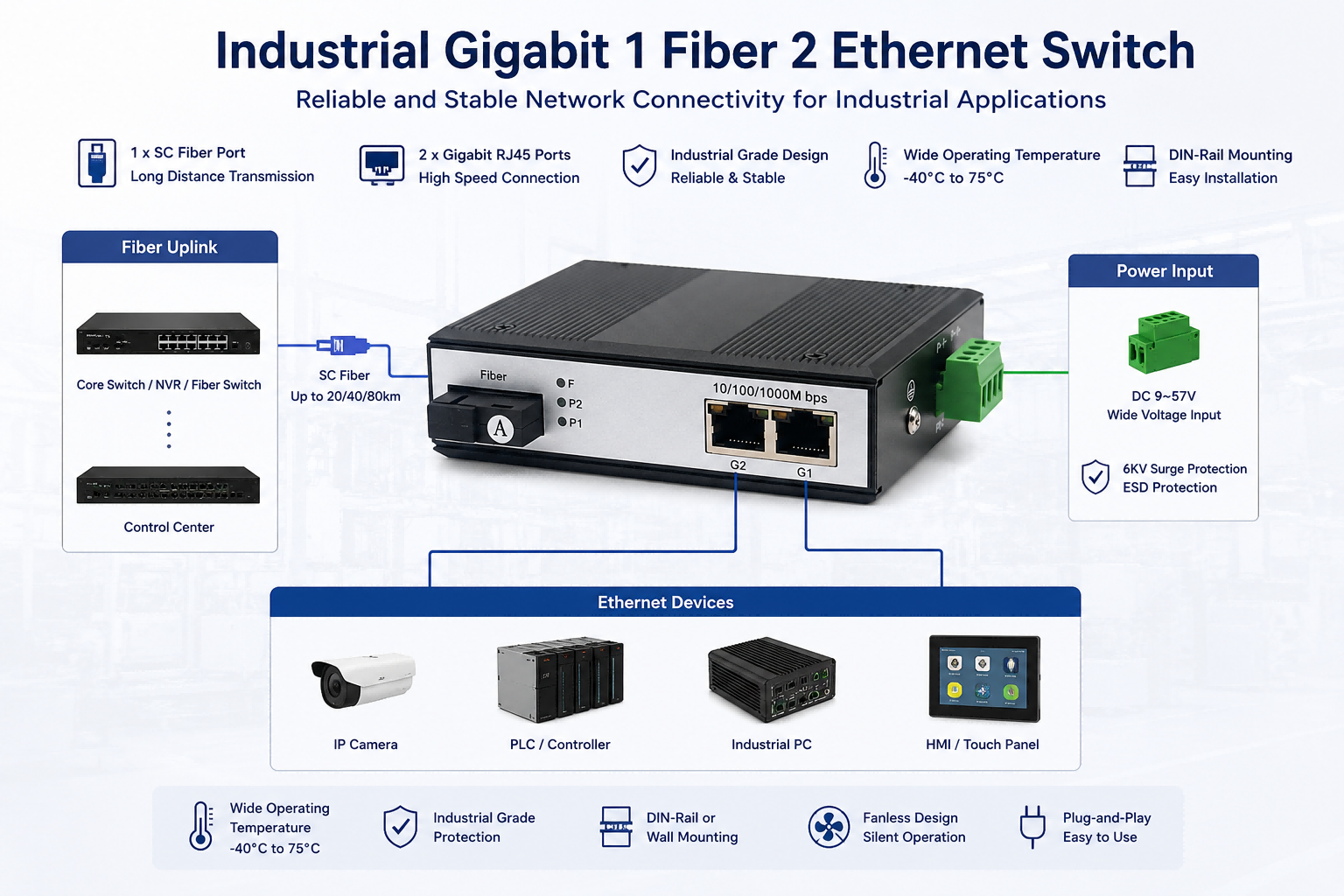

Product Overview

The Industrial Gigabit 1 Fiber 2 Ethernet Switch is designed for stable and long-distance industrial network communication. Featuring 1 Gigabit fiber uplink port and 2 Gigabit RJ45 Ethernet ports, this compact industrial switch provides reliable high-speed data transmission for factory automation, IP surveillance, transportation systems, and industrial IoT applications.

With industrial-grade protection, wide voltage input, fanless cooling, and rugged metal housing, the switch ensures dependable operation in harsh industrial environments with extreme temperatures, vibration, dust, and electromagnetic interference.

Product Description

This Industrial Gigabit Fiber Ethernet Switch combines fiber optic transmission and Ethernet switching functionality in a compact industrial design. Equipped with 1 Gigabit fiber port (SC or SFP optional) and 2 x 10/100/1000Mbps RJ45 ports, the switch supports high-speed network communication and long-distance fiber transmission.

Designed for industrial networking applications, the switch adopts industrial-grade components and advanced EMC protection technology to ensure stable operation in demanding environments. The fanless cooling structure and low power consumption provide reliable 24/7 operation with minimal maintenance.

Supporting DIN-rail and wall mounting installation, the switch is widely used in industrial automation systems, security monitoring, intelligent transportation, power systems, and outdoor communication projects.

Product Features

  • 1 x Gigabit Fiber Port (SC/SFP Optional)
  • 2 x 10/100/1000Mbps RJ45 Ethernet Ports
  • Supports long-distance fiber optic transmission
  • Industrial-grade switching chipset
  • Wide voltage DC power input (9V~57V DC)
  • 6KV surge protection and ESD protection
  • Fanless industrial cooling design
  • Compact IP40 aluminum alloy housing
  • Supports DIN-rail and wall mounting
  • Wide operating temperature range: -40°C to +75°C
  • Plug-and-play operation for easy installation
  • Stable and reliable industrial network transmission

Product Specifications

ItemSpecification
Product TypeIndustrial Gigabit Fiber Ethernet Switch
Fiber Port1 x Gigabit Fiber Port (SC/SFP Optional)
Ethernet Ports2 x 10/100/1000Mbps RJ45 Ports
Network StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Transmission ModeFull/Half Duplex, Auto Negotiation
Switching Capacity6Gbps
Packet Forwarding Rate4.46Mpps
MAC Address Table2K
Fiber TypeSingle-mode / Multi-mode Optional
Fiber DistanceUp to 20km / 40km / 80km Optional
Power InputDC 9~57V Wide Voltage Input
Power Consumption< 5W
Surge Protection6KV
ESD Protection±8KV Contact / ±15KV Air
Housing MaterialIndustrial Aluminum Alloy
Cooling MethodFanless Cooling
InstallationDIN-Rail / Wall Mount
Operating Temperature-40°C to +75°C
Storage Temperature-40°C to +85°C
Humidity5%~95% Non-Condensing
Protection LevelIP40
CertificationCE, FCC, RoHS
MTBF>100,000 Hours
Warranty3 Years

DIN Rail Industrial Fiber Optic Ethernet Switch 1 SC Fiber Port 2 RJ45 Ports
