IP40 Industrial Gigabit Switch 1 Gbps 1 Fiber 4 Ethernet Switch SC Fiber 4 RJ45 Ports
IP40 Industrial Gigabit Switch 1 Gbps 1 Fiber 4 Ethernet Switch SC Fiber 4 RJ45 Ports
IP40 Industrial Gigabit Switch 1 Gbps 1 Fiber 4 Ethernet Switch SC Fiber 4 RJ45 Ports
IP40 Industrial Gigabit Switch 1 Gbps 1 Fiber 4 Ethernet Switch SC Fiber 4 RJ45 Ports
IP40 Industrial Gigabit Switch 1 Gbps 1 Fiber 4 Ethernet Switch SC Fiber 4 RJ45 Ports
IP40 Industrial Gigabit Switch 1 Gbps 1 Fiber 4 Ethernet Switch SC Fiber 4 RJ45 Ports
Specifications
Fiber Port :
SC
Payment Terms :
T/T
Protectionlevel :
IP40
Ethernet port :
4*1000Mbps RJ45
Mountingt ype :
DIN Rail
Delivery Time :
5-7 days
Powersupply :
9-57V DC
Supply Ability :
20000pcs/Month
Datatransfer rate :
1 Gbps
Distance :
20KM
Packaging Details :
1pcs/box
Operating temperature range :
-40°C to 75°C
Description

Industrial Gigabit 1 Fiber 4 Ethernet Switch | 1 SC Fiber Port + 4 RJ45 Ports | DIN-Rail Industrial Fiber Ethernet Switch with Wide Voltage Input

Product Overview

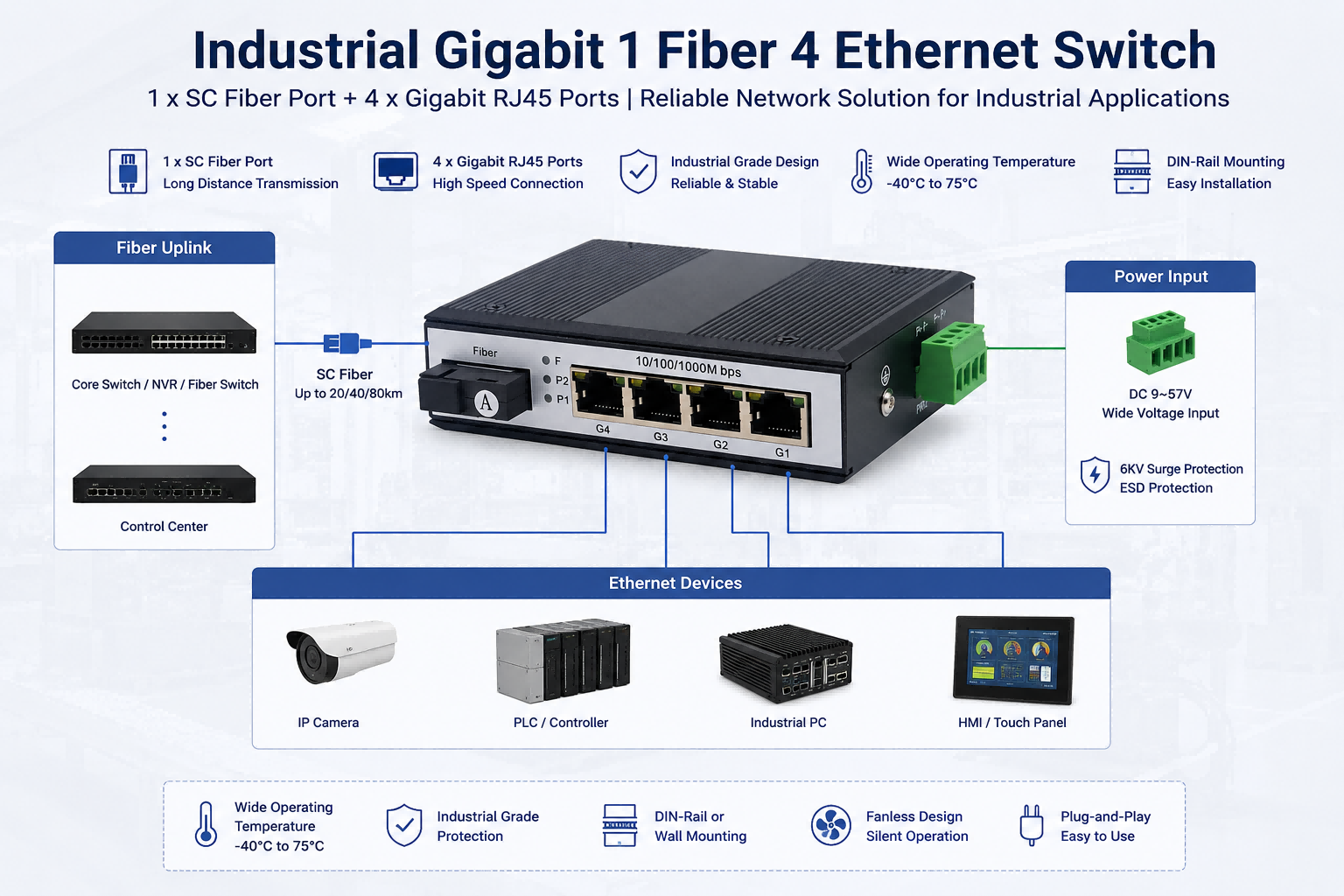

The Industrial Gigabit 1 Fiber 4 Ethernet Switch is designed for reliable long-distance data transmission in harsh industrial environments. Equipped with 1 Gigabit fiber uplink port and 4 Gigabit RJ45 Ethernet ports, this industrial-grade switch provides stable, high-speed network connectivity for industrial automation, IP surveillance, transportation systems, and smart city applications.

Featuring a rugged metal housing, wide temperature operation, surge protection, and fanless cooling design, the switch ensures dependable performance in demanding environments with vibration, dust, and electromagnetic interference.

Product Description

This Industrial Gigabit Fiber Ethernet Switch combines fiber optic transmission and Ethernet switching capabilities in a compact industrial design. The switch features 1 Gigabit fiber port (SFP/SC optional) and 4 x 10/100/1000Mbps RJ45 ports, supporting high-speed and long-distance network communication.

Designed for industrial networking applications, the switch supports stable operation under extreme temperatures and harsh electrical environments. The industrial-grade components and EMC protection help maintain reliable data transmission for mission-critical systems.

With wide voltage DC input, DIN-rail mounting support, and low power fanless operation, the switch is ideal for industrial automation, factory monitoring, security surveillance, intelligent transportation, and outdoor communication systems.

Product Features

  • 1 x Gigabit Fiber Port (SFP or SC Optional)
  • 4 x 10/100/1000Mbps RJ45 Ethernet Ports
  • Supports long-distance fiber optic transmission
  • Industrial-grade network chipset for stable performance
  • Wide voltage DC power input (9V~57V DC)
  • 6KV surge protection and ESD protection
  • Fanless low-power industrial design
  • Durable IP40 aluminum alloy housing
  • Supports DIN-rail and wall mounting installation
  • Operating temperature from -40°C to +75°C
  • Plug-and-play operation with easy deployment
  • Suitable for industrial automation and IP surveillance systems

Product Specifications

Item Specification
Product Type Industrial Gigabit Fiber Ethernet Switch
Fiber Port 1 x Gigabit Fiber Port (SFP/SC Optional)
Ethernet Ports 4 x 10/100/1000Mbps RJ45 Ports
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Transmission Mode Full/Half Duplex, Auto Negotiation
Switching Capacity 10Gbps
Packet Forwarding Rate 7.44Mpps
MAC Address Table 2K
Fiber Distance Up to 20km / 40km / 80km Optional
Fiber Type Single-mode / Multi-mode Optional
Power Input DC 9~57V Wide Voltage Input
Power Consumption < 6W
Surge Protection 6KV
ESD Protection ±8KV Contact / ±15KV Air
Housing Material Industrial Aluminum Alloy
Cooling Method Fanless Cooling
Installation DIN-Rail / Wall Mount
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Humidity 5%~95% Non-Condensing
Protection Level IP40
Certification CE, FCC, RoHS
MTBF >100,000 Hours
Dimensions Compact Industrial Design
Warranty 3 Years
