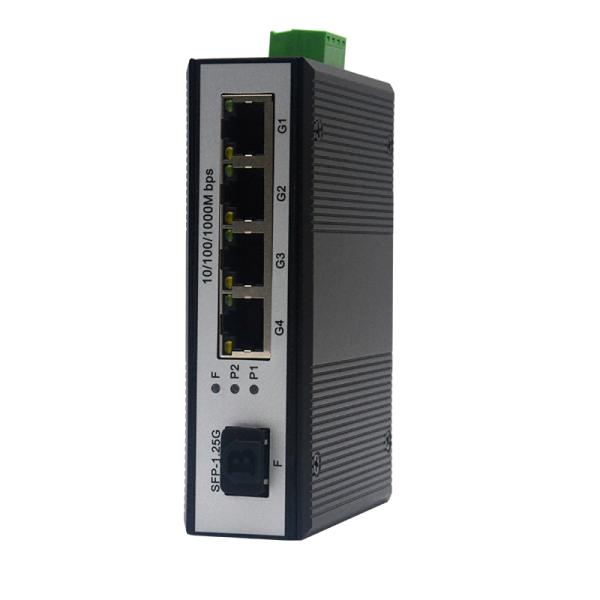

Industrial Fiber Optic Ethernet Switch Gigabit DIN Rail 1 SFP Slot 4 RJ45 Ports
Industrial Fiber Optic Ethernet Switch Gigabit DIN Rail 1 SFP Slot 4 RJ45 Ports
Industrial Fiber Optic Ethernet Switch Gigabit DIN Rail 1 SFP Slot 4 RJ45 Ports
Industrial Fiber Optic Ethernet Switch Gigabit DIN Rail 1 SFP Slot 4 RJ45 Ports
Industrial Fiber Optic Ethernet Switch Gigabit DIN Rail 1 SFP Slot 4 RJ45 Ports
Industrial Fiber Optic Ethernet Switch Gigabit DIN Rail 1 SFP Slot 4 RJ45 Ports
Specifications
Delivery Time :
5-7 days
Power Supply :
Dual Redundant DC9-57V
Data Rate :
10/100/1000Mbps
Packaging Details :
1pcs/box
Operating Temperature :
-40°C to 85°C
Supply Ability :
20000pcs/Month
Model Number :
ATD-IDS1F4G-SFP
Brand Name :
OEM
Port Type :
Gigabit Ethernet
Payment Terms :
T/T
Certification :
CE ROSH FCC ISO
Mounting :
DIN Rail
Fiber Wavelength :
850nm/1310nm/1550nm
Place of Origin :
CHINA
Description

Industrial Switch Gigabit 1 SFP Fiber 4 Ethernet Switch 1 SFP Slot 4 RJ45 Ports DIN-Rail Industrial Fiber Optic Ethernet Switch

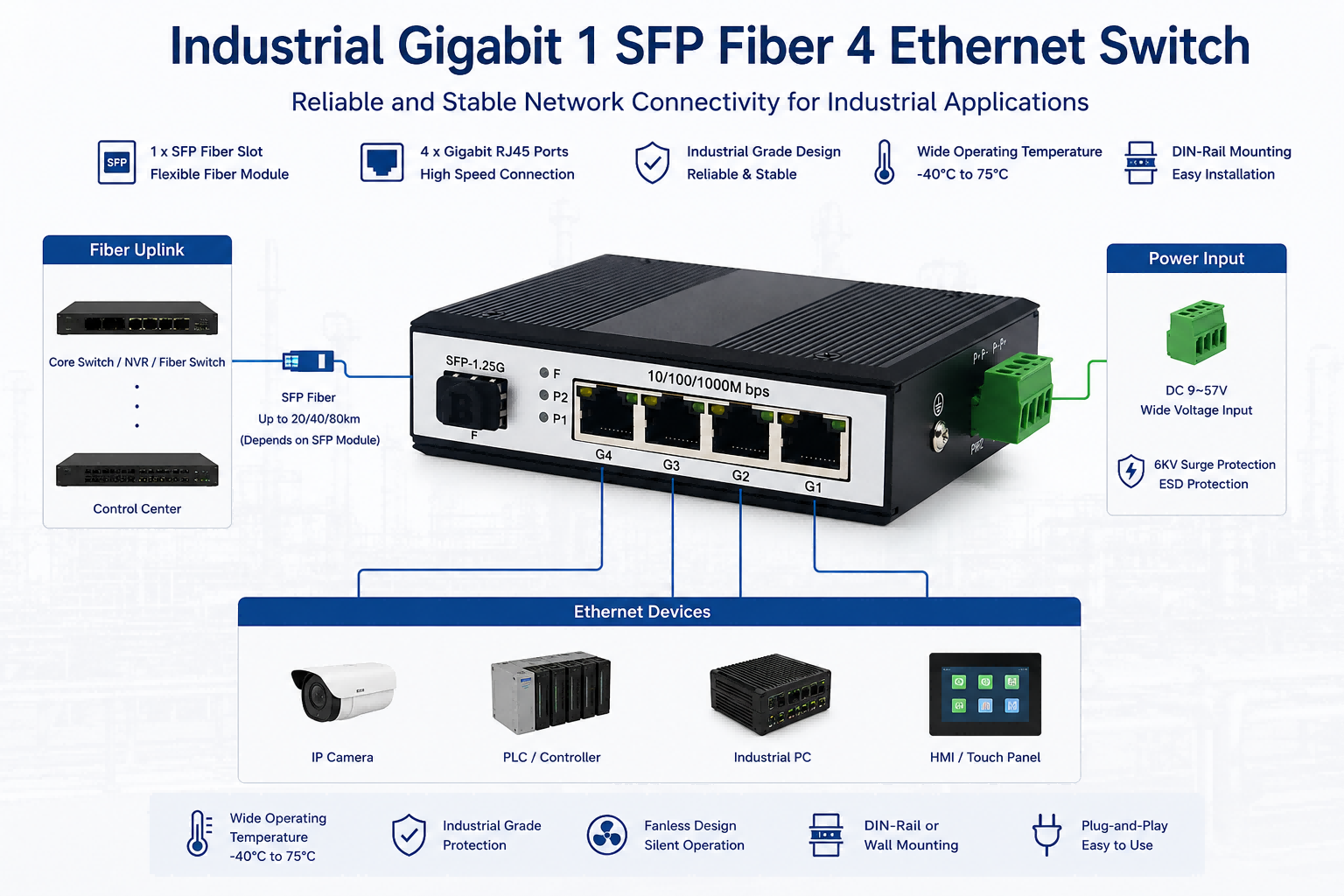

Product Overview

The Industrial Gigabit 1 SFP Fiber 4 Ethernet Switch features 1 Gigabit SFP fiber slot and 4 Gigabit RJ45 ports for stable long-distance industrial networking. Designed with wide voltage input, surge protection, fanless cooling, and rugged IP40 housing, it is ideal for industrial automation, CCTV, and industrial IoT applications.

Product Description

This Industrial Gigabit Fiber Ethernet Switch combines high-speed fiber transmission and Ethernet switching functionality in a compact industrial-grade design. Equipped with 1 x Gigabit SFP fiber slot and 4 x 10/100/1000Mbps RJ45 Ethernet ports, the switch delivers reliable and efficient network communication for industrial applications.

The SFP fiber slot supports flexible optical module selection, allowing users to choose different transmission distances and fiber types according to project requirements. Built with industrial-grade components and advanced EMC protection, the switch ensures stable operation in harsh industrial environments with vibration, dust, and electromagnetic interference.

Featuring wide voltage DC power input, fanless cooling, and DIN-rail mounting support, this switch is ideal for factory automation, IP surveillance systems, intelligent transportation, energy monitoring, and industrial Ethernet networking.

Product Features

  • 1 x Gigabit SFP Fiber Slot
  • 4 x 10/100/1000Mbps RJ45 Ethernet Ports
  • Flexible SFP optical module support
  • Supports long-distance fiber transmission
  • Industrial-grade switching chipset
  • Wide voltage DC input (9V~57V DC)
  • 6KV surge protection and ESD protection
  • Rugged IP40 aluminum alloy housing
  • Fanless cooling design for silent operation
  • Supports DIN-rail and wall mounting
  • Wide operating temperature range: -40°C to +75°C
  • Plug-and-play installation for easy deployment

Product Specifications

Item Specification
Product Type Industrial Gigabit Fiber Ethernet Switch
Fiber Port 1 x Gigabit SFP Slot
Ethernet Ports 4 x 10/100/1000Mbps RJ45 Ports
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Transmission Mode Full/Half Duplex, Auto Negotiation
Switching Capacity 10Gbps
Packet Forwarding Rate 7.44Mpps
MAC Address Table 2K
Supported Fiber Type Single-mode / Multi-mode
SFP Transmission Distance Depends on SFP Module
Power Input DC 9~57V Wide Voltage Input
Power Consumption < 6W
Surge Protection 6KV
ESD Protection ±8KV Contact / ±15KV Air
Housing Material Industrial Aluminum Alloy
Cooling Method Fanless Cooling
Installation DIN-Rail / Wall Mount
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Humidity 5%~95% Non-Condensing
Protection Level IP40
Certification CE, FCC, RoHS
MTBF >100,000 Hours
Warranty 3 Years

Typical Applications

  • Industrial Automation
  • Factory Ethernet Networks
  • IP Surveillance Systems
  • Intelligent Transportation
  • Industrial IoT Communication
  • Power & Energy Monitoring
  • Outdoor Fiber Networks
  • PLC & Machine Control Systems
