Specifications
Flow Control :
Full Duplex ,Half duplex
Model Number :
ATD-IDS1F2G-SFP
Supply Ability :
20000pcs/Month
Network Protocols Supported :
Ethernet/IP, Modbus TCP, PROFINET
Ethernet Port :
2*10/100/1000Mbps RJ45
Certification :
CE ROSH FCC ISO
Data Rate :
1000 Base-SX/LX, 10/100/1000 Base-T
Delivery Time :
5-7 days
Place of Origin :
CHINA
Mounting Type :
DIN Rail/Wall Mount
Payment Terms :
T/T
Packaging Details :
1pcs/box
Fiber Port :
SFP
Brand Name :
OEM
Description

Industrial Switch Gigabit 1 SFP Slot 2 RJ45 Ports DIN-Rail Industrial Fiber Ethernet Switch

Product Overview

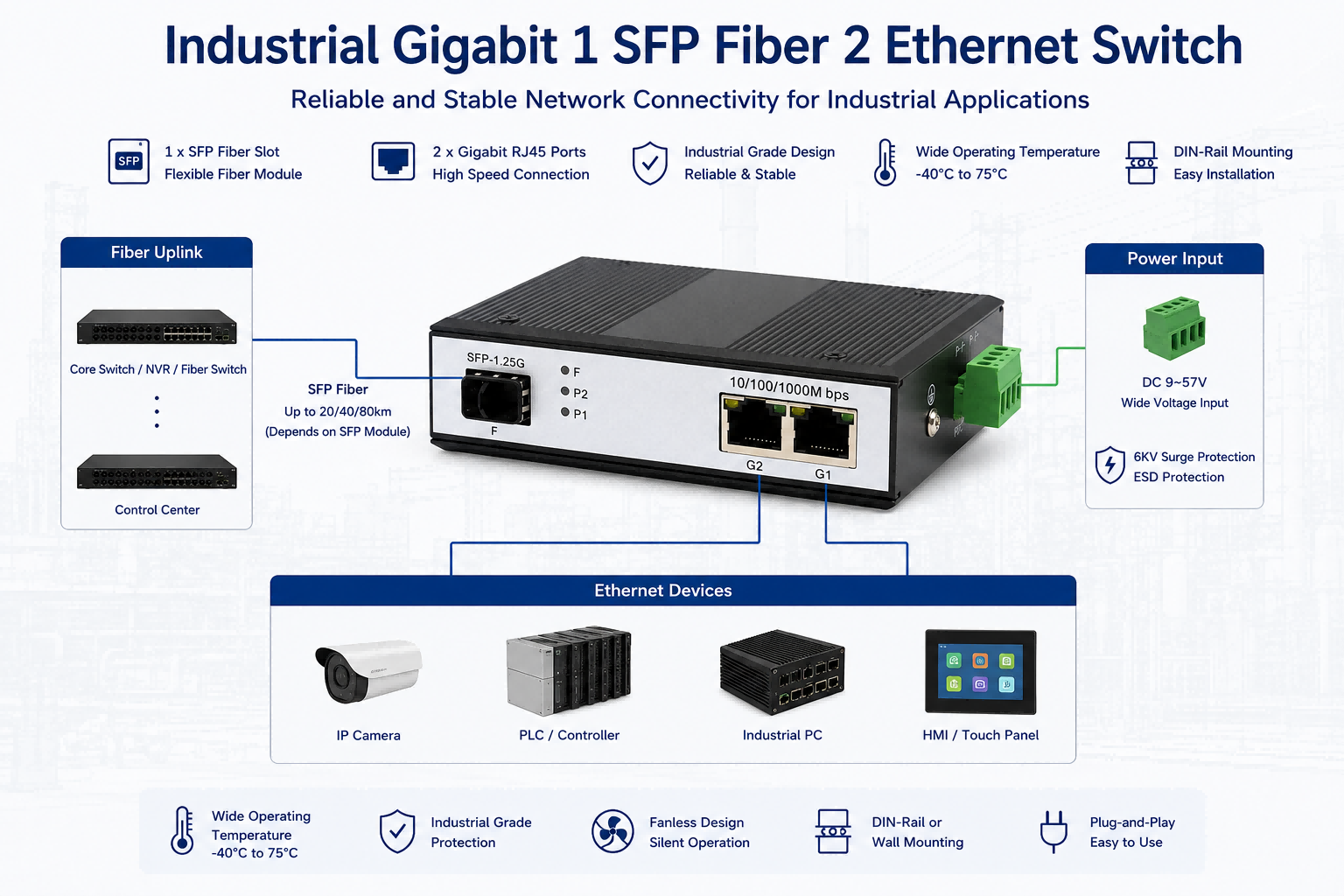

The Industrial Gigabit 1 SFP Fiber 2 Ethernet Switch features 1 Gigabit SFP fiber slot and 2 Gigabit RJ45 ports for stable long-distance industrial networking. Designed with wide voltage input, surge protection, fanless cooling, and rugged IP40 housing, it is ideal for industrial automation, CCTV, and industrial IoT applications.

Product Description

This Industrial Gigabit Fiber Ethernet Switch combines high-speed fiber transmission and Ethernet switching in a compact industrial-grade design. Equipped with 1 x Gigabit SFP fiber slot and 2 x 10/100/1000Mbps RJ45 Ethernet ports, the switch provides reliable long-distance network communication for industrial environments.

The SFP slot design offers flexible fiber module selection, supporting single-mode and multi-mode optical transmission for different networking requirements. Built with industrial-grade components and advanced EMC protection, the switch ensures stable operation in harsh environments with vibration, dust, and electromagnetic interference.

Featuring wide voltage DC input, fanless cooling, and DIN-rail mounting support, this switch is ideal for industrial automation systems, IP surveillance, intelligent transportation, factory networking, and outdoor communication projects.

Product Features

  • 1 x Gigabit SFP Fiber Slot
  • 2 x 10/100/1000Mbps RJ45 Ethernet Ports
  • Flexible SFP module support
  • Supports long-distance fiber transmission
  • Industrial-grade switching chipset
  • Wide voltage DC input (9V~57V DC)
  • 6KV surge protection and ESD protection
  • Rugged IP40 aluminum alloy housing
  • Fanless cooling design for silent operation
  • Supports DIN-rail and wall mounting
  • Wide operating temperature range: -40°C to +75°C
  • Plug-and-play installation for easy deployment

Product Specifications

Item Specification
Product Type Industrial Gigabit Fiber Ethernet Switch
Fiber Port 1 x Gigabit SFP Slot
Ethernet Ports 2 x 10/100/1000Mbps RJ45 Ports
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Transmission Mode Full/Half Duplex, Auto Negotiation
Switching Capacity 6Gbps
Packet Forwarding Rate 4.46Mpps
MAC Address Table 2K
Supported Fiber Type Single-mode / Multi-mode
SFP Transmission Distance Depends on SFP Module
Power Input DC 9~57V Wide Voltage Input
Power Consumption < 5W
Surge Protection 6KV
ESD Protection ±8KV Contact / ±15KV Air
Housing Material Industrial Aluminum Alloy
Cooling Method Fanless Cooling
Installation DIN-Rail / Wall Mount
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Humidity 5%~95% Non-Condensing
Protection Level IP40
Certification CE, FCC, RoHS
MTBF >100,000 Hours
Warranty 3 Years

Typical Applications

  • Industrial Automation
  • Factory Ethernet Networks
  • IP Surveillance Systems
  • Intelligent Transportation
  • Industrial IoT Communication
  • Power & Energy Monitoring
  • Outdoor Fiber Networks
  • PLC & Machine Control Systems
