Specifications
Brand Name :
ABB Kuka Fanuc
Model Number :
OPT-RW1000
Certification :
CE
Place of Origin :
CHINA
MOQ :
2
Price :
35000
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
6-8 WEEKS
Packaging Details :
Foam fixation+bubble film protection+wooden box
Warranty of core components :
1 Year
Wavelength :
1064nm
Laser Source Brand :
Raycus/IPG/Nlight/JPT/MAX
Laser type :
Fiber Laser Source
Dimensions :
1500*800*1250mm (L*W*H)
Focal Spot Diameter :
0.3-3mm
Weight (KG) :
450 KG
Welding speed range :
0~50 Mm/s
Description

ABB Kuka Fanuc 6 axis robot arm fiber laser welder robotic laser welding machine.Welding depth:0.04-6mm

Product Description

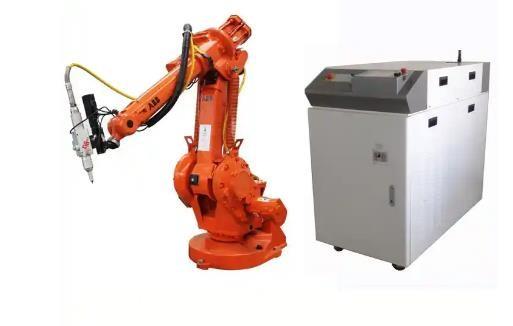

ABB Kuka Fanuc 6 axis robot arm fiber laser welder robotic laser welding machine
The laser robot processing system is an intelligent mechanical and electrical products integrating the six axis linkage, high flexibility and low cost of 3D robot. It can be used for welding, cutting, cladding and heat treatment of 3D space components with the application of fiber lasers. With highly flexible design, fiber laser robot processing system is widely used in various fields.
ABB Kuka Fanuc 6 axis robot arm fiber laser welder robotic laser welding machine
1.High efficient
2.Widely application for different type of work piece
3.Compact design
4.Flexible laser beam mounting
5.LED operation panel
6.User-friendly operation interface
7.Laser cavity with modern laser technology
8.Without alignment after changing the flash lamp
9.External chiller and inner cooling unit
10.Long-operation working time
11.OEM deign is available for mass purchasing
12.Various optional accessories for mul

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.


Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications

Product Name
ABB Kuka Fanuc 6 axis robot arm fiber laser welder robotic laser welding machine
Laser Type
fiber laser source
Laser Wave Length
1.064um
Maximum Power
1000-6000w(OPTIONAL)
Output stability
+/-5%
Laser transmission mode
Flexible fiber
Power supply
Triphase AC 380v
Maximum input power
12KW
Size
L750*W1620*H1340
Working table (optional)
Precision electrical slide working table, galvanometer working table; robot device
Positioning accuracy
0.01mm
Cooling system
Internal &external double circulation heat exchange
Heat exchange power
12.5KW
Quantity of fiber transmission branches
1-4
Storable laser type
32 types
Video monitoring(optional)
High-definition camera+14 inch monitor
Format supported
DWG,DXF,PLT,AI , etc
Weight
450KG

Product parameters table

Fiber Laser Welding Robot System ABB Kuka Fanuc 6 Axis Robot Arm Depth 0.04-6mmFiber Laser Welding Robot System ABB Kuka Fanuc 6 Axis Robot Arm Depth 0.04-6mmFiber Laser Welding Robot System ABB Kuka Fanuc 6 Axis Robot Arm Depth 0.04-6mm

Packaging and Transportation

Fiber Laser Welding Robot System ABB Kuka Fanuc 6 Axis Robot Arm Depth 0.04-6mm

Fiber Laser Welding Robot System ABB Kuka Fanuc 6 Axis Robot Arm Depth 0.04-6mm
