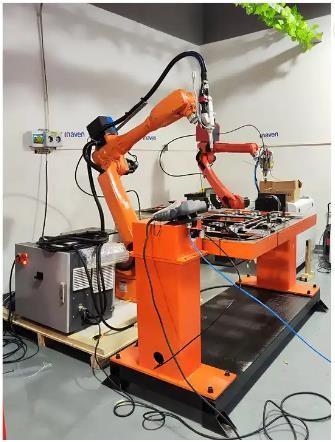

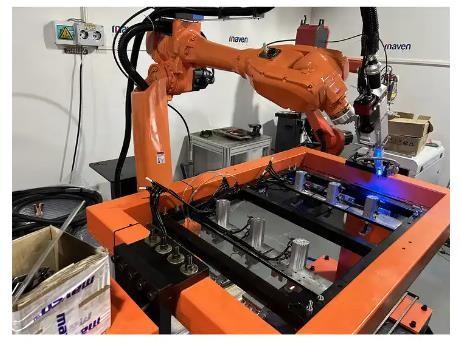

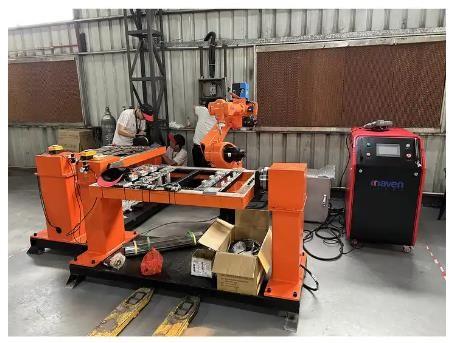

2000W Automatic Fiber Laser Welding Robot System 6 Axis Laser Soldering Machine For Metal Aluminum
2000W Automatic Fiber Laser Welding Robot System 6 Axis Laser Soldering Machine For Metal Aluminum
2000W Automatic Fiber Laser Welding Robot System 6 Axis Laser Soldering Machine For Metal Aluminum
2000W Automatic Fiber Laser Welding Robot System 6 Axis Laser Soldering Machine For Metal Aluminum
2000W Automatic Fiber Laser Welding Robot System 6 Axis Laser Soldering Machine For Metal Aluminum
2000W Automatic Fiber Laser Welding Robot System 6 Axis Laser Soldering Machine For Metal Aluminum
2000W Automatic Fiber Laser Welding Robot System 6 Axis Laser Soldering Machine For Metal Aluminum
2000W Automatic Fiber Laser Welding Robot System 6 Axis Laser Soldering Machine For Metal Aluminum
Specifications
Brand Name :
YOUNGYOU
Model Number :
MR20E-1840
Certification :
CE
Place of Origin :
CHINA
MOQ :
2
Price :
35000
Payment Terms :
L/C, T/T
Supply Ability :
20sets/month
Delivery Time :
6-8 WEEKS
Packaging Details :
Foam fixation+bubble film protection+wooden box
Warranty of core components :
1 Year
Dimensions :
1300*1200*1250(mm)
Laser wavelength :
1064nm
Welding depth :
0.1 - 6mm
Power Supply :
220V/380V 50HZ/60Hz
Max laser power :
2000w Laser Welding
Weight (KG) :
360 KG
Control System Brand :
Self-developed brand
Description

2000W Automatic 6 Axis Laser Soldering Machine for Metal Aluminum Welding Fiber Robot Laser Welding Machine

Main Interface
The setting interface includes "Tool Calibration", "User coordinate, "system Setup", "Remote Proc", "Reset point ", "IO", "Robot parameter", "Positioner", “an computer cooper”, "modbus settings", "Background task", "Network settings", "Data upload", "Program self-start", and "Operating parameters". To enter these 15 interfaces, please select the corresponding icon in the main content area of the setting interface.
Robot Parameters
The main interface of robot parameters includes "Robot range", "Zero position", "DH Parameter", "Joint parameter", "Descartes parameter", "Jog speed", "Motion Parameter", "Slave configuration", " Servo parameters", "NP parameter", "interference range", "following error" ,"Cooperative robot " operation.

Six Advantages Professional Welding
No professional welder Excellent processing quality
Good processing effect Wide application range
Easy to operate Multiple operation modes
Low cost of use, no need to spend high labor costs, no need tospend high training costs
High welding solidity, small deformation of workpiece, no weldingscar, beautiful welding seam
Fast welding speed, high degree of automation, 5 times higherwork efficiency
Stainless steel, iron, galvanized steel, aluminum, aluminum alloy.carbon steel, sheet metal, aluminum and other metal materialscan be welded
Programming through the control handle to complete the weldingparameters settings, easy to operate and save time and effort
Adapts to all kinds of complex products welding, sputtering, stackwelding, fillet welding, standing welding, etc.

About the company

Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.


Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!


Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China


Product specifications

Robot Arm Main Machine Standard Specifications
Model
MR20E-1840
Number of Axis
6 Axis
Radius of Movement
1840 mm
Effective Payload
20 KG
Protection Grade
J1,J2 Axis IP56 (J3,J4J5,J6 Axis IP67)
Mounting Method
Floor Type / Bracket Type / Upside Down
Power Capacity
4.5K VA
Input/output Signal
Standard 16 in/16 out 24VDC
Robot Weight
260 KG
Repeat Positioning Accuracy
± 0.08
Movement range
1 Axis S
± 167°
2 Axis L
+ 92° to - 150°
3 Axis U
+ 110° to - 85°
4 Axis R
± 150°
5 Axis B
+ 20° to 200°
6 Axis T
± 360°
Movement speed
1 Axis S
200°/s
2 Axis L
198°/s
3 Axis U
163°/s
4 Axis R
296°/s
5 Axis B
333°/s
6 Axis T
333°/s
Application
Aerospace equipment, shipbuilding, instrumentation, hardware and jewelry, digital accessories, precision machinery, automotive manufacturing and other industries
4-Axis R (N.M)
103.5
5 axis S (N.M)
101.6
6-Axis T (N.M)
63.5
Built-in Air Tube
Φ 10
Mounting Method
Ground, Wall, Tilt, Upside down
Mounting Environment
Temperature 0-45℃, humidity 20-80%RH (no condensation), vibration acceleration below 4.9m/S2 (0.5G), altitude below 1000m
Control Cabinet
Size
650 (width) * 495 (height) * 580(length) (mm)
Weight
80 KG
Cooling method
Direct Cooling
Power supply specification
Three-phase AC380V 50/60HZ (built-in AC380V to AC220V isolation transformer)
Grounding
Industrial grounding (grounding resistance below 100Ω special grounding)
Input and output signal
Universal signal: input 16 output 16 (16 into 16 out) two 0-10V analog output
Position control direction
Serial communication method EtherCAT.TCP/IP
RAM capacity
JOB:200000 steps,10000 robot commands(200M in total)
LAN (upper connection)
Ethercat (one) TCP/IP (one)
Serial port I/F
RS485(one) RS422(one) RS232(one) CAN interface(one) USB interface(one)
Control method
Software servo <position control>
Drive unit
Servo package for AC servo (total 6 axes), external axes can be added
Peripheral temperature
Power on is: 0-+45℃, when keeping: -20+60℃
Relative humidity
10%-90% (no condensation)
Altitude
Altitude below 1000m, more than 1000m, the maximum surrounding temperature decreases by 1% for every 100m, and can be used up to
2000m
Vibration
Below 0.5G

Product parameters table

Automotive
Automotive body welding, automotive precision parts welding
Medical Instruments
Welding of medical instruments and equipment parts
Sheet Metal Maching
Welding of steel plates and tubes, sheet metal welding of different metal materials
