Fanuc Laser Welder Robot Servo Spot Welding Grab Changer
Fanuc Laser Welder Robot Servo Spot Welding Grab Changer
Fanuc Laser Welder Robot Servo Spot Welding Grab Changer
Fanuc Laser Welder Robot Servo Spot Welding Grab Changer
Fanuc Laser Welder Robot Servo Spot Welding Grab Changer
Fanuc Laser Welder Robot Servo Spot Welding Grab Changer
Specifications
Brand Name :
JL
Model Number :
21011
Certification :
CE
Place of Origin :
CHINA
MOQ :
2
Price :
999 USD
Payment Terms :
L/C
Supply Ability :
100/month
Delivery Time :
5-8days
Packaging Details :
Foam protection+carton packaging
Maximum load :
500kg
Maximum bending moment :
5 0 0 0Nm
Maximum torque :
5 0 0 0Nm
Locking time :
Less than 0.5m
Coupling thickness :
100mm
Repeatability :
+/ - 0 . 0 2 5mm
Weight - robot side (body) :
6.8kg
Weight - tool side (body) :
4.8kg
Power loss protection :
YES
Non-destructive mechanical forced disassembly function :
YES
Description

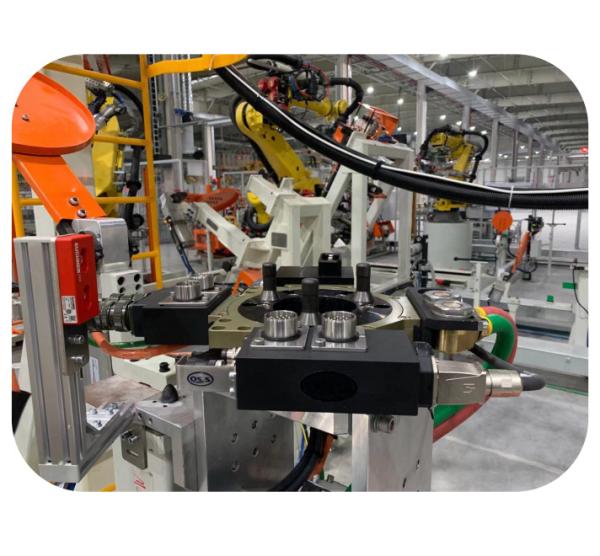

Grab changer in FANUC robot Servo spot welding process has power-off protection

It can be widely used in spot welding, spot welding+transportation, transportation and other applications. It can replace expensive brands and ati's replacement.
The adaptability is very good. It can adapt to famous robot brands such as abb, kuka and fanuc.

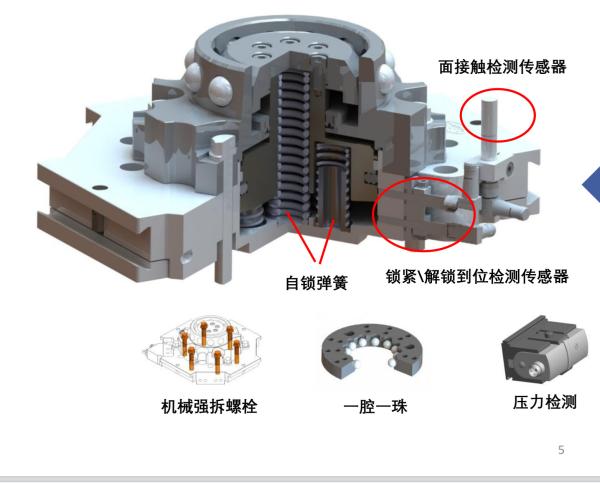

1. After the main and auxiliary discs are locked, the required air pressure must be maintained to ensure that the steel ball is locked under the pressure in the piston. When the air pressure decreases or suddenly stops (lower than the set value), the locking pressure detection sensor signal feedback, and the control system immediately stops.

2. When the air pressure decreases or "air pressure" is lost, the compression spring is always in the locking position to keep the locking steel ball in the locking position, so as to prevent the main and auxiliary panels from being disengaged.

3. The locking spring is divided into a main spring and a secondary spring. Even when the main spring loses its elasticity, the auxiliary spring can firmly lock the auxiliary disc.

4. In the locking state (cylinder extended), when the solenoid valve for changing the gun disc is suddenly powered off, the air circuit of the solenoid valve remains in the locking air channel state, and the steel ball remains locked under the action of air pressure and spring.

Fanuc Laser Welder Robot Servo Spot Welding Grab Changer

Fanuc Laser Welder Robot Servo Spot Welding Grab Changer

Fanuc Laser Welder Robot Servo Spot Welding Grab Changer

Fanuc Laser Welder Robot Servo Spot Welding Grab Changer

Fanuc Laser Welder Robot Servo Spot Welding Grab Changer

Fanuc Laser Welder Robot Servo Spot Welding Grab Changer

Fanuc Laser Welder Robot Servo Spot Welding Grab Changer
