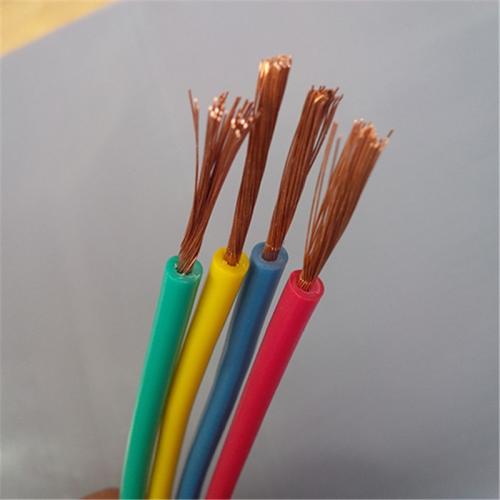

300 / 500V RV PVC Electrical Cable Flexible Copper Conductor PVC Insulated Wire
300 / 500V RV PVC Electrical Cable Flexible Copper Conductor PVC Insulated Wire
Specifications
Brand Name :
UNI-CABLES
Model Number :
RV
Certification :
CCC,ISO9001
Place of Origin :
CHINA
MOQ :
100 Rolls
Price :
Negotiable
Supply Ability :
10000 Rolls per Week
Packaging Details :
100 Meters per Roll
Conductor :
Class 2 stranded copper conductor
Insulation :
PVC 70°C
Voltage Rating (Uo/U) :
300/500V
Temperature Rating :
Fixed: 0°C to +70°C
Minimum Bending Radius :
6 x overall diameter
Insulation Colour :
Red Black Blue Yellow Orange White Green/Yellow Grey Brown Violet Pink
Description

300/500V RV PVC Electrical Wire Flexible Copper Conductor PVC Insulated Wire

APPLICATION

These cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc.and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.

Operating Characteristic

1) The rated voltage U0/U: 450V/750

2) The long time allowable working temperature of conductor is not more than 70 °C

3) The ambient temperature for installation is no less than 0 °C.

4)The bending radius of a cable should not be less than 4 times of cable overall diameter below 25mm

and 6 times of that for cable overall diameter no less than 25mm.

Product Description:
1. 1.5-4mm2 stranded soft annealed copper
2. Passed GB/T 18380.12-2008 flanme test
3. Resistant toacids,alkalies,moisture and fungus

DIMENSIONS

Type Conductor Insulation MaximumResistance at20℃ Ω/km
Sectional Cross construction Dia. mm Nom.Thick.mm Dia.mm
60227IEC 02(RV)450/750V 1.5 30/0.25 1.58 0.75 3.1 13.3
48/0.20 1.6
2.5 49/0.25 2.02 0.85 3.7 7.98
4 56/0.30 2.59 0.85 4.3 4.95
6 84/0.30 3.18 0.85 5 3.3

300 / 500V RV PVC Electrical Cable Flexible Copper Conductor PVC Insulated Wire
