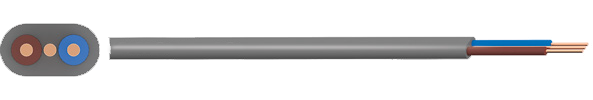

Grey Galvanized Steel Armoured Cable , Domestic Industrial Armoured Flexible Cable
Grey Galvanized Steel Armoured Cable , Domestic Industrial Armoured Flexible Cable
Specifications
Brand Name :
UNI-CABLES
Model Number :
6242Y
Certification :
CCC,ISO9001
Place of Origin :
CHINA
MOQ :
100 Rolls
Price :
US$0.12-2.5 per Meter
Supply Ability :
10000 Rolls per Week
Packaging Details :
100 Meters per Roll
Voltage Rating (Uo/U) :
300/500V
Temperature Rating :
-5°C to +70°C
Short Circuit :
+160°C
Minimum Bending Radius :
x overall diameter
Sheath Colour :
Grey
Conductor :
4mm² to 16mm²: Class 2 stranded conductor
Insulation :
PVC (Polyvinyl Chloride)
Sheath :
PVC (Polyvinyl Chloride)
Description

BS 6004 Cable Fixed Wiring Cable Type 624Y Twin and Earth PVC Cable

Grey Galvanized Steel Armoured Cable , Domestic Industrial Armoured Flexible Cable

APPLICATION

Domestic wiring cable. Can be installed in fixed installations

in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue. Suitable for laying in conduit or trunking where mechanical protection is required.

CONSTRUCTION

Conductor

Copper conductor according to BS EN 60228 (previously BS 6360)

1mm² to 2.5mm²: Class 1 solid conductor 4mm² to 16mm²: Class 2 stranded conductor

Circuit Protection Conductor (Earth)

1mm² to 2.5mm²: Class 1 solid copper conductor 4mm² to 16mm²: Class 2 stranded copper conductor

Insulation

PVC (Polyvinyl Chloride) Type TI1 according to BS EN 50363

Sheath

PVC (Polyvinyl Chloride) Type 6 according to BS 7655

CABLE STANDARDS

BS 6004 Table 4

CHARACTERISTICS

Voltage Rating (Uo/U) 300/500V

Temperature Rating

-5°C to +70°C

Short Circuit : +160°C

Minimum Bending Radius

Fixed: 6 x overall diameter

DIMENSION

UNIQUE PART NO. NO. OF CORES NOMINAL CROSS SECTIONAL AREA CONDUCTOR CLASS CROSS SECTIONAL AREA OF EARTH CONDUCTOR NOMINAL THICKNESS OF INSULATION NOMINAL THICKNESS OF SHEATH NOMINAL OVERALL DIMENSIONS NOMINAL WEIGHT
mm² mm² mm mm mm kg/km
UNBVVB2X1WG 2 1 1 1 0.6 0.9 4.35 x 7.95 68
UNBVVB2X1.5WG 2 1.5 1 1 0.7 0.9 4.85 x 8.9 87
UNBVVB2X2.5WG 2 2.5 1 1.5 0.8 1 5.65 x 10.65 120
UNBVVB2X4WG 2 4 2 1.5 0.8 1 6.3 x 11.95 172
UNBVVB2X6WG 2 6 2 2.5 0.8 1.1 7.1 x 13.7 235
UNBVVB2X10WG 2 10 2 4* 1 1.2 8.7 x 17.25 373
UNBVVB2X16WG 2 16 2 6* 1 1.3 9.85 x 20 530
UNBVVB3X1WG 3 1 1 1 06 0.9 4.35 x 9.8 91
UNBVVB3X1.5WG 3 1.5 1 1 0.7 0.9 4.85 x 11.2 115

CONDUCTORS

Class 1 Solid Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²		 MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Plain Wires
ohms/km
1 18.1
1.5 12.1
2.5 7.41

Class 2 Stranded Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²		 MINIMUM NO. OF WIRES IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Annealed Copper Conductor
Circular Plain Wires
ohms/km
4 7 4.61
6 7 3.08
10 7 1.83
16 7 1.15

ELECTRICALCHARACTERISTICS

Current Carrying Capacity and Voltage Drop

NOMINAL CROSS SECTIONAL AREA
mm²		 REFERENCE METHOD A* (IN CONDUIT IN WALL)
Amps		 REFERENCE METHOD C* (CLIPPED DIRECT)
Amps		 VOLTAGE DROP
mv/A/m
1 11.5 16 44
1.5 14.5 20 29
2.5 20 27 18
4 26 37 11
6 32 47 7.3
10 44 64 4.4
16 57 85 2.8

Note

A* For full installation method refer to Table 4A2 Installation Method 2 but for flat twin and earth cable of the 17th Edition of IEE Wiring Regulations.

C* For full installation method refer to Table 4A2 Installation Method 20 but for flat twin and earth cable of the 17th Edition of IEE Wiring Regulations.
