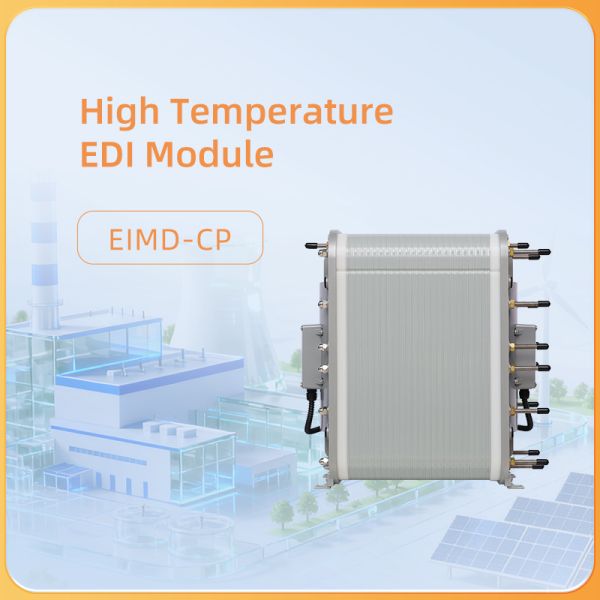

Condensate Polishing Electrodeionization Module Water Treatment 90-95% High Recovery Rate
Condensate Polishing Electrodeionization Module Water Treatment 90-95% High Recovery Rate
Specifications
Operating temperature range :
Up to 120 °C
Product name :
High Temperature EDI Module
Dimensions :
500 x 200 x 150 mm
Electrical conductivity range :
0.1 - 10 µS/cm
PH range :
3 - 11
Place of Origin :
China
Installation type :
Inline or skid-mounted
Outlet water quality :
Ultra-pure water with < 0.1 µS/cm conductivity
Brand Name :
Aquacells
Model Number :
EIMD-30CP
Certification :
FDA，EU，CE，RoHS，REACH
Power consumption :
50 W
Membrane type :
High temperature resistant ion exchange membranes
Material :
Stainless steel and high temperature polymers
Maintenance interval :
Every 12 months
Weight :
12 kg
Inlet water quality :
Feed water with < 1000 µS/cm conductivity
Maximum pressure :
10 bar
Flow rate :
0.5 - 5 m³/h
Description
EIMD-30CP Condensate Polishing Module with 16 MΩ*cm Resistivity Using Continuous Electrodeionization for 90-95% Recovery
EIMD-CP Modules

The Aquacells EIMD-CP module is developed to replace mixed bed technology for condensate polishing treatment. The module utilizes continuous electrodeionization (EDI) technology to produce water with a resistivity exceeding 16 MΩ*cm without the need for shutdown and regeneration.

Feed Water Specifications
Feed Water Source Condensate water
Temperature 60-65 ℃ (140-149 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Fe <0.01 ppm
pH 4-11
Oil <0.2 ppm
Typical Module Performance
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 65 ℃ (149 ℉)
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >16 MΩ·cm

*Voltage required depends on module size

The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
