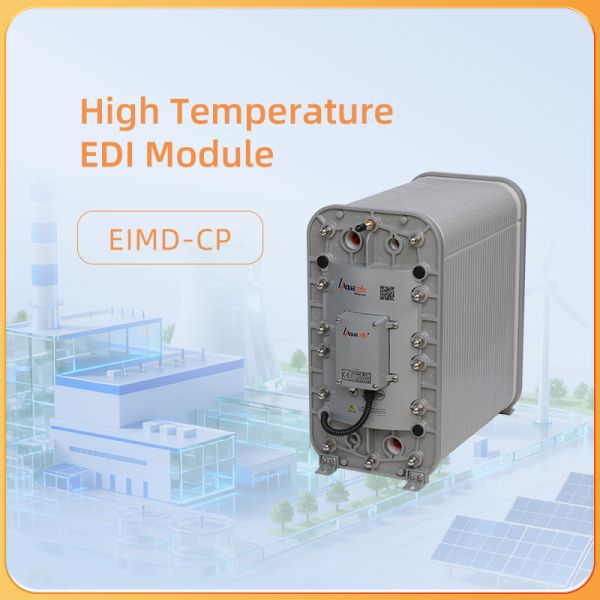

Condensate Polishing EDI Module > 16 MΩ*Cm Resistivity Using Continuous Electrodeionization
Condensate Polishing EDI Module > 16 MΩ*Cm Resistivity Using Continuous Electrodeionization
Specifications
PH range :
2 - 11
Place of Origin :
China
Weight :
5 kg
Product name :
High Temperature EDI Module
Membrane type :
Ion Exchange Membrane
Conductivity :
< 0.055 µS/cm
Resistivity :
18.2 MΩ·cm
Material :
High-grade polymer and stainless steel
Application :
High purity water production for industrial processes
Power consumption :
30 W
Model Number :
EIMD-10CP
Dimensions :
300 x 150 x 120 mm
Brand Name :
Aquacells
Flow rate :
0.5 - 5 m³/h
Operating temperature range :
Up to 95 °C
Installation type :
Inline
Certification :
FDA，EU，CE，RoHS，REACH
Maximum pressure :
6 bar
Maintenance interval :
12 months
Description
EIMD-10CP Condensate Polishing Module with 16 MΩ*cm Resistivity and 90-95% Recovery Using Continuous Electrodeionization

The Aquacells EIMD-CP module is engineered to replace mixed bed technology for condensate polishing treatment. Utilizing continuous electrodeionization (EDI) technology, this system produces water with resistivity exceeding 16 MΩ·cm without requiring shutdown and regeneration cycles.

Feed Water Specifications
Parameter Specification
Feed Water Source Condensate water
Temperature 60-65 ℃ (140-149 ℉)
Feed Pressure 1.4-7 bar (20-100 psi)
Fe Content <0.01 ppm
pH Range 4-11
Oil Content <0.2 ppm
Typical Module Performance
Parameter Performance
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 65 ℃ (149 ℉)
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >16 MΩ·cm

*Voltage required depends on module size

The information provided contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
