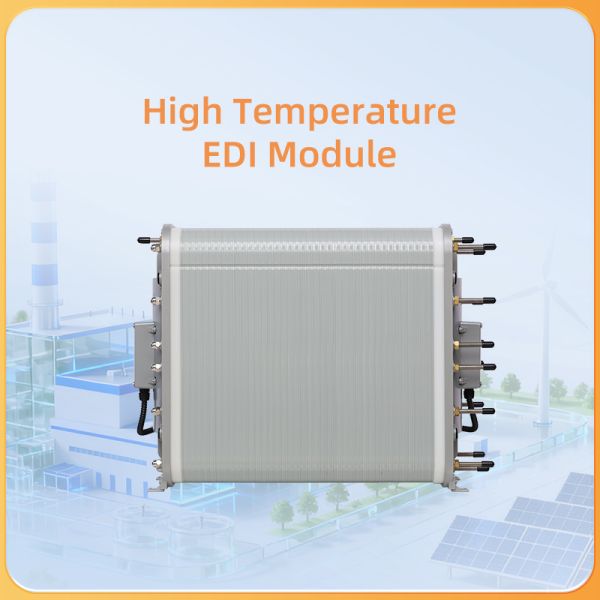

Continuous Electrodeionization High Temperature EDI Module For Condensate Polishing Treatment
Continuous Electrodeionization High Temperature EDI Module For Condensate Polishing Treatment
Specifications
Connection type :
1/4 inch NPT
Dimensions :
300 x 150 x 100 mm
Material :
High-grade polymer and stainless steel
Application :
High temperature water purification
Flow rate :
0.5 to 5 L/min
Electrical consumption :
50 W
Operating temperature range :
Up to 85 °C
Weight :
2.5 kg
Certification :
FDA，EU，CE，RoHS，REACH
Maintenance interval :
Every 12 months
Product name :
High Temperature EDI Module
Conductivity range :
0.1 to 18 MΩ·cm
Membrane type :
Ion-exchange membranes
Place of Origin :
China
Maximum pressure :
6 bar
Power supply :
24 V DC
Brand Name :
Aquacells
Model Number :
EIMD-50CP
PH range :
2 to 11
Description
EIMD-50CP Condensate Polishing Module with 16 MΩ·cm Resistivity Using Continuous Electrodeionization for 90-95% Recovery
EIMD-CP Modules

The Aquacells EIMD-CP module is developed to replace mixed bed technology for condensate polishing treatment. The module utilizes continuous electrodeionization (EDI) technology to produce water with a resistivity exceeding 16 MΩ·cm without the need for shutdown and regeneration.

Feed Water Specifications
Feed Water Source Condensate water
Temperature 60-65 ℃ (140-149 ℉)
Feed pressure 1.4-7 bar (20-100 psi)
Fe <0.01 ppm
pH 4-11
Oil <0.2 ppm
Typical Module Performance
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 65 ℃ (149 ℉)
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >16 MΩ·cm

*Voltage required depends on module size

*The information provided in this brochure contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
