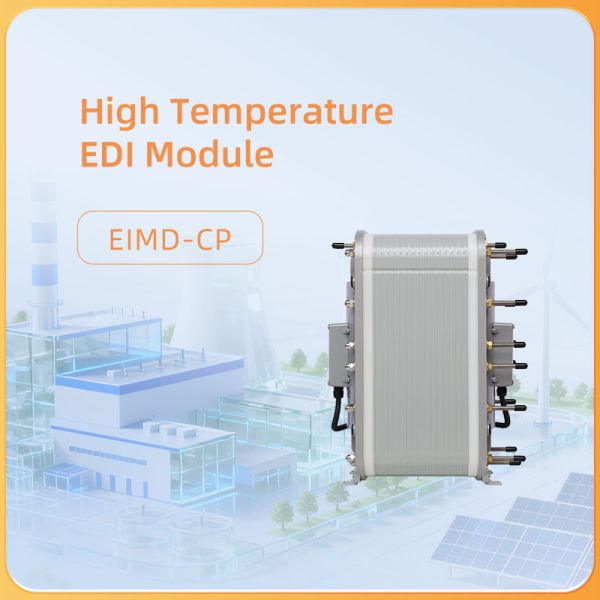

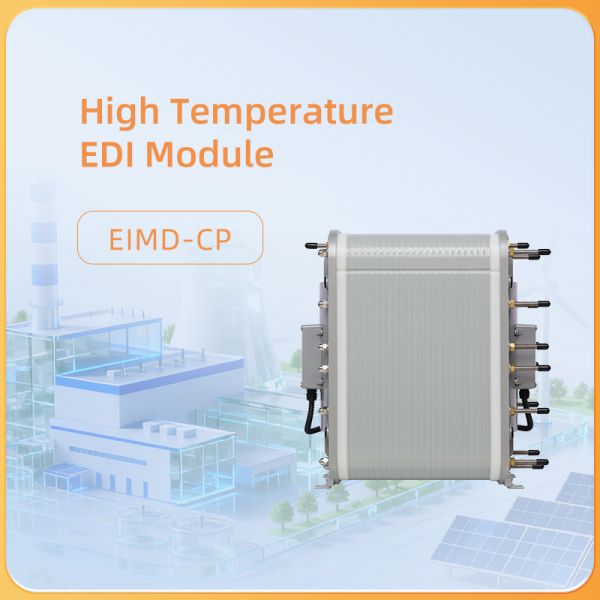

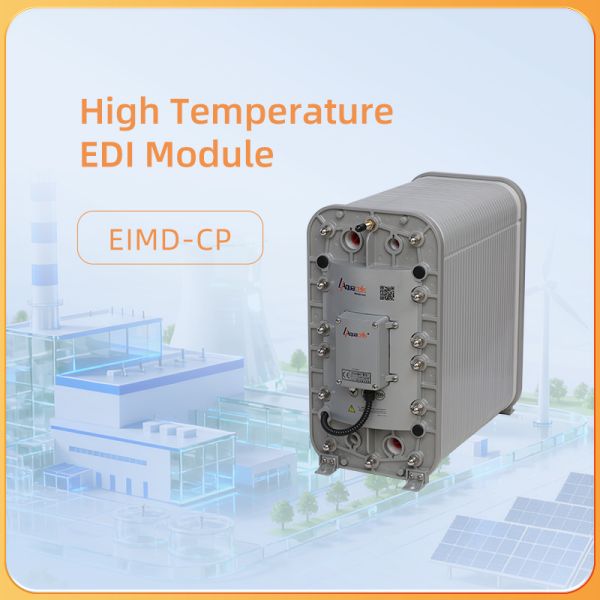

EIMD-20CP High Temp EDI Module Water Purification Condensate Polishing Module
EIMD-20CP High Temp EDI Module Water Purification Condensate Polishing Module
Specifications
Warranty period :
12 months
Brand Name :
Aquacells
PH operating range :
2 to 11
Electrical conductivity removal :
Up to 99%
Model Number :
EIMD-20CP
Product name :
High Temperature EDI Module
Flow rate :
0.5 to 3.0 m³/h
Application :
High temperature water purification in industrial processes
Weight :
15 kg
Power supply :
220 V/50 Hz
Salt rejection rate :
Greater than 99%
Place of Origin :
China
Material :
High-grade polymer and titanium electrodes
Operating temperature range :
Up to 95°C
Water recovery rate :
Up to 85%
Certification :
FDA，EU，CE，RoHS，REACH
Maximum pressure :
6 bar
Dimensions :
500mm x 300mm x 200mm
Maintenance interval :
Every 6 months
Description
EIMD-20CP Condensate Polishing Module With 16 MΩ*Cm Resistivity And 90-95% Recovery Using Continuous Electrodeionization

The Aquacells EIMD-CP module is engineered to replace mixed bed technology for condensate polishing treatment. Utilizing continuous electrodeionization (EDI) technology, this system produces water with resistivity exceeding 16 MΩ*cm without requiring shutdown and regeneration cycles.

Feed Water Specifications
Parameter Specification
Feed Water Source Condensate water
Temperature 60-65 ℃ (60-65 ℉)
Feed Pressure 1.4-7 bar (20-100 psi)
Fe Content <0.01 ppm
pH Range 4-11
Oil Content <0.2 ppm
Typical Module Performance
Parameter Specification
Typical Recovery 90-95%
Maximum Feed Pressure 7 bar (100 psi)
Maximum Feed Temperature 65 ℃ (149 ℉)
DC Voltage* 0-300 V
DC Amperage 0-6 A
Product Resistivity >16 MΩ·cm
*Voltage required depends on module size
*The information provided contains general descriptions or performance characteristics that may not always apply as described in actual use cases or may change due to further product development. An obligation to provide the respective characteristics shall only exist if expressly agreed upon in the terms of the contract.
