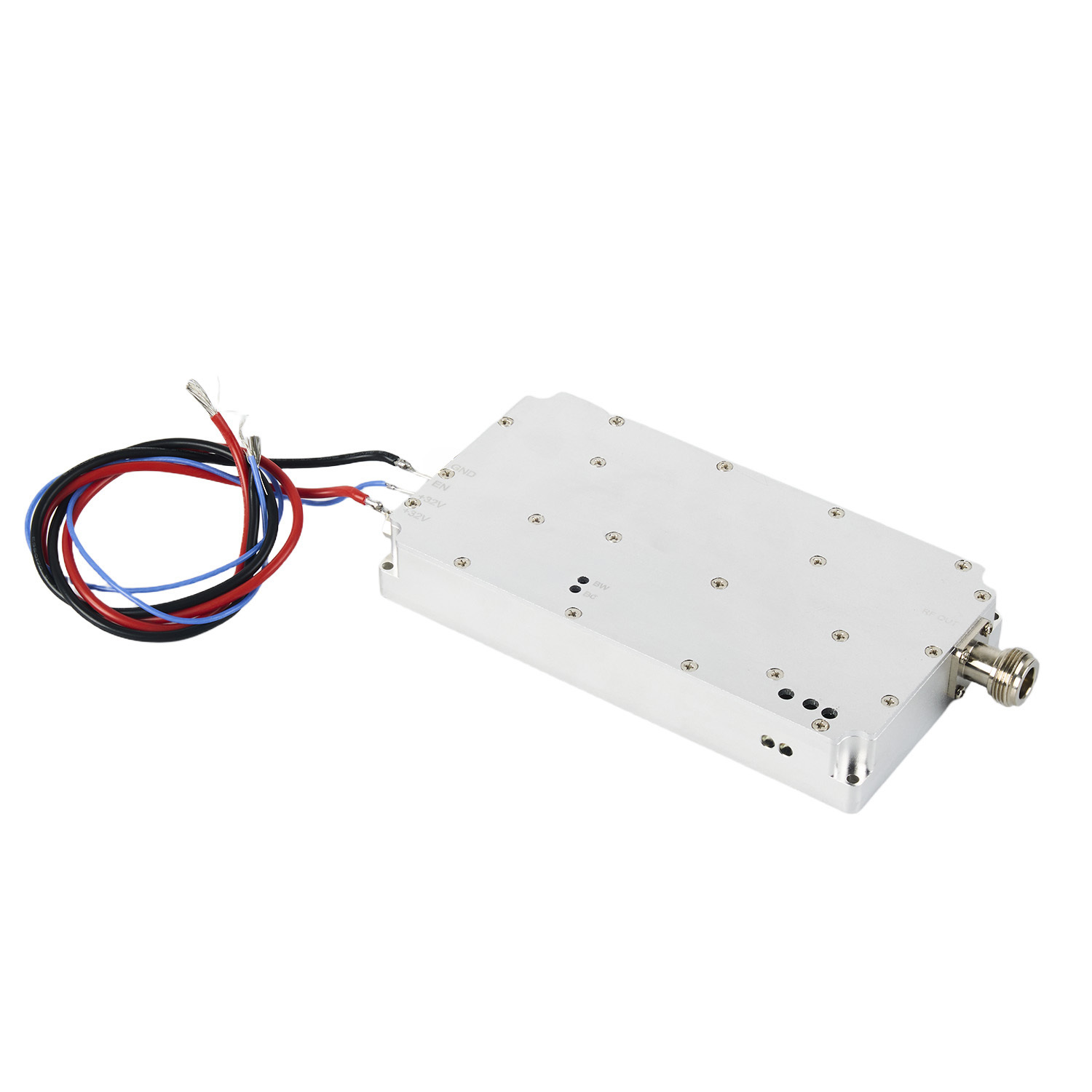

High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
Specifications
Model Number :
RAH
Working Voltage :
28V
Price :
$65/pc--$165/pc
Packaging Details :
Carton box
Dimension :
130*58*18 mm
Payment Terms :
T/T
Working Temperature :
-20～+65℃
Place of Origin :
China Mainland
Output Power (Max) :
≥47 dBm
Delivery Time :
7-10 working days
Brand Name :
Roviyno
Frequency Range :
Customized
MOQ :
100
LED indicator :
Yes
Supply Ability :
<500 pcs 10 working days
Description
High-Power GaN 50W 100W Anti-Drone RF Frequency Range Amplifier Module

High-performance narrowband and broadband RF power amplifier modules built with advanced solid-state technology (LDMOS & GaN) in Class A / Class A/B configurations. Designed for AM, FM, VHF, and UHF applications with output power from low levels up to 50 dBm and beyond. Custom frequency and power solutions available.

Product Highlights

  • Ultra-Wide Frequency Range — Covers 100 MHz to 7.2 GHz for full-spectrum anti-drone coverage
  • Flexible Frequency Customization — 5725–5850 MHz standard band freely adjustable to any required frequency
  • Tunable Parameters — Adjustable bandwidth and GaN voltage for precise performance optimization
  • Full ODM/OEM Service — Design customization, sample production, and rapid engineering support
  • Quick Turnaround — Delivery within 3–10 working days after payment confirmation
  • Multiple Payment Methods — T/T, Western Union, PayPal, Credit Card accepted
  • Worldwide Logistics — Express shipping via DHL / UPS / FedEx / TNT or sea freight to any destination
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100WHigh Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100WHigh Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W
50W Module Technical Datasheet
RF DATA
Item Spec. Remarks
Working Voltage 28V 24-28V
Working current ≤ 4.2A Output 50W
Analog sweeping speed 120 KHz/ 8μ/s Customize
Output Power (Max) 47±1 dBm 50W
Gain 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
VSWR Protection Internal circulattor Customize
Temperature Protection 75℃ Customize
No-load Protection Yes Customize
Enable control Customize 3-28V
Input Signal Source Built-in high-speed noise modulation signal source
Output VSWR ≤2
High Low Temperature test Temperature -20～+65℃ Working properly
Gain Stability ±2 dB At -20℃～+65℃
Power stability ±2 dB At -20℃～+65℃
Power supply Port Positive and negative (Optional: Enable control wire)
Shell Material Aluminum With polish processing
RF output connector SMA-K
Dimension 112*37*16 mm Or Customize
Screw Size M2.5
Weight 230g Customize
Frequencies Optional
No. Frequency Range Output Power PA Technology Isolator Dimensions (mm)
50W VCO RF Power Amplifier Module
1 20–100 MHz 50W SiMOS No 117×58×16
2 100–200 MHz 50W SiMOS No 117×40×18 / 117×58×16
3 200–300 MHz 50W SiMOS No 117×40×18 / 117×58×16
4 300–400 MHz 50W GaN No 117×40×18 / 117×58×16
5 300–400 MHz 50W LDMOS Yes 130×58×18
6 300–400 MHz 50W GaN Yes 130×58×18
7 400–500 MHz 50W GaN Yes 117×40×18 / 117×58×16
8 500–600 MHz 50W GaN Yes 117×40×18 / 117×58×16
9 600–700 MHz 50W GaN Yes 117×40×18 / 117×58×16
10 700–840 MHz 50W GaN Yes 117×40×18 / 117×58×16
11 840–1020 MHz 50W GaN Yes 117×40×18 / 117×58×16
12 1000–1300 MHz 50W GaN Yes 117×40×18 / 117×58×16
13 1300–1500 MHz 50W GaN Yes 117×40×18 / 117×58×16
14 1550–1650 MHz 50W GaN Yes 117×40×18 / 117×58×16
15 1700–1900 MHz 50W GaN Yes 117×40×18 / 117×58×16
16 1900–2100 MHz 50W GaN Yes 117×40×18 / 117×58×16
17 2400–2500 MHz 50W GaN Yes 117×40×18 / 117×58×16
18 2575–2690 MHz 50W GaN Yes 117×40×18 / 117×58×16
19 3100–3800 MHz 50W GaN Yes 117×40×18 / 117×58×16
20 3800–4800 MHz 50W GaN Yes 117×58×16
21 4800–5000 MHz 50W GaN Yes 117×58×16
22 5100–5300 MHz 50W GaN Yes 117×58×16
23 5300–5700 MHz 50W GaN Yes 117×58×16
24 5700–5850 MHz 50W GaN Yes 117×58×16
25 5900–6200 MHz 50W GaN Yes 117×58×16
High Power GaN Anti Drone RF Frequency Range Amplifier Module 50W 100W

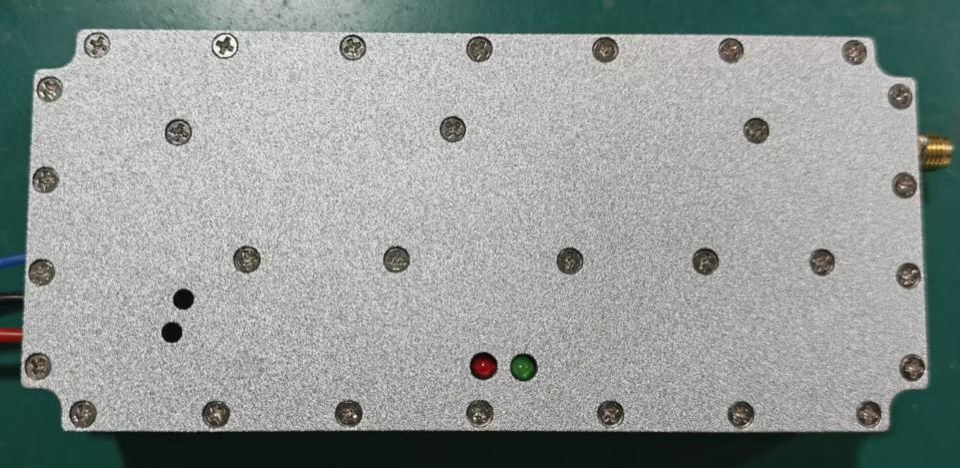

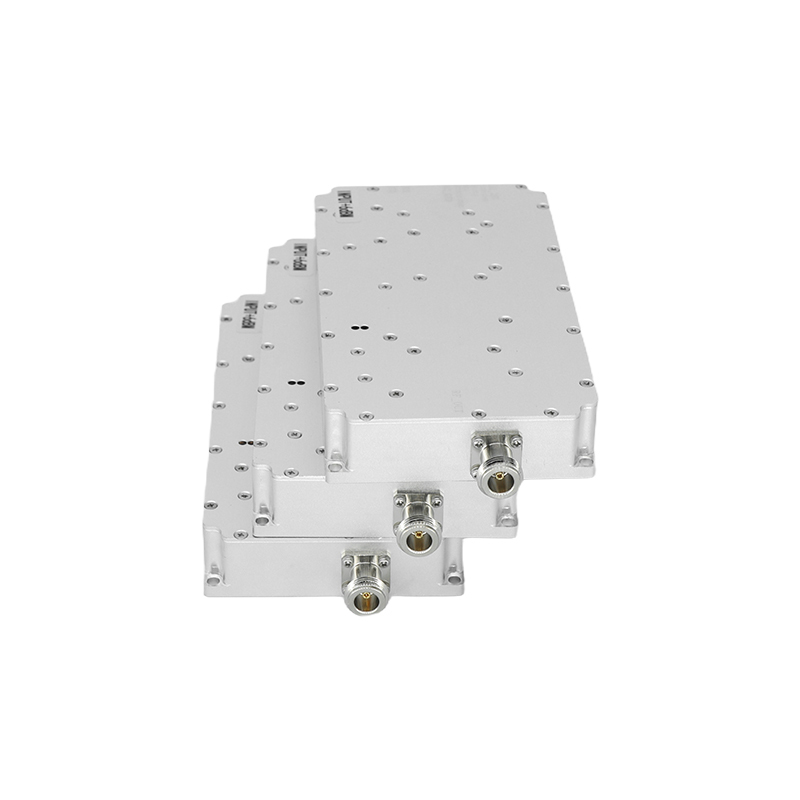

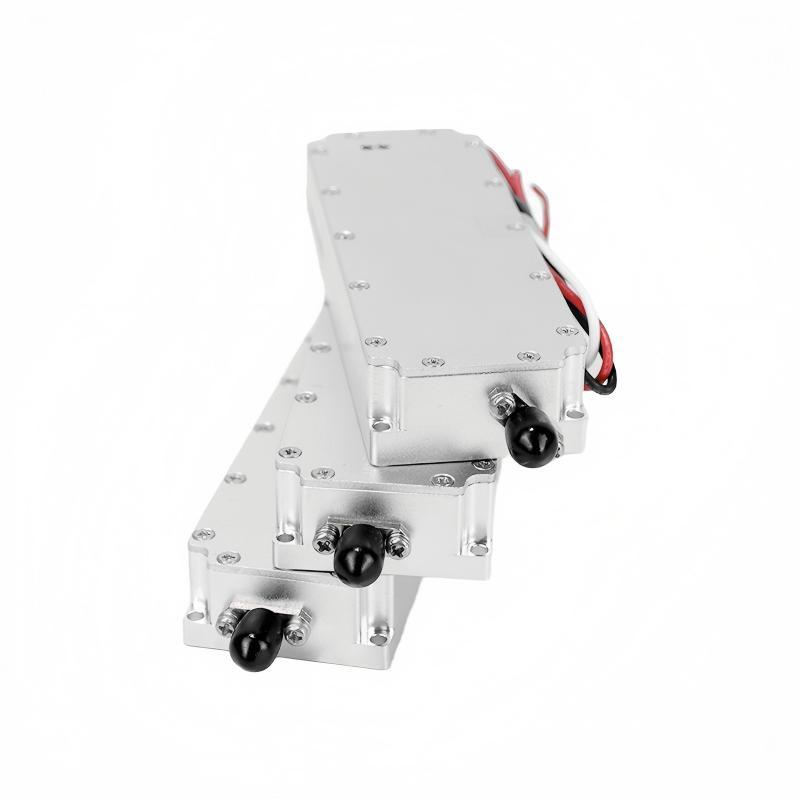

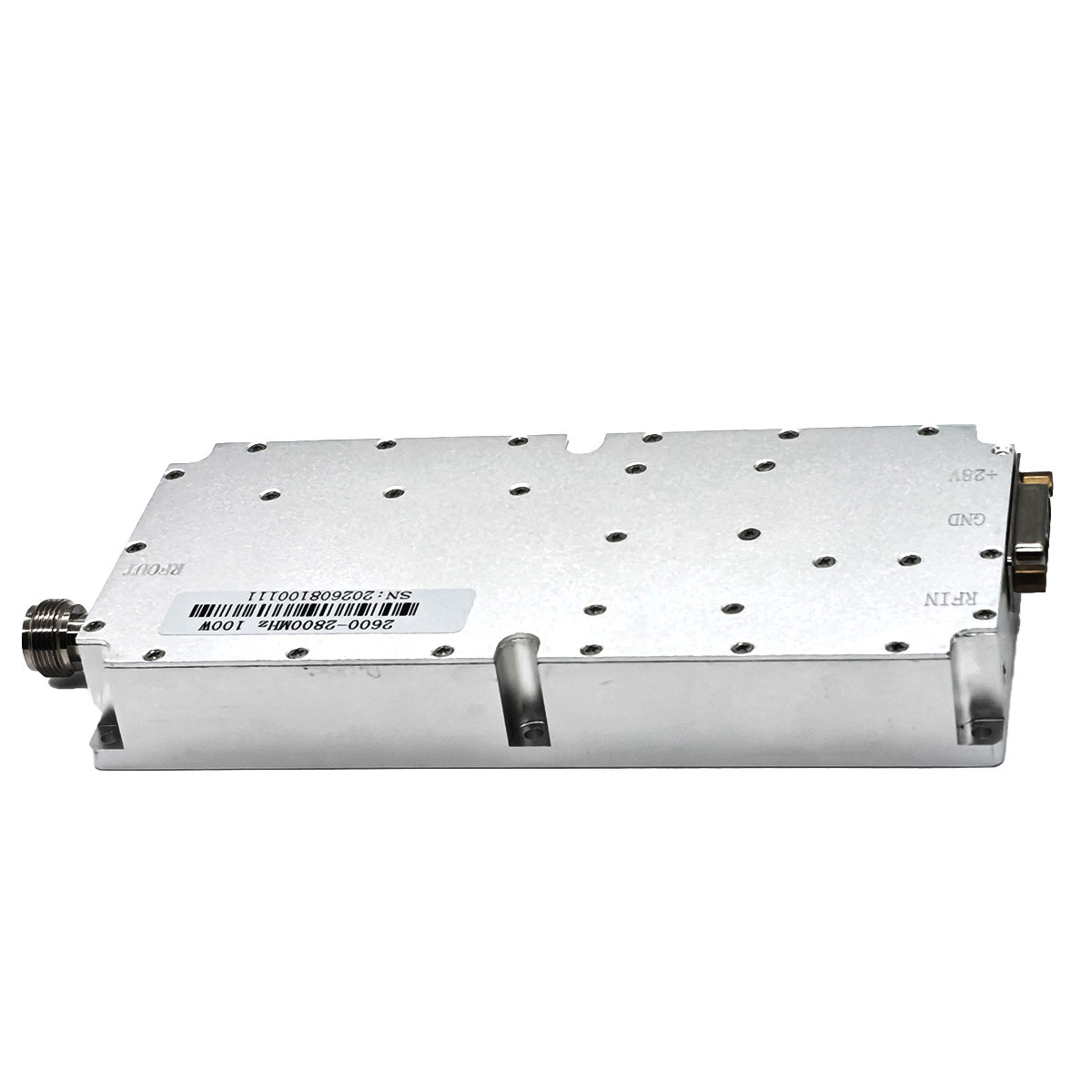

Product images
