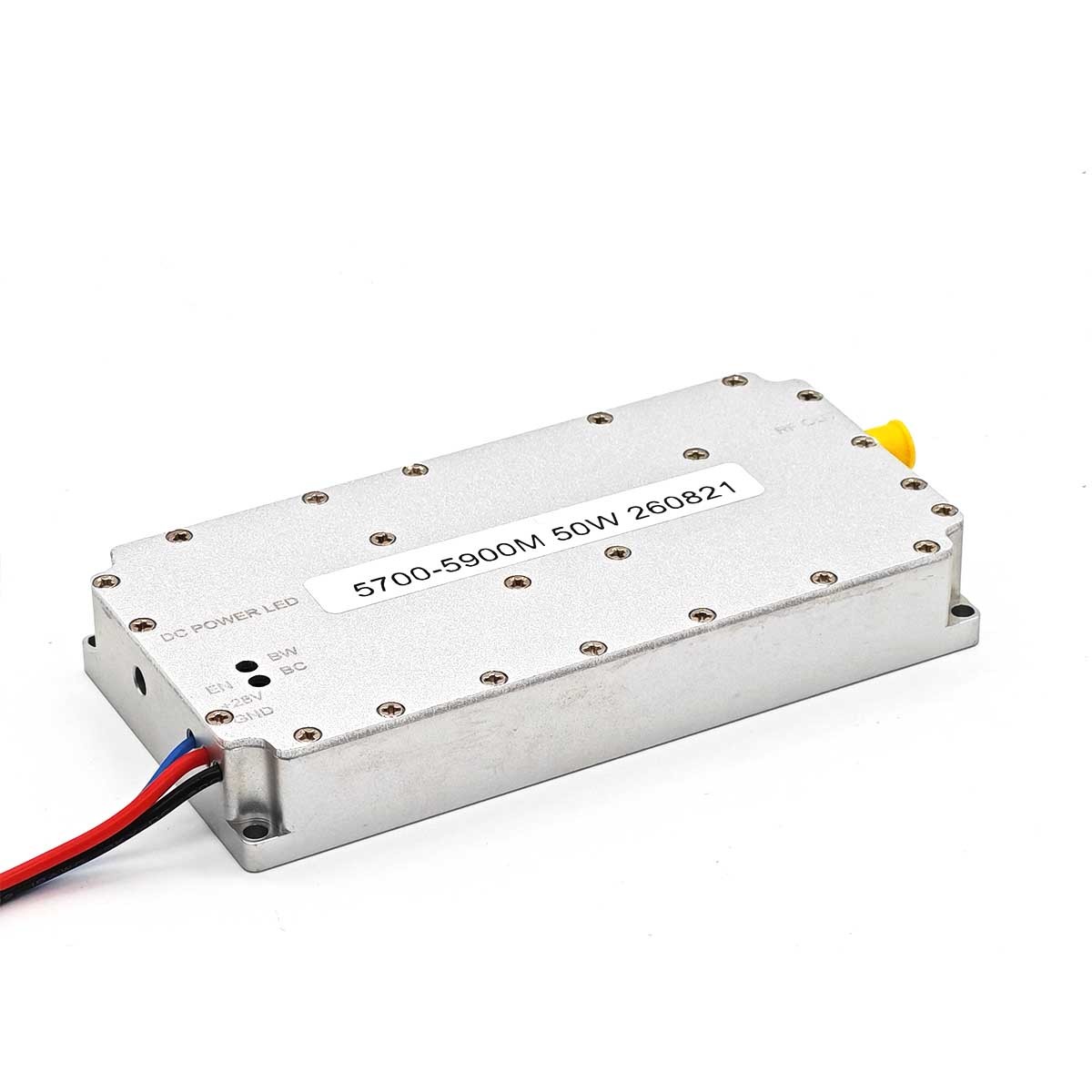

2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming
Specifications
Delivery Time :
7-10 working days
Indicator light :
Yes
Model Number :
RAH
Analog sweeping speed :
50 KHz-300K Customizable
Payment Terms :
T/T
Working Temperature :
-20～+65℃
Supply Ability :
<500 pcs 10 working days
Output VSWR :
≤2
MOQ :
100
Output Power (Max) :
≥47 dBm
Packaging Details :
Carton box
Working Voltage :
24-30V
Brand Name :
Roviyno
Frequency Range :
300-1500MHz, 1500-3000MHz, 4000-6000MHz
Price :
$65/pc--$165/pc
Ripple in Band :
47±1 dB
Description
2.4GHz 5.8GHz 50W Anti Drone Module RF GaN Signal Blocking Device Uav Fpv Jamming System PA Amplifier
1. Product Description

The premium Power Amplifier Module (PA Module) is a compact, high-performance solution engineered for continuous, reliable power amplification in demanding environments. This PA Module delivers ultra-wideband frequency coverage, rapid transmit/receive switching, and robust output power stability, making it ideal for both professional and industrial use. With advanced features such as gain temperature compensation, automatic level control (ALC), and comprehensive protection circuits, the module ensures optimal performance, safety, and longevity. Its lightweight aluminum alloy construction and remote/local controllability make integration easy and efficient for RF, audio, and custom amplification needs.

2. Features
  • Ultra-wideband frequency coverage
  • Continuous wave operation
  • High-speed transmit/receive switching
  • Stable and reliable power
  • Local and remote control
  • Small size and light weight

3. FUNCTIONAL DESCRIPTION

* Features gain temperature compensation;
* Features automatic level control (ALC);
* The amplifier can operate normally in a 4:1 output VSWR scenario;
* Features temperature detection and over-temperature protection;
* Features output VSWR detection and VSWR protection;
* Features amplifier current detection and overcurrent protection;
* Features output power detection and overpower protection;

50W Module Technical Datasheet
Item Spec. Remarks
Frequency Range Customized Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 120K(default) 50 KHz-300Kcustomizable
Output Power (Max) ≥ 47 dBm 50W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Customize 3-28V
EN switch frequency 10000 times Switching time interval ≥ 3S
Output VSWR ≤2
High Low Temperature test Working Temperature -20～+65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Working current ≤6A @+28V dc； CW output 50W
Power supply Port Positive and negative lines 24-28V; GND
Assembly execution standard IPC-A-610 Class 1
Design execution standard SJ 20668-1998
RF output connector SMA-Female
Green LED indicator light CD Power ON/OFF When the power supply voltage is normal, it lights up, and when the power is turned off, it turns off
Blue LED indicator light RF Power ON/OFF Turn off when the output power is less than 5-10dBm, and turn on when the output power is normal
Red LED indicator light Temperature alarm indicator light temperature is above 100 degrees, it lights up but does not turn off the PA
Working life 10000 hours The temperature of the chamber during operation shall not exceed 65 ℃
Dimension 130*58*18 mm
Installation Dimension 125*53*18 mm
Screw Size 4-Ø3.20 mm
Weight 280
