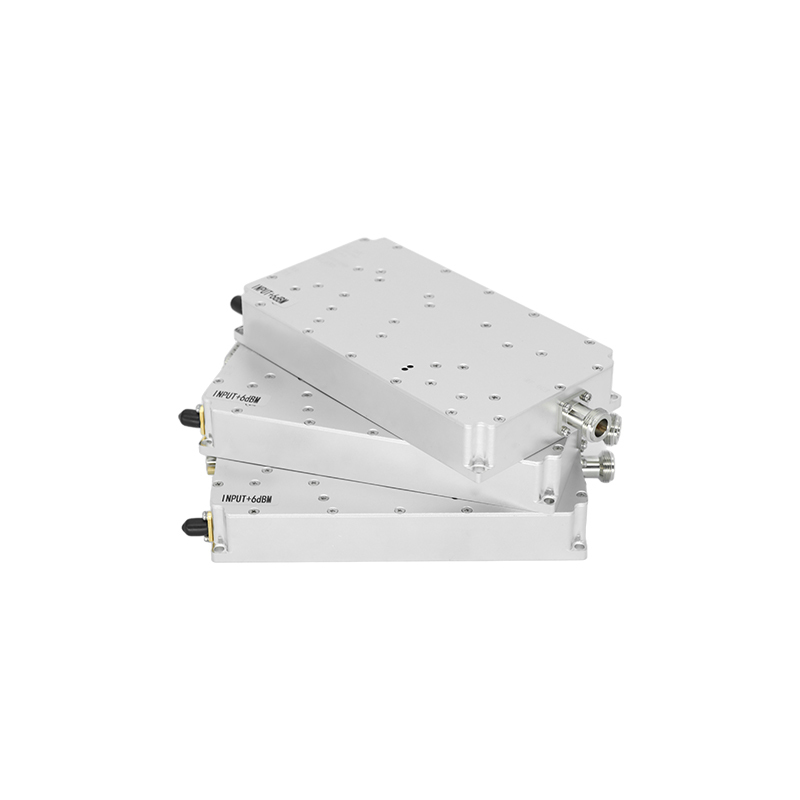

100W 1800-2000MHz GaN RF Power Amplifier Module High Power FPV UAV Suppressor Wide Band
100W 1800-2000MHz GaN RF Power Amplifier Module High Power FPV UAV Suppressor Wide Band
Specifications
Model Number :
PAH100W-18002000
Saturated Output Power :
100W
MOQ :
1~99
Delivery Time :
5-8 Days
Nominal Operating Voltage: :
28V DC(Wide voltage compatibility: 24~30V DC)
Overall Dimension: :
L×W×H 175mm×80mm×26mm(Excluding RF connector)
Price :
154~150
Operating Current: :
≤8A (100W output power)
Certification :
CE
In band Gain Ripple: :
≤3.0dB
Supply Ability :
5000
RF Output Connector :
N-type head
Brand Name :
Roviyno
Frequency Range: :
1800-2000 (Bandwidth adjustable by ±10MHz)
Packaging Details :
Carton
Place of Origin :
China
Anti-burnout Load VSWR Tolerance: :
6:1
Payment Terms :
T/T
Operating Temperature: :
-40℃ ~ +55℃
Description

100W 1800-2000MHz GaN RF Power Amplifier Module High Power FPV UAV Suppressor Wide Band

100W is a high-performance wideband GaN RF power amplifier module developed for RF signal amplification, anti-drone countermeasure systems and industrial wireless equipment. Built with gallium nitride semiconductor technology, this 100W RF amplifier delivers stable continuous-wave output, high power efficiency and outstanding thermal stability, which makes it a core component for portable and fixed C-UAS solutions.

100W 1800-2000MHz GaN RF Power Amplifier Module High Power FPV UAV Suppressor Wide Band

100W 1800-2000MHz GaN RF Power Amplifier Module High Power FPV UAV Suppressor Wide Band

100W 1800-2000MHz GaN RF Power Amplifier Module High Power FPV UAV Suppressor Wide Band

100W 1800-2000MHz GaN RF Power Amplifier Module High Power FPV UAV Suppressor Wide Band

Environmental & Interface Specifications

Parameter Description
Operating ambient temperature -25 ～ +55 ℃
Operating temperature Over-temperature protection: Auto shutdown at +85 ℃, auto recovery when temperature drops to 65 ℃
Relative humidity 5% ~ 95% , non-condensing
Storage temperature -40 to +85 ℃
Built in signal Built in signal source
RF Output Type-N Connector

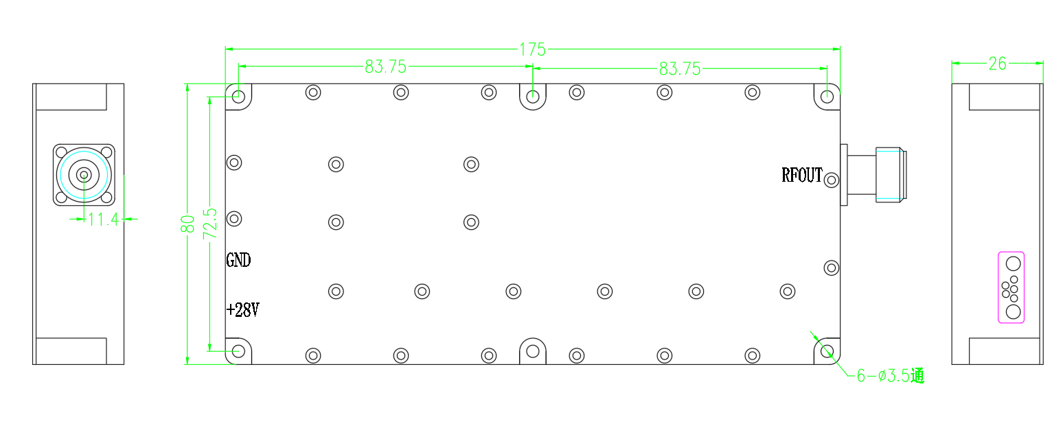

Outline Dimensions

100W 1800-2000MHz GaN RF Power Amplifier Module High Power FPV UAV Suppressor Wide Band
