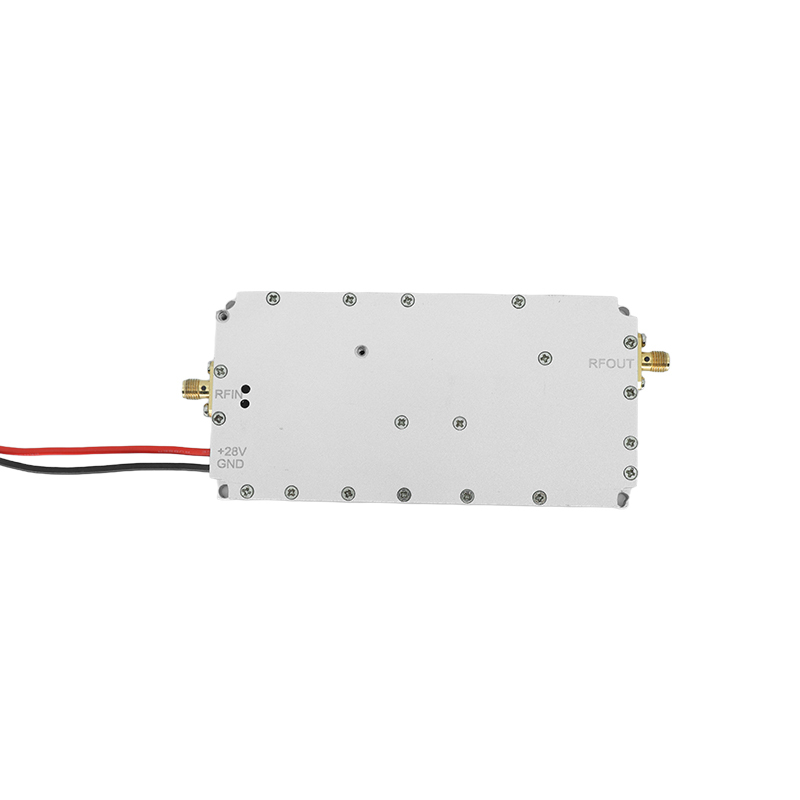

50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module
50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module
50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module
50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module
50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module
50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module
50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module
50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module
Specifications
Payment Terms :
T/T
Operating Temperature: :
-20℃ ~ +65℃
RF Output Connector :
SMA-Female (RF OUT port)
Model Number :
PBZ50W-57006000
Max RF Output Power: :
≥47dBm (50W)(Under CW continuous wave operation)
MOQ :
2
Delivery Time :
5-8 Days
Nominal Operating Voltage: :
28V DC(Wide voltage compatibility: 24~30V DC)
Mounting Reference Dimension: :
112mm×53mm×18mm Benchmark size for installation
Price :
113.5~110
Operating Current: :
≤5A @28V DC (Test condition: 30W CW output)
Certification :
CE
Max Total Gain: :
47±1dB(Total gain of RF chain)
Supply Ability :
5000
Overall Dimension: :
L×W×H 117mm×58mm×18mm
Net Weight: :
230g (Excluding external cables)
Brand Name :
Roviyno
Frequency Range: :
5700~6000MHz (Bandwidth adjustable by ±10MHz)
Packaging Details :
Carton
Mounting Hole Spec: :
4 × Φ3.20mm
Place of Origin :
China
Output VSWR: :
≤2(Matching requirement for RF output port)
Description

50W 5700-6000MHz RF PA Module GaN Anti Drone Module/RF Power Amplifier Module

50W RF Power Amplifier Module covering 5700-6000MHz frequency range. Designed for professional anti-drone systems and RF applications, this GaN RF amplifier module delivers reliable performance with OEM and ODM customization support, including 10W-200W power levels and 100MHz-8GHz frequency ranges.

Designed for drone jammer systems in tactical and security settings, itutlizes GaN technology for high output and stable energy delivery. Whether disabing real-time video feds or preventing remote conto access, this module provides efective UAV dsruption wth selectable powerlevels to ftany operational requirement from portable jammers to high-power installations

50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module

50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module

50W RF Power Amplifier Module 5700-6000MHz RF PA GaN Anti Drone Module

Electrical Performance Index

Item

Spec.

Remarks

Working voltage

28V

24-28V

Working current

≤ 4-5A

Output 50W

Output power (Max)

47±1dBm

50W

Gain (Max)

45±1dB

Ripple in band

≤ 3 dB

Enable control

Customize

3-28V

Input power

≤ 0-5dBm

Input VSWR

≤2

Output VSWR

≤2

High Low

Temperature test

Temperature

-20～+65℃

Working properly

Gain Stability

±2 dB

At -20℃～+65℃

Power stability

±2 dB

At -20℃～+65℃

Power supply Port

Positive and negative

Customized

Shell Material

Aluminum

With polish processing

RF input connector

N-K

Or SMA-K

RF output connector

SMA-K

Dimension

200*95*27mm

Customized

Weight

890G

Customized

Screw Size

M2.5

Installation

Heatsink

Need to be installed

Outline Dimensions
