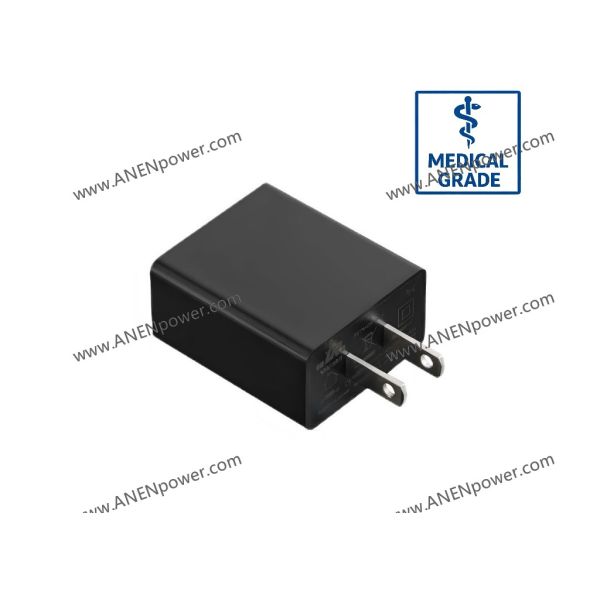

6W Medical Wall-Plug AC/DC Adapter: 5V 1.2A Ultra-Safe Power Solution

Product Overview

The 6W Medical Wall-Plug AC/DC Adapter is a compact, clinical-grade power solution specifically engineered for the reliability and safety demands of modern patient monitoring and diagnostic devices. Delivering a stable 5V 1.2A output, this adapter is the premier power choice for Handheld Monitoring Devices, Bedside Vital Signs Sensors, and Digital Healthcare Hubs.

Built to the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). It provides double-layered reinforced insulation and an ultra-low leakage current design, ensuring absolute safety for patients and clinicians during continuous monitoring. Its miniaturized wall-plug form factor is optimized for space-constrained clinical settings and home-care environments, providing a secure and interference-free link between the power grid and sensitive digital electronics.

Key Specifications

Our 6W medical series maximizes patient protection while offering a versatile range of voltage outputs to suit various medical device architectures.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 6W Continuous Maximum.

• Standard Output: 5V 1.2A (Optimized for USB-powered monitoring logic and digital sensors).

• Other Available Outputs:

  • 5V 1A

  • 9V 0.6A

  • 12V 0.5A

  • 15V 0.4A

  • 24V 0.25A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Home Healthcare Standard: Certified to IEC 60601-1-11 (Safety for home-use medical equipment).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety.

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring long-term durability for continuous monitoring.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 6W medical-grade output is optimized for high-sensitivity monitoring and therapeutic electronics:

• Monitoring Devices: Portable pulse oximeters, handheld blood pressure monitors, and bedside telemetry hubs.

• Diagnostic Sensors: Electronic stethoscopes, handheld ECG recorders, and smart wearable trackers.

• Therapy Equipment: Low-power TENS Therapy Units and clinical Therapy Units.

• Rehabilitation: Portable massage controllers and micro Rehabilitation Devices.

• Home Healthcare: Automated health tracking stations and remote patient monitoring (RPM) gateways.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical or home-care use.

• Sensor-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive physiological data and analog-to-digital conversions.

• Ultra-Compact Design: Specifically engineered for portability without compromising medical isolation distances (Creepage & Clearance).

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
