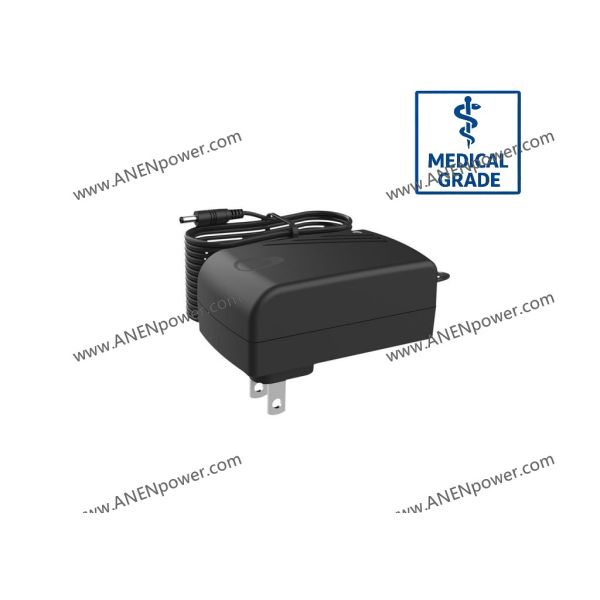

18W Medical-Grade High-Reliability Power Adapter: 9V 2A Precision Solution

Product Overview

The 18W Medical-Grade Power Adapter is a precision-engineered energy solution specifically designed for the stringent safety and performance requirements of the healthcare industry. Delivering a stable 9V 2A output, this unit is the premier choice for Small LCD Medical Displays, Portable Diagnostic Instruments, and Patient Monitoring Devices that require absolute electrical isolation and consistent signal integrity in clinical environments.

Certified to meet global medical safety standards (IEC 60601-1), the adapter features an advanced 2xMOPP (Means of Patient Protection) design and ultra-low leakage current. Built with medical-grade flame-retardant materials and a high-spec thermal management system, it ensures 24/7 continuous, mission-critical reliability for life-science and healthcare deployments.

Key Specifications

Our medical series is built for patient safety and electromagnetic compatibility, offering a standardized platform for professional healthcare hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Input).

• Total Output Power: 18W Continuous Maximum.

• Output Voltage & Current Range:

  • 24V Series: 24V 0.75A (18W Max - Optimized for Medical Sensors)

  • 15V Series: 15V 1.2A (18W Max - For Clinical Diagnostic Tools)

  • 12V Series: 12V 1.5A (18W Max - For Patient Monitors & Modems)

  • 9V Series: 9V 2A (18W Max - Precision Output for Small LCD Displays)

  • 5V Series: 5V 3A (15W Max - For Handheld Healthcare Devices)

• Medical Safety Standard: Fully compliant with IEC/EN/ANSI/AAMI 60601-1 (3.1 Edition).

• Patient Protection: 2xMOPP (Double Means of Patient Protection) rated.

• Leakage Current: < 100µA (Ensuring maximum safety for patient-contact equipment).

• Connector Type: Fixed DC Cable or Custom Medical-Grade Locking Connector.

• Energy Efficiency: Fully compliant with Level VI standards.

• Ripple & Noise: < 100mVp-p (Typical) – Ensuring flicker-free display performance and clean sensor data.

• MTBF (Reliability): > 100,000 Hours, designed for heavy-duty 24/7 clinical operation.

Ideal Applications

The 18W medical precision output is optimized for high-reliability healthcare systems:

• Medical Displays: Small LCD bedside monitors, diagnostic imaging screens, and nursing station tablets.

• Diagnostic Tools: Portable blood analyzers, electronic thermometers, and handheld ultrasound devices.

• Patient Monitoring: Pulse oximeters, digital blood pressure monitors, and respiratory therapy sensors.

• Laboratory Equipment: Compact centrifuges, smart incubators, and automated pipetting systems.

• Home Healthcare: Professional-grade nebulizers, CPAP accessories, and smart health-tracking hubs.

Professional Safety & Reliability Suite

• Patient-Centric Safety: Engineered with a 2xMOPP isolation architecture, providing the highest level of protection against electrical shock in patient-care areas.

• Clinical-Grade Reliability: Boasting an MTBF of over 100,000 hours, this unit is built with premium medical-spec internal components to withstand constant use in hospital environments.

• Advanced EMI Suppression: Specifically designed to minimize electromagnetic interference with sensitive medical sensors and wireless communication equipment (WiFi/Bluetooth).

• Stable Display Output: Advanced regulation circuitry ensures a flicker-free 9V supply, protecting delicate LCD controller boards and maintaining clear visual diagnostic data.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery features.
