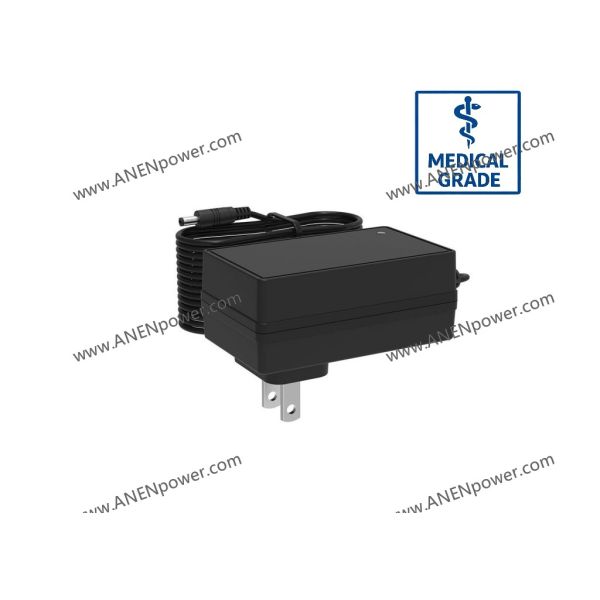

36W Medical Wall-Plug AC/DC Adapter: 24V 1.5A Ultra-Safe Power Solution

Product Overview

The 36W Medical Wall-Plug AC/DC Adapter is a high-precision, clinical-grade power solution specifically engineered for the rigorous safety and performance demands of life-critical medication delivery. Delivering a stable 24V 1.5A output, this adapter is the dedicated power source for Volumetric Infusion Pumps, Syringe Pumps, and Enteral Feeding Systems.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). It provides double-layered reinforced insulation and an ultra-low leakage current design, ensuring absolute safety for patients even when the device is connected to invasive vascular access. Its compact, wall-plug form factor is optimized for busy clinical environments and home-care settings, providing a secure and interference-free link between the power grid and sensitive infusion electronics.

Key Specifications

Our 36W medical series maximizes patient protection while ensuring the consistent torque required for high-accuracy peristaltic and syringe drivers.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 36W Continuous Maximum.

• Standard Output: 24V 1.5A (Optimized for motorized infusion drivers and clinical actuators).

• Other Output Options: 12V 3A, 15V 2.4A, 18V 2A.

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care and bedside environments.

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime for continuous therapy.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 36W medical-grade output is optimized for high-performance infusion and therapeutic electronics:

• Infusion Systems: Volumetric infusion pumps, micro-syringe pumps, and enteral feeding controllers.

• Therapy Equipment: Automated wound therapy (NPWT) units and clinical Therapy Units.

• Rehabilitation: Professional-grade mobile Rehabilitation Devices.

• Respiratory Care: Control logic for high-flow portable nebulizers and CPAP therapy systems.

• Patient Monitoring: Multi-parameter monitors and bedside telemetry hubs.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Precision Motor Drive: Specialized filtering to ensure Low Ripple & Noise, preventing electronic artifacts from affecting the micro-controllers that govern flow rate accuracy.

• Home-Healthcare Ready: Compliant with IEC 60601-1-11, the specific standard for medical equipment used in home environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
