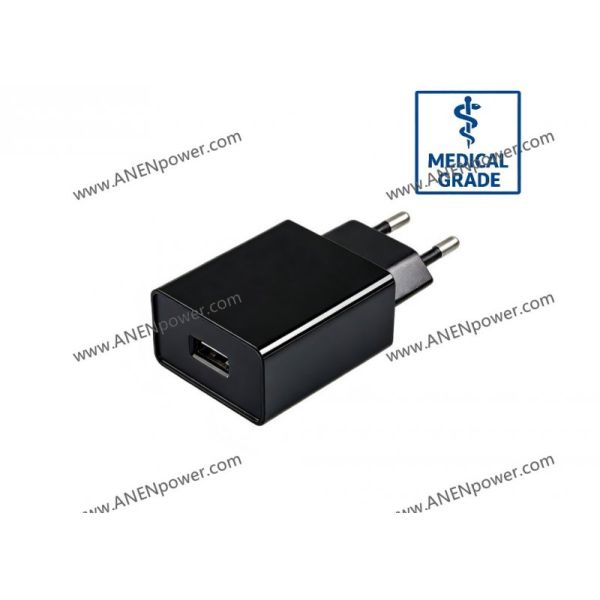

5W Medical Wall-Plug AC/DC Adapter: 5V 1A Ultra-Safe Power Solution

Product Overview

The 5W Medical Wall-Plug AC/DC Adapter is an ultra-compact, clinical-grade power solution specifically engineered for the reliability and safety demands of mobile and home-use medical electronics. Delivering a stable 5V 1A output, this adapter is the premier power choice for Portable Healthcare Devices, Digital Thermometers, and Micro-Parameter Sensors.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). It provides double-layered reinforced insulation and an ultra-low leakage current design, ensuring absolute safety for patients even in direct contact with the device. Its miniaturized wall-plug form factor is optimized for modern portable medical kits and remote patient monitoring (RPM) systems, providing a secure and interference-free link between the power grid and sensitive digital electronics.

Key Specifications

Our 5W medical series maximizes patient protection while providing a lightweight, energy-efficient power source for compact clinical devices.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 5W Continuous Maximum.

• Standard Output: 5V 1A (Optimized for USB-powered medical logic and sensors).

• Other Available Outputs:

  • 9V 0.5A

  • 12V 0.4A

  • 15V 0.3A

  • 24V 0.2A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Home Healthcare Standard: Certified to IEC 60601-1-11 (Safety for home-use medical equipment).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety.

• Plug Types: Available in US/EU/UK/AU fixed or interchangeable wall plugs.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring long-term durability for mobile healthcare.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 5W medical-grade output is optimized for low-power, high-sensitivity healthcare electronics:

• Portable Healthcare Devices: Digital thermometers, blood glucose monitors, and handheld pulse oximeters.

• Diagnostic Sensors: Electronic stethoscopes, handheld ECG recorders, and smart wearable monitors.

• Therapy Equipment: Low-power TENS Therapy Units and clinical Therapy Units.

• Rehabilitation: Portable massage controllers and micro Rehabilitation Devices.

• Remote Monitoring: Gateway hubs for Remote Patient Monitoring (RPM) and home health trackers.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical or home-care use.

• Sensor-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive physiological data and digital conversions.

• Ultra-Compact Design: Specifically engineered for portability without compromising medical isolation distances (Creepage & Clearance).

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
