Composite Customized 35mm2 50mm2 UV Resistant Electrical Waterproof Solar Jumper Wire Electric Battery Solar PV Cable

Introduction:

High-Temperature Solar Cables for Hot Climate Efficiency
Maximize energy yield in high-heat regions with our +120°C Rated PV Cables. Featuring advanced XLPO (Cross-Linked Polyolefin) insulation, these cables maintain dielectric strength and flexibility even in extreme thermal environments. Reduce derating losses and voltage drops with conductors rated 25°C higher than conventional PV wires – essential for boosting ROI in sunbelt markets.

PV Solar cable specification:

Advantages:

• Toxic Fume Elimination: Halogen-free composition prevents corrosive acid gas release in fires.

• Low Smoke Density: < 60% transmittance (IEC 61034) ensures visibility during evacuation.

• Self-Extinguishing: Passes IEC 60332 vertical flame tests.

• Reduced Corrosion Risk: Protects expensive inverters and monitoring systems.

• Compliance Mastery: Meets EN 50618, NFPA 70 (NEC® 690.31), and UKCA standards.

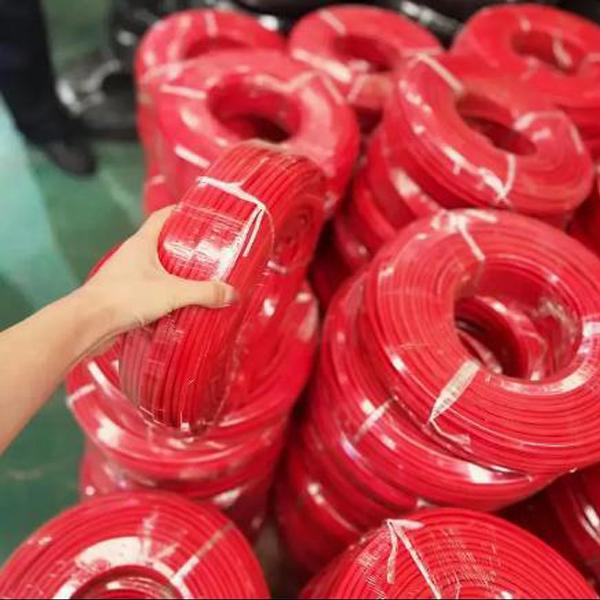

Packaging: 100 meters/roll. Or packed on wooden drum, as per customer’s requirements.
HS Code: 8544492100

Characteristics:
Ambient temperature: 60℃
Max. conductor working temperature : 120℃
Rated temperature: -40~90℃
Rated Rating: DC:1/1.8KV AC: 0.6/1KV
Rated Current: 33~57A 41~98A
Weathering Resistance: Sun Resistant

Application:

Solar cables are intented for use in photovoltaic power supply systems and similar applications as free hanging, movable, fixed installation and buried in ground in constructional covered systems. The cables can be used indoor, outdoor, in hazard explosion areas, in industry and agriculture. They are suitable for applications in equipment with protective insulation

• Commercial buildings (warehouses, offices, malls).

• Residential rooftop PV systems.

• Solar carports and charging stations.

• Indoor DC cabling in utility rooms.

• Fire-sensitive environments (schools, hospitals).

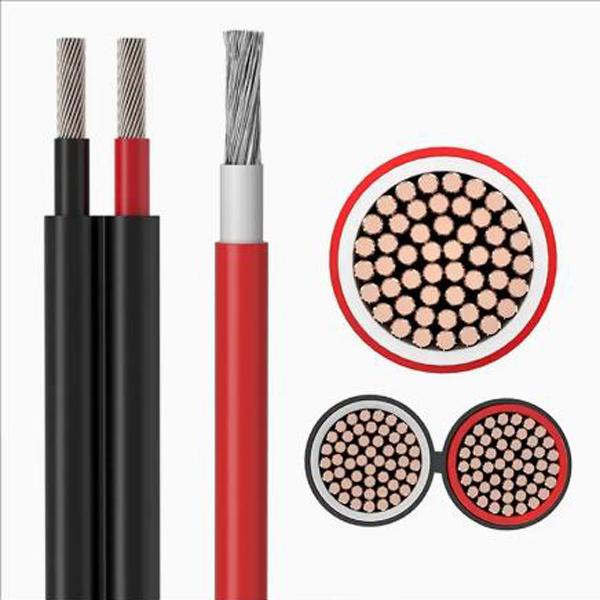

Cable Construction:

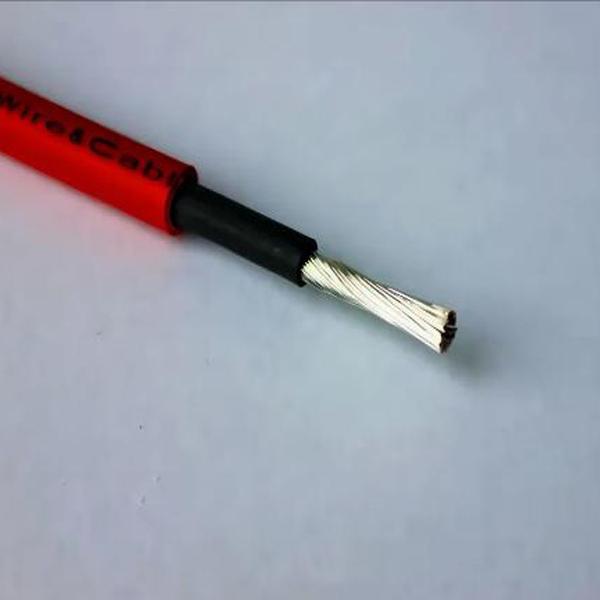

Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Back , Red or Natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black, Red

Q & A:

1. Rated voltage

A.C. 0.6/1KV

D.C. 1500V

Max. voltage D.C. 1.8kv

2. Permissible ambient temperature

-40°C up to +90°C

3. Max. conductor temperature

at normal operation 120 °C

at short/circuit operation 200 °C

4. The min. Bending radius

4XD ( Note: D is for overall diameter of cable)

5. The min. thermal life

25 years

6. Free halogen, flame retardant

7. Weathering resistant, UV resistant, ozone erosion resistant, anti-penetration

Why Choose Us?

Anti-static compounds prevent dust accumulation

Memory-free coiling characteristics eliminate kinking

High-visibility coloration enhances worksite safety

Abrasion-resistant surfaces withstand concrete drag

Power your solar projects with unbreakable reliability! Request a FREE sample of our TÜV-certified PV cables today and experience superior performance firsthand.
