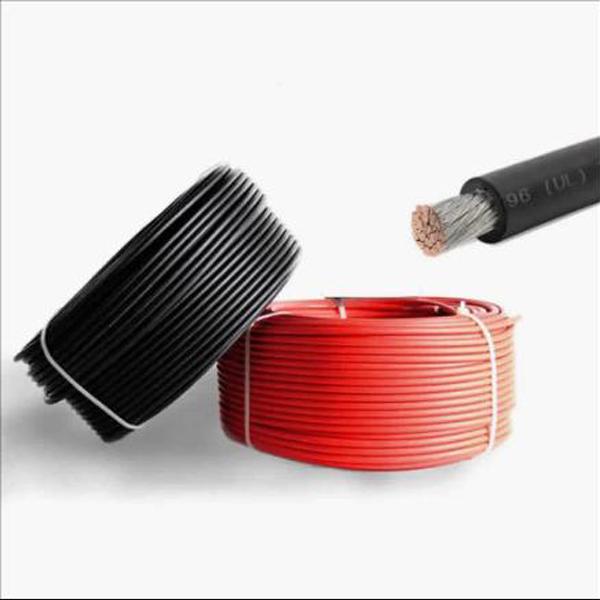

XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations
XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations
XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations
XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations
XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations
XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations
XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations
XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations
Specifications
Brand Name :
Sanwu
Model Number :
Solar cable
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
100 meters/roll 2 rolls/carton
Conductor :
Copper
Insulating Material :
XLPE/Xlpo
Core :
Flexible Cable
Cable Specification :
2.5-185mm2
Color :
Black and red
Application :
Solar Station
Description

High-Performance Photovoltaic Cables

Introduction

As a premier solar cable manufacturer, we engineer cutting-edge Solar PV Cables designed to maximize efficiency and safety in photovoltaic systems. These specialized cables interconnect solar panels, inverters, and combiner boxes, ensuring seamless power transmission under extreme environmental conditions. Certified to international standards (TÜV, UL, EN 50618), our cables feature tinned copper conductors, cross-linked insulation, and advanced UV stabilization for 25+ year lifespans, making them the backbone of resilient solar installations worldwide.

PV Solar cable specification:

Type

Cross

section

Strand

design

Conductor

diameter

Conductor

resistance

Outer

diameter

Rated

voltage

Rated

current

 Weight
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.9 4.5 1000/1800 20 40.69
PV-1*2.5 mm² 2.5 48x ø 0.25 2.0 8.06 5.3 1000/1800 30 54.64
PV-1*4.0 mm² 4.0 56x ø 0.3 2.6 4.97 6.2 1000/1800 50 75.36
PV-1*6.0 mm² 6.0 81x ø 0.3 3.3 3.52 7.2 1000/1800 70 107.17
PV-1*10.0 mm² 10.0 200x ø 0.25 4.4 2.12 8.3 1000/1800 95 161.60
PV-1*16 mm² 16.0 224x ø 0.3 5.2 1.95 9.5 1000/1800 140 225.94
PV-1*25 mm² 25.0 196x ø 0.40 7.40 0.795 12.52 1000/1800 348.51
PV-1*35 mm² 35.0 276x ø 0.40 9.00 0.565 14.44 1000/1800 470.98

Type

Cross

section

Strand

design

Conductor

diameter

Conductor

resistance

Outer

diameter

Rated

voltage

Rated

current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A
PV-2*1.5 mm² 1.5 30x ø 0.25 1.6 13.9 4.5 1000/1800 20
PV-2*2.5 mm² 2.5 48x ø 0.25 2.0 8.06 5.3 1000/1800 30
PV-2*4.0 mm² 4.0 56x ø 0.3 2.6 4.97 6.2 1000/1800 50
PV-2*6.0 mm² 6.0 81x ø 0.3 3.3 3.52 7.2 1000/1800 70
PV-2*10.0 mm² 10.0 200x ø 0.25 4.4 2.12 8.3 1000/1800 95
PV-2*16 mm² 16.0 224x ø 0.3 5.2 1.95 9.5 1000/1800

140

Advantages
Electron-beam cross-linked compounds
UV, ozone and hydrolysis resistant
High temperature resistant, the materials do not melt or flow
Good cold flexibility
Very long service life >25 years at 90℃
Compatible to all popular connectors

Packaging : 100 meters/roll. Or packed on wooden drum, as per customer’s requirements.
HS Code: 8544492100

XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations

Characteristics
Ambient temperature: 60℃
Max. conductor working temperature : 120℃
Rated temperature: -40~90℃
Rated Rating: DC:1/1.8KV AC: 0.6/1KV
Rated Current: 33~57A 41~98A
Weathering Resistance: Sun Resistant

Application

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

XLPE Solar PV Cable 4mm2 to 16mm2 Copper Conductor for Solar Stations

Characteristic:

1. Rated voltage

A.C. 0.6/1KV

D.C. 1500V

Max. voltage D.C. 1.8kv

2. Permissible ambient temperature

-40°C up to +90°C

3. Max. conductor temperature

at normal operation 120 °C

at short/circuit operation 200 °C

4. The min. Bending radius

4XD ( Note: D is for overall diameter of cable)

5. The min. thermal life

25 years

6. Free halogen, flame retardant

7. Weathering resistant, UV resistant, ozone erosion resistant, anti-penetration

Power your solar projects with unbreakable reliability! Request a FREE sample of our TÜV-certified PV cables today and experience superior performance firsthand.
