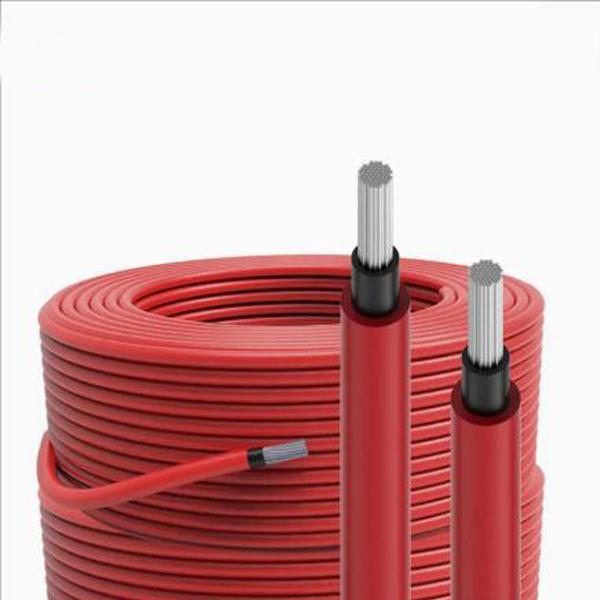

4mm 6mm 10mm Solar PV Panel H1z2z2-K DC Power Wire Photovoltaic Cable

Introduction

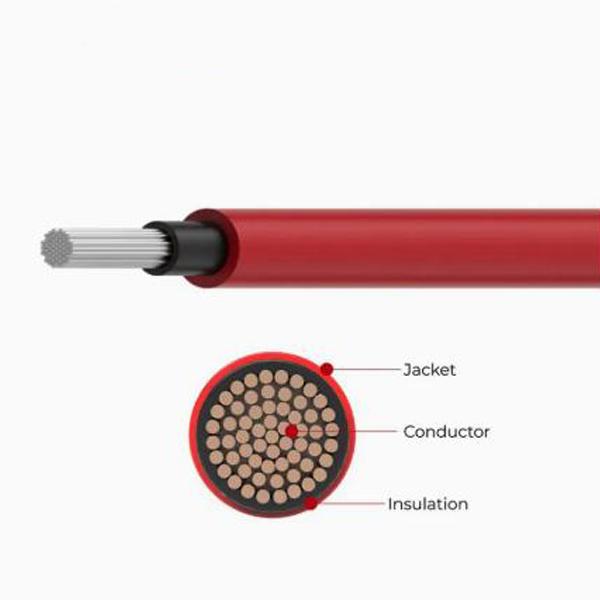

Engineered for relentless sun exposure, our UV-Shielded PV Cables deliver uncompromised performance in deserts, coastal zones, and high-altitude installations. The proprietary triple-extruded insulation combines electron-beam cross-linking with carbon black additives, offering 3x greater UV resistance than industry standards. This ensures decades of service without brittleness, cracking, or insulation breakdown – critical for reducing O&M costs in utility-scale projects.

PV Solar cable specification:

Advantages

• Extended UV Lifespan: Exceeds 250 kLy UV exposure tests (IEC 62788-2).

• Hydrolysis Resistance: Prevents moisture ingress in tropical/coastal climates.

• Abrasion Protection: Robust outer jacket withstands mechanical stress during installation.

• Color Stability: Jet-black outer layer maintains identification clarity for 25+ years.

• RoHS Compliance: Free of lead, cadmium, and heavy metals.

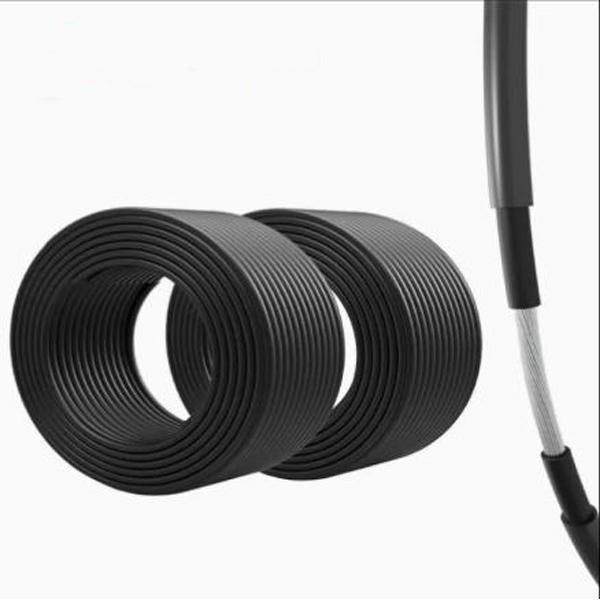

Packaging : 100 meters/roll. Or packed on wooden drum, as per customer’s requirements.
HS Code: 8544492100

Characteristics
Ambient temperature: 60℃
Max. conductor working temperature : 120℃
Rated temperature: -40~90℃
Rated Rating: DC:1/1.8KV AC: 0.6/1KV
Rated Current: 33~57A 41~98A
Weathering Resistance: Sun Resistant

Application

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

• Desert solar farms in MENA regions.

• Coastal power plants with salt spray exposure.

• Alpine solar installations with high UV index.

• Agrovoltaic systems in farmlands.

• Remote off-grid solar stations.

Q & A:

1. Rated voltage

A.C. 0.6/1KV

D.C. 1500V

Max. voltage D.C. 1.8kv

2. Permissible ambient temperature

-40°C up to +90°C

3. Max. conductor temperature

at normal operation 120 °C

at short/circuit operation 200 °C

4. The min. Bending radius

4XD ( Note: D is for overall diameter of cable)

5. The min. thermal life

25 years

6. Free halogen, flame retardant

7. Weathering resistant, UV resistant, ozone erosion resistant, anti-penetration

Why Choose Us

Anti-static compounds prevent dust accumulation

Memory-free coiling characteristics eliminate kinking

High-visibility coloration enhances worksite safety

Abrasion-resistant surfaces withstand concrete drag

Power your solar projects with unbreakable reliability! Request a FREE sample of our TÜV-certified PV cables today and experience superior performance firsthand.
